Slotted flat wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs
thick diameter or double wires to achieve greater resistance to heavy materials.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
LF02
-
Brand Name:
-
Lianfa
-
Delivery Time:
-
Negotiate
-
Wire diameter:
-
0.3mm~14mm
-
Aperture:
-
1mm-152.4mm
-
Tensile Stregth:
-
1600-1800Mpa
-
Weaving type:
-
before curly,weaving,one-way crimp,crimp and intermediate crimp lock
-
Usage:
-
for Sizing irregular and sone difficult material
-
Certification:
-
ISO9001:2008
Quick Details
-
Material:
-
65Mn Steel
-
Type:
-
Weave Wire Mesh
-
Application:
-
Screen
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
LF02
-
Brand Name:
-
Lianfa
-
Delivery Time:
-
Negotiate
-
Wire diameter:
-
0.3mm~14mm
-
Aperture:
-
1mm-152.4mm
-
Tensile Stregth:
-
1600-1800Mpa
-
Weaving type:
-
before curly,weaving,one-way crimp,crimp and intermediate crimp lock
-
Usage:
-
for Sizing irregular and sone difficult material
-
Certification:
-
ISO9001:2008
Product Description
Rectangular slot screens is one of very important wire screening media use for sizing irregular and sone difficult material screening in mining,quarry,aggregate production industries.
Advanced :
The Slot Screen has the greatest possible working surface.
Its use is recommended for the classification of fine products with a high degree of humidity and plasticity.
Its use is recommended for the classification of fine products with a high degree of humidity and plasticity.

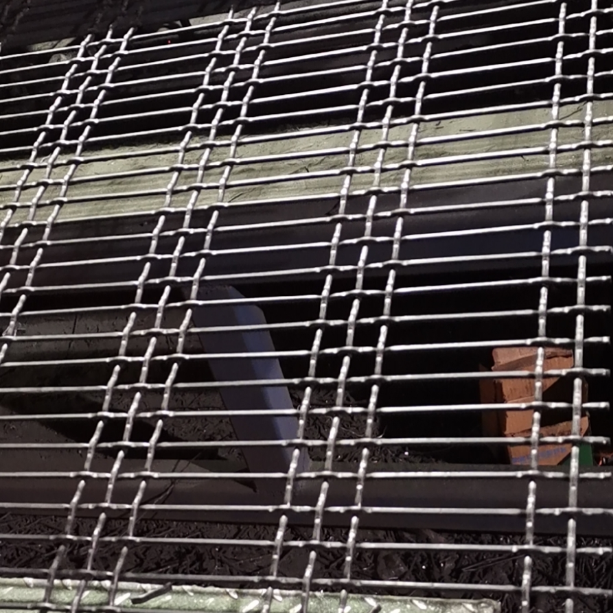

Slot Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise apertures. As such, slot wire mesh has a larger open area, a higher throughout and a better self-cleaning effect than square wire mesh.
1、Both carbon steel and stainless steel wires are available
2、Flat top screens and double crimp screens are available
3、Larger open area and better self-cleaning effect
Slotted flat wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs
thick diameter or double wires to achieve greater resistance to heavy materials.
Slotted crimped wire mesh
Slotted crimped wire mesh
Slotted crimped wire mesh has similar characteristics to the slotted flat wire mesh, but has crimped wires instead of straight
wires, which gives it more rigidity and allows the material to turn and rotate on its surface.
Slotted crimped wire mesh has similar characteristics to the slotted flat wire mesh, but has crimped wires instead of straight
wires, which gives it more rigidity and allows the material to turn and rotate on its surface.
Edge Types
Carbon steel parameter:
|
NO
|
Grade
|
chemical Composition
|
|
|
||
|
|
|
C
|
Si
|
Mn
|
||
|
1
|
45
|
0.42-0.50
|
0.17-0.37
|
0.50-0.80
|
||
|
2
|
50
|
0.47-0.55
|
|
|
||
|
3
|
55
|
0.52-0.60
|
|
|
||
|
4
|
60
|
0.57-0.65
|
|
|
||
|
5
|
65
|
0.62-0.70
|
|
|
||
|
6
|
70
|
0.67-0.75
|
|
|
||
|
7
|
65Mn
|
0.62-0.70
|
|
0.90-1.20
|
||
|
8
|
72A
|
0.70-0.75
|
0.15-0.35
|
0.30-0.60
|
||
