PC-450 Automatic Four Sides Wrapping Machine for Book Cover

PC-450 Automatic Four Sides Wrapping Machine for Book Cover

FOB Reference Price: Get Latest Price

≥1 Sets

US $50000

≥2 Sets

US $45000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 9200*2450*1560 mm

Weight:: 4500 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Function:: forming the cover of book-type box,file,calendar,notebook, book

Production speed:: 20-30pcs/min

Position Precision:: ± 0.5mm

Max Hardcover size:: 1000*500mm

Min Hardcover size:: 160*90mm

Application:: hardcover book,notebook,calendars,files,perfect book cover

Certification:: CE Certificate, EAC

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Pinchuang

Voltage:: 450V 3 phase

Dimension(L*W*H):: 9200*2450*1560 mm

Weight:: 4500 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Function:: forming the cover of book-type box,file,calendar,notebook, book

Production speed:: 20-30pcs/min

Position Precision:: ± 0.5mm

Max Hardcover size:: 1000*500mm

Min Hardcover size:: 160*90mm

Application:: hardcover book,notebook,calendars,files,perfect book cover

Certification:: CE Certificate, EAC

Product Overview

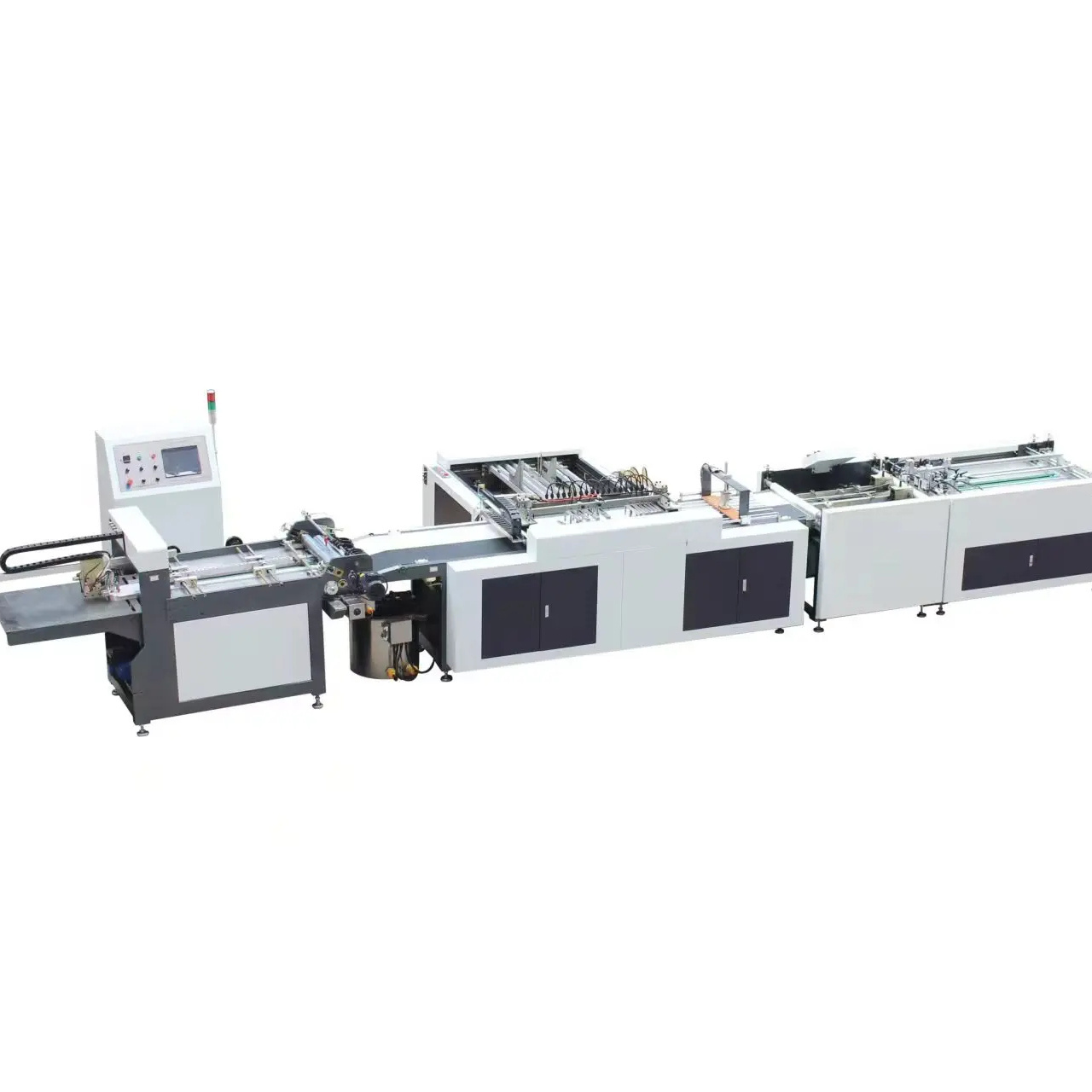

Automatic Case Making Machine PC-450

Automatic Book Cover Making Machine PC-450 adopt the photoelectronic eye sensor for the position correction for book cover and cardboard position. It has high Accuracy. It can do square shape and triangle shape book cover making.
PC-450 is equipped with the world famous brand Panasonic, Delta, Schneider, Omron ,SMC etc parts.Machine is popular selling because of the stability and accuracy.
PC-450 can finish the photo album cover , hardbook cover, lever arch file cover, gift box book type cover and eye shadow cover making.

PRODUCT SPECIFICATIONS

No	Item	Data	Item	Data
1	Paper size	Min 16090mm, Max 1100550mm	Hardcover size	Min 16090mm, Max 1000500mm
2	Paper thickness	100-250g/ ㎡	Air Supply	0.6-0.8Mpa
3	Cardboard thickness	1-4mm	Position precision	±0.5mm
4	Middle Strip Size	10mm	Production Speed	20-30sheets/min

PHOTOELECTRONIC EYE SENSOR

AUTOMATIC PICKING UP & FORMING

AUTOMATIC FEEDING SIMPLE OPERATION
LESS LABOR ONE PERSON HANDLE WELL
FAST PRODUCTION SPEED
FEEDING,GLUING,POSITION,WRAPPING FINISHED AT ONE PRODUCTION LINE
