Quick Details
-
Power:
-
2.2/3.0kw
-
Min. Lifting Height:
-
0.5m
-
Table Size:
-
2400*1450mm
-
Overall Dimensions:
-
2500*1650*1960mm
-
Weight:
-
1900 kg
-
Product name:
-

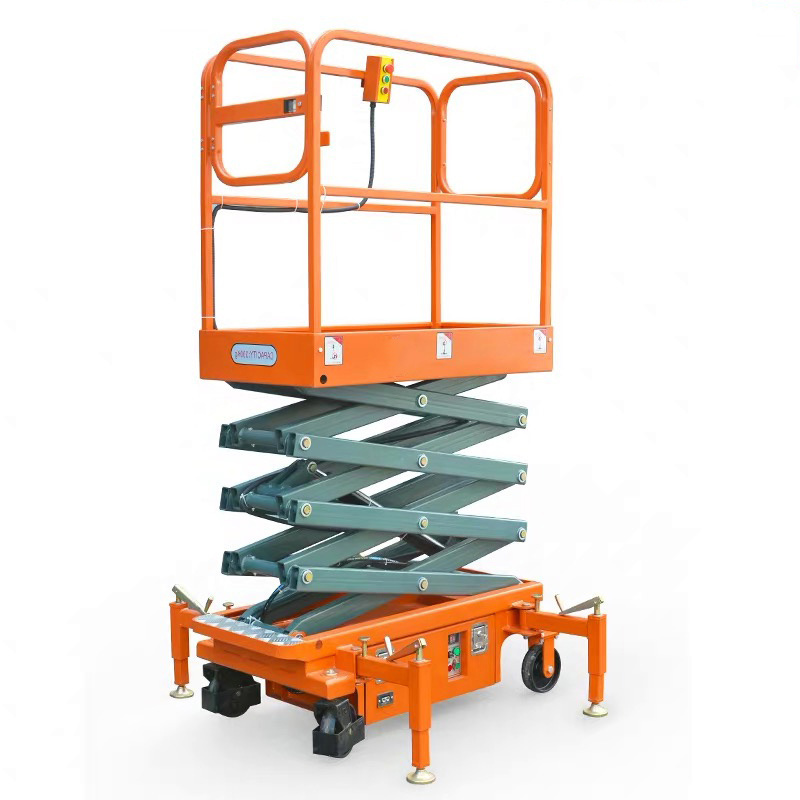

Mobile Electric Hydraulic Scissor Man Lift Platform For Aerial Work
-
Color:
-
As your requirement
-
Voltage:
-
220/380V 50/60hz
-
Moving type:
-
Manual push and pull
-
Material:
-
High-duty steel structure
-
Power source:
-
AC power/ DC battery
-
Control methods:
-
Ground control+air control
-
Working height:
-
13.8m
-
Scissor supporting pole:
-
180*80*5.75mm rectangular tube
-
Rise and fall speed:
-
4-6m/min, fall speed is adjustable
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan
-
Brand Name:
-
Mide
-
Power:
-
2.2/3.0kw
-
Min. Lifting Height:
-
0.5m
-
Table Size:
-
2400*1450mm
-
Overall Dimensions:
-
2500*1650*1960mm
-
Weight:
-
1900 kg
-
Product name:
-
Mobile Electric Hydraulic Scissor Man Lift Platform For Aerial Work
-
Color:
-
As your requirement
-
Voltage:
-
220/380V 50/60hz
-
Moving type:
-
Manual push and pull
-
Material:
-
High-duty steel structure
-
Power source:
-
AC power/ DC battery
-
Control methods:
-
Ground control+air control
-
Working height:
-
13.8m
-
Scissor supporting pole:
-
180*80*5.75mm rectangular tube
-
Rise and fall speed:
-
4-6m/min, fall speed is adjustable
Product Description
Hydraulic Lifting Platform is a kind of lifting equipment with high efficiency and safety. It is widely used for aerial inspection maintenance, decoration, cleaning etc. According to different using environments, different power forms are provided (three-phase alternating current motor, single-phase alternating current motor, direct current motor, explosion-proof motor, internal combustion drive type,etc.).
|
AC Power
|
We suggest this type when the lifting height is 6m and 8m. In the operation, the lift needs to be connected to AC power.
|
|
DC Power
|
We add 4 batteries based on AC. You can charge the batteries and the lift doesn't need to be connected to AC power when working.
The equipment will be moved easily with DC power. |
|
Diesel Power
|
We add diesel motor to the equipment. The equipment will be moved easily with diesel power.
|
Specification
Product Details
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
