Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*3100*200MM
-
Weight (KG):
-
2500
-
Product name:
-
atc cnc router atc tool holder 1325 atc 3 axis wood machine BCM1325D
-
Application:
-
Wood Working
-
Control system:
-
Taiwan Syntec Control System
-
Spindle:
-
Italy HSD atc spindle
-
Working area:
-
1300*2500*200mm
-
Motor:
-
Japan Yaskawa Servo Motor
-
Transmission:
-
Ball Screw Transmission
-
Software:
-
Ucancam / ArtCam/TYPE3/ VCarve/VCarve Pro
-
Table:
-
Vacuum + T-slot table
-
Spindle speed:
-
0-24000RPM
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*3100*200MM
-
Weight (KG):
-
2500
-
Product name:
-
atc cnc router atc tool holder 1325 atc 3 axis wood machine BCM1325D
-
Application:
-
Wood Working
-
Control system:
-
Taiwan Syntec Control System
-
Spindle:
-
Italy HSD atc spindle
-
Working area:
-
1300*2500*200mm
-
Motor:
-
Japan Yaskawa Servo Motor
-
Transmission:
-
Ball Screw Transmission
-
Software:
-
Ucancam / ArtCam/TYPE3/ VCarve/VCarve Pro
-
Table:
-
Vacuum + T-slot table
-
Spindle speed:
-
0-24000RPM

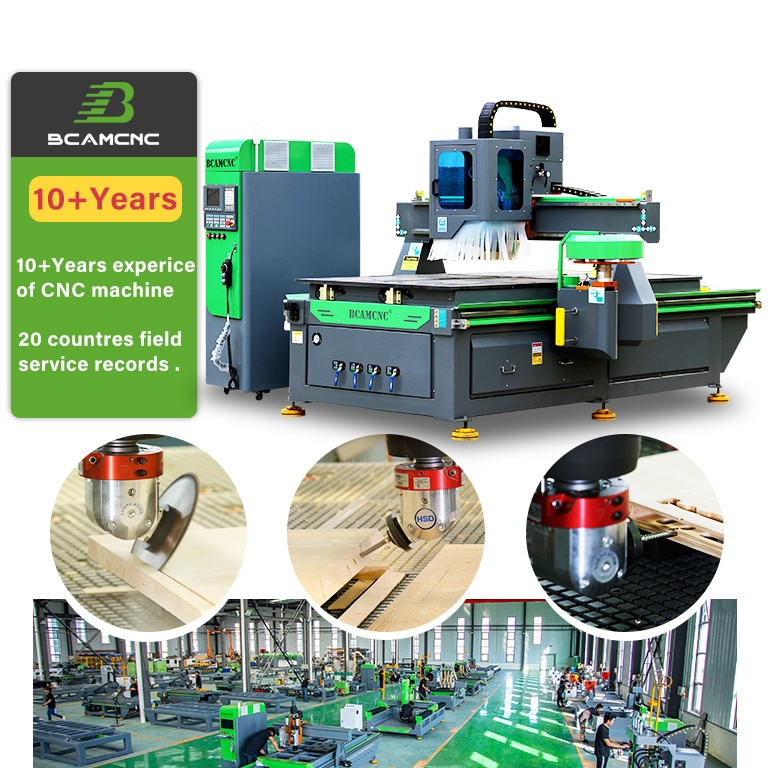

atc cnc router tool holder 1325 3 axis wood machine bcamcnc 1325 cnc router atc
Product Detail
BCM1325E series is a cnc router designed by BCAM for automatic disc changer. This series is more automatic than BCM1325A manual tool change series. It is faster than BCM1325C series tool change, eliminating manual The cumbersome tool change shortens the tool change time and makes the cnc router more precise.
Product parameters
|
Parameters
|
Standard Specifications BCM1325D Plus
|
|
X,Y,Z Working Area
|
1300*2500*200mm|4*8ft
|
|
Optional Working Area
|
1300*1300*200mm|4*4ft
|
|
Optional Working Area
|
1500*3000*200mm|5*10ft
|
|
Optional Working Area
|
2000*3000*200mm|6*10ft
|
|
Optional Working Area
|
2000*4000*200mm|6*13ft
|
|
Optional Working Area
|
2000*6000*200mm|6*20ft
|
|
Spindle Power
|
Italy HSD ES951 9.5kw Air cooling spindle
|
|
Table Surface
|
Vacuum table+T-solt table
|
|
Max. Rapid Travel Rate
|
120m/min
|
|
Max. Working Speed
|
70m/min
|
|
Drive Motors
|
Japanese Yaskawa Servo motor and drivers
|
|
Working Voltage
|
AC380v/50HZ/3 phase
|
|
Command Language
|
G Code
|
|
Operating System
|
Taiwan Syntec 6MB control system
|
|
Interface
|
USB
|
|
Software Compatibility
|
Option:Alphacam/Solidworks/Vcare Pro/Artcam,etc.
|
|
Running Environment
|
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
|
