Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Festar
-
Model Number:
-
WDW-200A
-
Product name:
-
universal tensile testing machine
-
Keyword:
-
universal tensile testing machine
-
MOQ:
-
1
-
Standard:
-
yes
-
Power supply:
-
220V 50HZ
-
Measuring range:
-
200kN
-
Usage:
-
strength testing machine tester
-
Function:
-
Compression Strength
-
Delivery time:
-
3-5 Days
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
no
-
Customized support:
-
no
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Festar
-
Model Number:
-
WDW-200A
-
Product name:
-
universal tensile testing machine
-
Keyword:
-
universal tensile testing machine
-
MOQ:
-
1
-
Standard:
-
yes
-
Power supply:
-
220V 50HZ
-
Measuring range:
-
200kN
-
Usage:
-
strength testing machine tester
-
Function:
-
Compression Strength
-
Delivery time:
-
3-5 Days

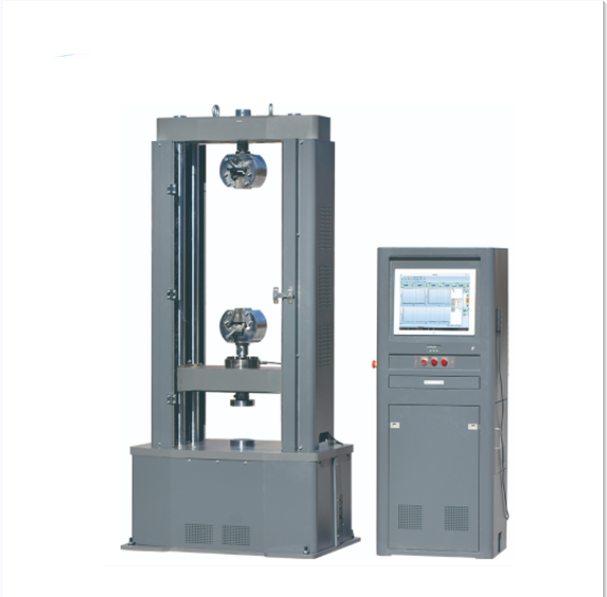

Chinese Manufacturer For Sale Steel Wire Rope Testing Machine Gold And Silver Tensile Tester
Products Description
Chinese Manufacturer For Sale Steel Wire Rope Testing Machine Gold And Silver Tensile Tester
The AC servo system and AC servo motor with high speed regulation accuracy and stable performance are used as the driving system.
The computer data acquisition and processing can realize closed loop control and automatic detection.Extended assembly of other fixtures to complete more tests.
The AC servo system and AC servo motor with high speed regulation accuracy and stable performance are used as the driving system.
The computer data acquisition and processing can realize closed loop control and automatic detection.Extended assembly of other fixtures to complete more tests.
|
Maximum test force
|
200kN
|
|
Accuracy level of testing machine
|
0.5 level
|
|
Test force measurement range
|
0.4%-100%FS
|
|
Deformation measurement range
|
0.2%-100%FS
|
|
Large deformation measurement range (optional accessories)
|
15-1200mm
|
|
The diameter of steel bar
|
1-15mm
|
|
Large deformation resolution
|
0.008mm
|
|
Displacement resolution
|
0.0025mm
|
|
Force control rate adjustment range
|
0.005-5%FS/S
|
|
Deformation rate adjustment range
|
0.02-5%FS /S
|
|
Beam speed adjustment range
|
0.001-600mm /min
|
|
Constant force, constant deformation, constant displacement control range
|
0.5%-100% FS
|
|
Effective stretching space
|
600mm
|
|
Effective test width
|
560mm
|
|
The external size of the host
|
1050×760×2300 (mm)
|
|
External size of control cabinet
|
600×480×1520 (mm)
|
|
Power supply
|
220V±10%, 1.5KW
|
|
Host weight
|
1500kg
|
Details Images
Chinese Manufacturer For Sale Steel Wire Rope Testing Machine Gold And Silver Tensile Tester
Chinese Manufacturer For Sale Steel Wire Rope Testing Machine Gold And Silver Tensile Tester
High Precision Electronic Universal Testing Machine Laboratory Testing Equipment Tensile strength tester utmmachine
More Fixtures To Meet Your Needs---individual procurement
More Fixtures To Meet Your Needs---individual procurement
Our Service
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
