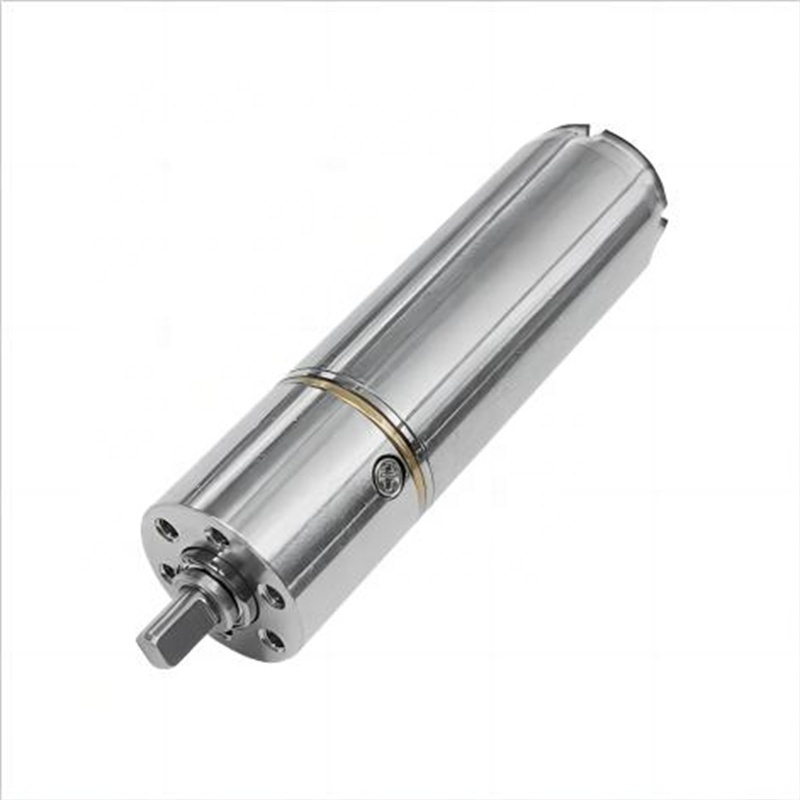

13mm 3.7v coreless motor with gearbox electric tool motor with planetary gear for dental myoelectric prosthesis

13mm 3.7v coreless motor with gearbox electric tool motor with planetary gear for dental myoelectric prosthesis

FOB Reference Price: Get Latest Price

≥2 Pieces

US $70

≥100 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Langyi

Model Number:: 1332RG

Torque:: 22-32 mNm (rated)

Product Name:: portable infusion pumps gear motor

Motor Diameter:: 13mm

Weight:: 27g

MOQ:: 500pcs

Rated Voltage:: 3.7V,5v,7.2v,12V

Application:: dental electrical tools, instrument,myoelectric prosthesis

Motor type:: slotless gear motor

Size:: 13*32 Mm

Keywords:: coreless motor

Feature:: low rpm

Quick Details

Speed(RPM):: 420-700 rpm (rated)

Continuous Current(A):: 0.20-1.27 A

Efficiency:: IE 2

Place of Origin:: Guangdong, China

Brand Name:: Langyi

Model Number:: 1332RG

Torque:: 22-32 mNm (rated)

Product Name:: portable infusion pumps gear motor

Motor Diameter:: 13mm

Weight:: 27g

MOQ:: 500pcs

Rated Voltage:: 3.7V,5v,7.2v,12V

Application:: dental electrical tools, instrument,myoelectric prosthesis

Motor type:: slotless gear motor

Size:: 13*32 Mm

Keywords:: coreless motor

Feature:: low rpm

Motor data	52A	57A	63A
Nominal voltage (V)	3.7	6	12
No load speed (rpm)	11000	11000	12300
Stall torque (mNm)	14.3	10.5	13.3
Reduction ratio	Negotiable

Langyi is dedicated to the R&D and manufacture of high-end coreless motors (Replace Maxon & Faulhaber).We have a strong R&D team and the manufacturing capability. Having a professional coreless motor production line, we are sure to help you build an outstanding efficient transmission system with our technical innovation and customized services. Our micro drive solutions are

widely used in aviation,tools, tattoos, medical, robotics, automation, security door lock, security

door, and other fields, promoting the development of key application systems around the world. With over 10 years' experience in the field of precision coreless motor technology, we have

launched 10 mm ~ 46 mm series, with unparalleled speed torque performance, high power density

brush / brushless dc coreless motor,and constantly meet all kinds of transmission in the field of

industrial control requirements. We have a complete product development network, provide

flexible solutions for a wide variety of industrial automation occasions.

Q1: Are you trading company or manufacturer ? A1: We are the manufacturer with 12 years’ experiences. Q2: What’s your main products ? A2: Dia10-46mm brushed coreless motor,brushless motor,coreless gear motor,built-in drive motor,

servo motor. Q3: What’s the main usage of your products ? A3: Our products are widely used in aviation,tools,medical,robotics,automation, Security doors,

DMS,and other fields.

Q4: Do you accept OEM/ODM ? A4: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we

can make it. Q5: What I need to provide if I want to make a customized order ? A5: Please kindly tell us the voltages,speed,torque and overall dimension. Q6: What if I don’t know the above data ? A6: Please tell us the usage of the product you want, we will give you professional advice. Q7: How about the sample order ? A7: Samples are available. The extra fees due to the model type. Q8: What’s the payment term ? A8: Payment by T/T or Paypal, etc. Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping. Q9: Which shipping way is available ? A9: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea. Q10: How long is the delivery time ? A10: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
