hydraulic stone cracking machine rock splitter for sale

hydraulic stone cracking machine rock splitter for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HENGWANG

Model Number:: HW-550

Dimension(L*W*H):: 450*410*700MM

Warranty:: 1 Year

Certification:: ISO9001

Name:: hydraulic stone cracking machine rock splitter for sale

Function:: splitting stone, rock, concrete, ore

Color:: Yellow

Usage:: hydraulic pump station and splitting machine

Product name:: hydraulic stone cracking machine rock splitter for sale

Model:: HW-550

Keyword:: hydraulic stone cracking machine rock splitter for sale

Control system:: hydraulic pump station

Spindle power:: hydraulic pump station

Quick Details

Application:: Hydraulic Rock Splitter, mining

Power:: 4kw

Place of Origin:: Shanghai, China

Brand Name:: HENGWANG

Model Number:: HW-550

Dimension(L*W*H):: 450*410*700MM

Warranty:: 1 Year

Certification:: ISO9001

Name:: hydraulic stone cracking machine rock splitter for sale

Function:: splitting stone, rock, concrete, ore

Color:: Yellow

Usage:: hydraulic pump station and splitting machine

Product name:: hydraulic stone cracking machine rock splitter for sale

Model:: HW-550

Keyword:: hydraulic stone cracking machine rock splitter for sale

Control system:: hydraulic pump station

Spindle power:: hydraulic pump station

Product Description

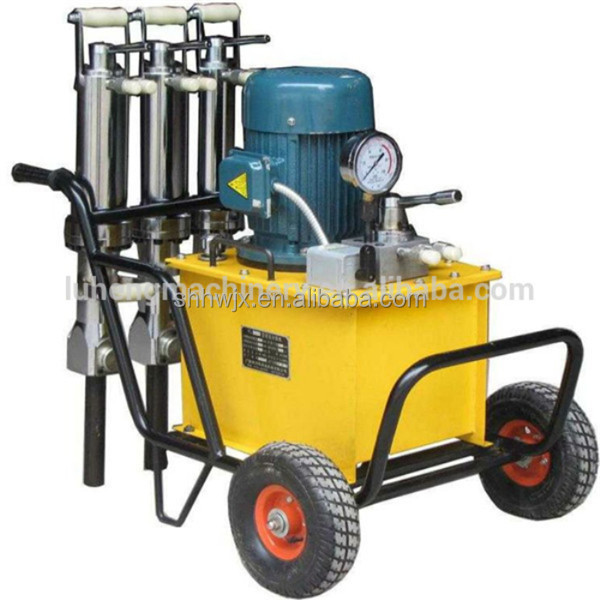

hydraulic stone cracking machine rock splitter for sale

Product Application

hydraulic stone cracking machine rock splitter for sale is used to split rock, stone, wall and concrete construction. It is widely used in mineral mining, civil engineering construction, demolition of buildings, river dredging, etc.

rock splitter gun parameters
model	HW-350	HW-450	HW-550	HW-650	HW-750
drilling diameter	38-42mm	38-42mm	42-46mm	42-46mm	46mm
drilling depth	>350mm	>450mm	>550mm	>650mm	>750mm
crack width	10-30mm
theory splitting force	550T	600T	680T	700T	780T
actual splitting force	400T	450T	480T	500T	600T
splitting time	10-22S
weight	21kg	23kg	26kg	28kg	31kg

hydraulic pump station parameters
engine	electric engine			gasoline/diesel engine
power	1.5kw	4kw	7.5kw	4HP	7HP	10HP
working pressure	55-60Mpa
working flow	3L/min	2-8L/min	13L/min	4L/min	8L/min	13L/min
configurable splitting gun quantity	1-5	2-5	2-10	1-3	3-7	7-10
weight	60kg	100kg	150kg	100kg	130kg	150kg

Main Features

1. Operation:
Easy to learn and use, only one people can operation;HW hydraulic rock splitter has long working life, convenient maintenance, the splitters and power station are easy carrying.
2. Accuracy:
It is difference to traditional demolition methods, HW hydraulic splitter can ensure division direction, shape and size of remove part in advance, thus the division and dismantling are in high precision.
3. Flexibility:
HW hydraulic splitter is compact, light, high split force (maximum can be 500 tons), can work convenience indoor or narrow ground, also can work under the water.

4. Safety:
Hydraulic rock splitter is operated under the static state hydraulic environment. Therefore, that is not like explosion situation, and that will not produce potential danger, so you do not have to adopt the complex safety precautions.

Packing & Delivery

Packaging: 1. Wooden case or as per your requirements.

Shipping: 1. professional goods shipping forwader;
2. port: Shanghai, Qingdao, Dalian, Ningbo.

Delivery: within 3-4 days after receiving the payment
