Quick Details
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Voltage:
-
220V/380V/others
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
12000
-
Machine Name:
-
5 Axis CNC Router 5D, 5 Axis 5D CNC Machine Price
-
Working Area:
-
2000 x 2500 x 1000mm x ±120° x ±245°
-
Table:
-
T-slot / Vacuum
-
Spindle:
-
10kw/15kw
-
Motor:
-
Japan Yaskawa Servo Motor
-
Control System:
-
Italy OSAI or Taiwan SYNTEC
-
Tool Magazine:
-
Disc Type Automatic Tool Changer 8 Tools
-
6th Axis (Option):
-
Rotary Axis
-
Application:
-
3D Mould Mold ; 3D Statue Sculpture
Quick Details
-
Working Table Size(mm):
-
2000×3000
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Voltage:
-
220V/380V/others
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
12000
-
Machine Name:
-
5 Axis CNC Router 5D, 5 Axis 5D CNC Machine Price
-
Working Area:
-
2000 x 2500 x 1000mm x ±120° x ±245°
-
Table:
-
T-slot / Vacuum
-
Spindle:
-
10kw/15kw
-
Motor:
-
Japan Yaskawa Servo Motor
-
Control System:
-
Italy OSAI or Taiwan SYNTEC
-
Tool Magazine:
-
Disc Type Automatic Tool Changer 8 Tools
-
6th Axis (Option):
-
Rotary Axis
-
Application:
-
3D Mould Mold ; 3D Statue Sculpture

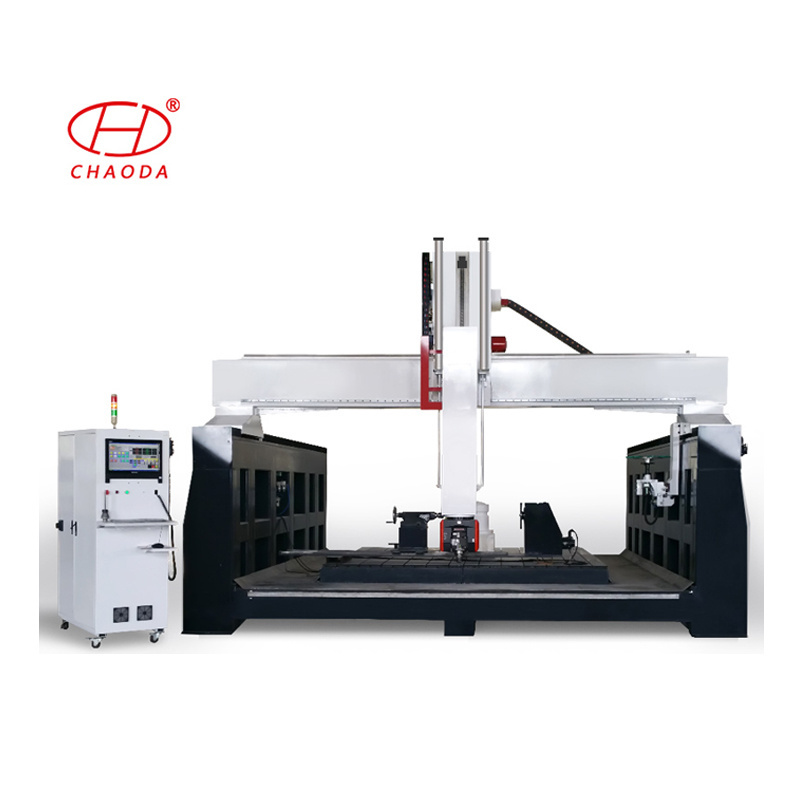

5 Axis CNC Router 5D, 5 Axis 5D CNC Machine Price
Technical Parameters
|
Model |
JC2030-5AXIS |
|
X,Y,Z,working space |
2000*3000*1000mm* ±120°* ±245°(can be customized) |
|
Rotary working space |
700mm diameter,2000mm length |
|
Table surface |
T-slot with clamps |
|
5 axis head |
Italian HSD 2 AXIS HEAD HS655 DOUBLE COLUMN |
|
Spindle |
Italian HSD ES779 HSK F63 10KW ATC spindle, cooled by liquid. |
|
Spindle rotating speed |
0-24000rpm/min |
|
Inverter |
Taiwan Delta inverter |
|
Driving system |
Japan YASKAWA servo motor and driver |
|
Operating system |
5 axis Syntec ( Option: Osai ) |
|
Work voltage |
AC380V, 3-phase, 50-60Hz |
|
Weight |
12000kg |
