Quick Details
-
Finish:
-
Stainless Steel wire drawing
-
Mortise:
-
Euro 5 latch
-
Handle:
-
Free engage handle
-
Card:
-
RFID Card
-
Power:
-
4pcs AA battery
-
Battery life:
-
12 months's life
-
Warranty:
-
14 Monthes
-
Gross Weight:
-
13.50KGS/Carton (6pcs/Ctn)
-
Package:
-
6PCS/Ctn, 50x42x33CM
-
Certificated:
-
CE/ROHS/FCC
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOWE car central door locking system
-
Model Number:
-
L9205-M1 car central door locking system
-
Finish:
-
Stainless Steel wire drawing
-
Mortise:
-
Euro 5 latch
-
Handle:
-
Free engage handle
-
Card:
-
RFID Card
-
Power:
-
4pcs AA battery
-
Battery life:
-
12 months's life
-
Warranty:
-
14 Monthes
-
Gross Weight:
-
13.50KGS/Carton (6pcs/Ctn)
-
Package:
-
6PCS/Ctn, 50x42x33CM
-
Certificated:
-
CE/ROHS/FCC
electronic hotel door lock car central door locking system
Features

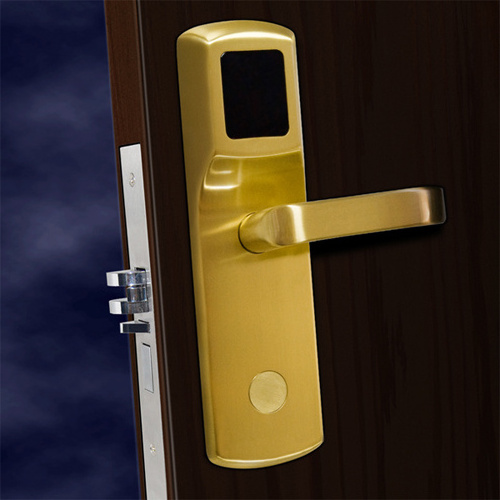

electronic hotel door lock car central door locking system Model: L9205-M1
1. Stainless steel panel plus modern style sensor window(plastic)
2. Low consume,high sensitive RFID Technology PCB board.
3. PCB board built-in buzzer and self-detect light.
4. RFID Mifare 1K technology, contactless working
5. Low Battery Voltage warning(beep and red light)
6. 5 latch mortise model-K2S
7. Free-engage handle while locking
8. Powered by AA battery x 4PCS for 10-12 months' life
9. Mifare 1K S50 card required,100,000 times write life.
10. Audit trail records the latest 800 lock transactions.
11. Passage mode activate by passage card for meeting case
12. Our own Hotel lock system(free) required
13. 40mm-50mm thickness door
Tech Index
electronic hotel door lock car central door locking system
|
Model |
L9205-M1 |
|
Power |
LR6 (AA)battery x 4pcs |
|
Low power alarm voltage |
4.8V |
|
Communication |
13.56MHz RFID(with keycard)/infrared (with LMA or WDR) |
|
Card support |
MIFARE S50 plus S70 |
|
Working Distance |
45mm Max |
|
Working Temperature |
0-60° C |
|
Working Humidity |
15~85%RH |
|
Static current |
< 30uA |
|
Working current |
< 150mA |
|
Memory |
800 Transactions include Time/Date/Card ID/Card type/Room ID |
|
Software |
Our own Hotel lock system™ |
|
Gross Weight |
3.3KG |
|
Package |
10pcs/Carton at 74.0X42.0X32.0CM |
|
Content: |
Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike (no battery included, no card) |
Usage
electronic hotel door lock car central door locking system
Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
