Quick Details
-
Material:
-
cold rolled steel plate, Cold Rolled Steel Plate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA5303
-
Usage:
-
furniture,server cabinet,ATM etc.
-
Name:
-

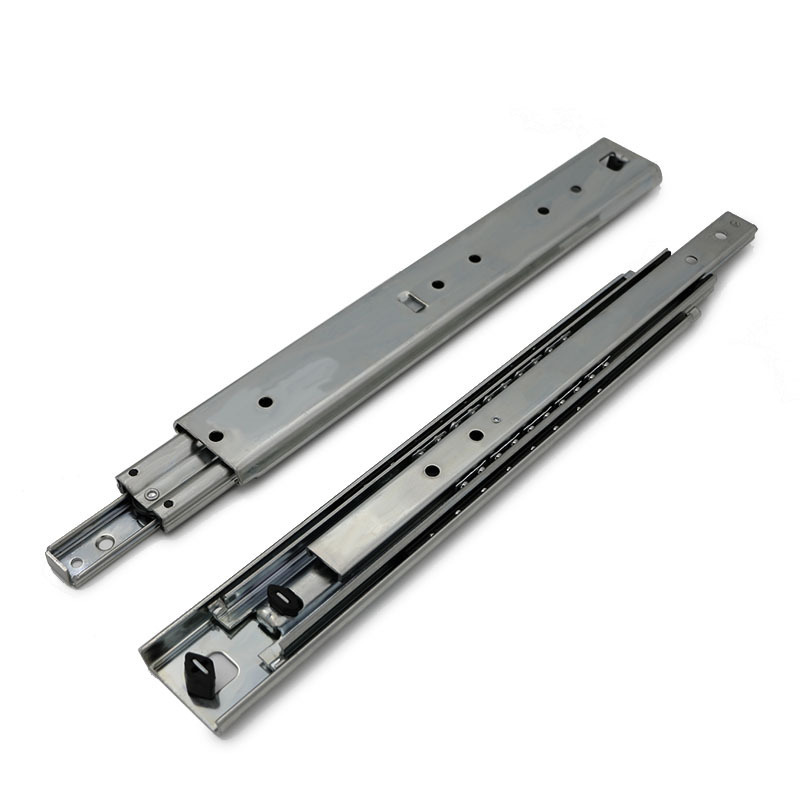

53MM Length 115kg Load Capacity Heavy Duty Full Extension Drawer Rail
-
Feature:
-
3 Fold+Full Extension
-
Finish:
-
Clear Zinc Electroplate
-
Loading capacity:
-
115KG/450MM(18'')
-
Length:
-
12''-40''(305mm-1015mm)
-
Width:
-
53mm
-
Thickness:
-
2.0mm*2.0mm*2.0mm
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Outdoor, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Supermarket, Warehouse, Workshop, Farmhouse, Storage & Closet, Hall, Home Bar, Basement, Garage & Shed, Gym, Villa, Other
-
Design Style:
-
Industrial
-
Type:
-
separation/diseparation
-
Material:
-
cold rolled steel plate, Cold Rolled Steel Plate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA5303
-
Usage:
-
furniture,server cabinet,ATM etc.
-
Name:
-
53MM Length 115kg Load Capacity Heavy Duty Full Extension Drawer Rail
-
Feature:
-
3 Fold+Full Extension
-
Finish:
-
Clear Zinc Electroplate
-
Loading capacity:
-
115KG/450MM(18'')
-
Length:
-
12''-40''(305mm-1015mm)
-
Width:
-
53mm
-
Thickness:
-
2.0mm*2.0mm*2.0mm
Product Description
Hvpal 53MM full extension light duty slide is mainly used for furniture,furniture,household drawer,toolbox ark etc.We have nine different types of this width,and here goes the type that can be separated with rebound device HA5303
Specification
|
ITEM
|
VALUE
|
|
Product Name
|
5303 42 16 inch center self closing bottom mount ball bearing pull out drawer slides pantry organization
|
|
Length
|
12''-40''(305-1015mm)
|
|
Side space
|
19.1+/-0.4mm
|
|
Thickness
|
2.0*2.0*2.0mm
|
|
Load capacity
|
115kg/pair 450MM(18'')
|
|
Finish
|
Clear Zinc Electroplate,electrophoresis black
|
|
Material
|
Cold Rolled Steel Plate
|
|
Packing
|
6set/carton
|
Details Images
TRIPLE FOLD
Three section makes it full extension,drawers total length can be fully pulled out.
OPTIONAL INSERT TYPE
The alternative is easier to use
THIN THICKNESS
Thickness to 2.0MM*2.0MM*2.0MM makes control of the space bewteen drawer and cabinet when mounting.
CAN BE CUSTOMIZED
If you need the special length we can customized for you.
SELECTED STEEL BALLS
Selected steel ball bearing makes it more smoothly and sliencely when sliding.
BLUE SEALED
Blue sealed makes our product anti-rust and wear-resisting, and the product will be more durable.
Popular sale
Besides the product above,we have more selections below,and you can choose different types of product based on your demands.
HA7613 HA7603 HA5303M HA5333
HA7613: 227kg capacity ;lock function;and lock-in/lock-out actuated with latch in the front of the slide.
HA7603:227kg load capacity;no lock function,;mainly used for big storage drawers,truck bodies,and large pantry pull-outs etc .
HA5303M: 115kg load capacity ;used for furniture,industrial drawer,toolbox ark etc.
HA5333: 115kg load capacity; lock function;used for furniture,server cabinet,ATM etc.
