Category
|
|
Descriptions
|
|
|
Model
|
No.
|
Q330P-S05 Mini PC
|
|
|
Processor System
|
CPU
|
Core i3-4010Y Dual Cores Processor 1.3GHz
|
|
|
|
CPU TDP
|
15W
|
|
|
|
Memory
|
1 x DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz) |
|
|
|
Chipset
|
By CPU
|
|
|
|
Graphics
|
Intel HD Graphics 5500
|
|
|
|
LAN Chipset
|
2 x Realtek Gigabit LAN
|
|
|
|
Audio
|
Realtek HD Audio
|
|
|
|
Watch Dog
|
Yes
|
|
|
Front I/0
|
Power Button
|
1
|
|
|
|
LED
|
1 x Power LED, 1 x HDD LED
|
|
|
|
USB
|
2 x USB 3.0, 2 x USB 2.0
|
|
|
|
Serial Port
|
2 x RS-232 (COM5, COM6)
|
|
|

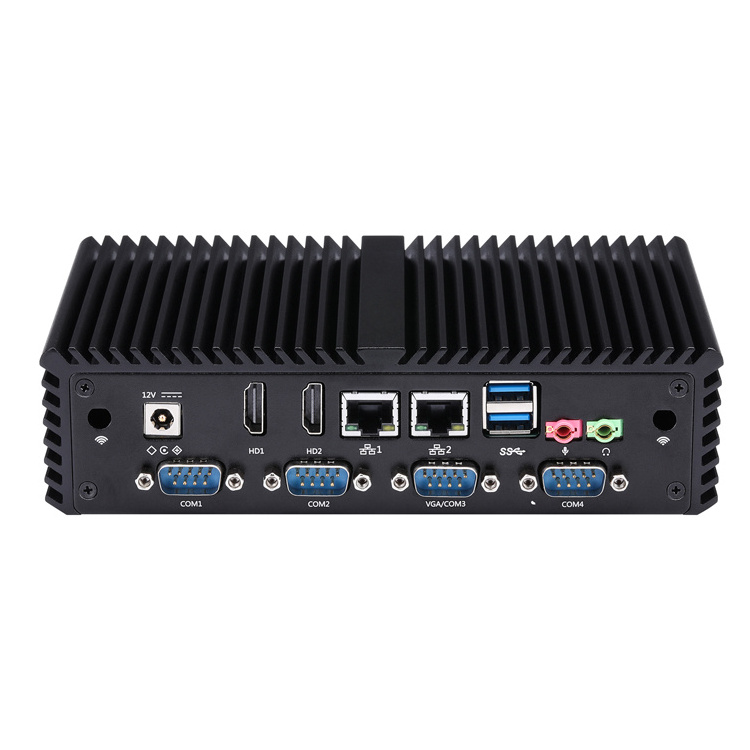

Rear I/O
|
Power
|
1 x DC Jack
|
|
|
|
Video Output
|
2 x HDMI
|
|
|
|
LAN
|
2 x Intel I211-AT/I210-AT Gigabit LAN
|
|
|
|
USB
|
2 x USB 3.0
|
|
|
|
Audio
|
1 x Mic-in, 1 x Line-out
|
|
|
|
Serial Port
|
4 x RS-232 (COM1, COM2, COM3, COM4)
|
|
|
Storage
|
Type
|
1 x 2.5-inch HDD/SSD 1 x Mini PCIe for mSATA SSD
|
|
|
|
mSATA
|
1 x Full-length Mini PCIe for SSD
|
|
|
|
Mini PCIe
|
1 x Mini PCIe
Full-length for 4G, Half-length for Wi-Fi |
|
|
|
SIM Card Slot
|
1
|
|
|
|
AutoStart Jumper
|
Yes, 1 x 3Pin, Pitch 2.54mm
|
|
|
|
VGA
|
1, 2 x 5Pin, Pitch 2.0mm
|
|
|
|
GPIO
|
1, 2 x 5Pin, Pitch 2.0mm
|
|
|
|
RS-485
|
COM2 can be set up as RS-485 (Factory Setting)
|
|
|
|
VGA
|
COM3 can be set up as VGA (Factory Setting)
|
|
|
|
CMOS Clear Jumper
|
Yes, 1 x 3Pin, Pitch 2.0mm
|
|
|
|
Power Adapter
|
12V4A
|
|
|
|
DC Jack
|
5.5mm, 2.5mm
|
|
|
Environmental
|
Operating Temp
|
0°C~50°C
|
|
|
|
Non-Operating Temp
|
-20°C~80°C
|
|
|
|
Humidity
|
10%~90%
|
|
|
|
Material
|
Aluminium Alloy
|
|
|
|
Dimension
|
187 x 111 x 49mm
|
|
|
|
Weight
|
1.09kg
|
|
|
|
Mounting
|
VESA Mounting Bracket
|
|
|
|
Packaging Dimension
|
261 x 218 x 75mm
|
|
|
|
Kensington Lock
|
No
|
|
|
|
Cooling Mode
|
Fanless Design
|
|
|
OS Support
|
Windows XP, Windows 7, Windows 8, Windows 10, Linux
|
|
|
