Quick Details
-
Applicable Models:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dxstore
-
Model Number:
-
AUTEL-09
-
Warranty:
-
12 Months
-
Product Name::
-
A-utel MaxiCOM MK808BT
-
Type::
-
Full System Car Diagnostic Tool
-
Applicable Models::
-
For All Many Cars
-
Language::
-
Support Multi-language
-
Version::
-
Newest Version
-
Performance::
-
High Performance
-
Feature::
-
ABS SRS EPB DPF BMS SAS TPMS IMMO MK808 Code Reader
-
MK808BT Update::
-
Online
-
Function::
-
OBD2 Diagnostic Scan Tool
-
Keywords:
-
Auto Diagnostic Scanner Tool
-
Certification:
-
CE
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
12V
-
Power:
-
W
-
Applicable Models:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dxstore
-
Model Number:
-
AUTEL-09
-
Warranty:
-
12 Months
-
Product Name::
-
A-utel MaxiCOM MK808BT
-
Type::
-
Full System Car Diagnostic Tool
-
Applicable Models::
-
For All Many Cars
-
Language::
-
Support Multi-language
-
Version::
-
Newest Version
-
Performance::
-
High Performance
-
Feature::
-
ABS SRS EPB DPF BMS SAS TPMS IMMO MK808 Code Reader
-
MK808BT Update::
-
Online
-
Function::
-
OBD2 Diagnostic Scan Tool
-
Keywords:
-
Auto Diagnostic Scanner Tool
-
Certification:
-
CE
Products Description

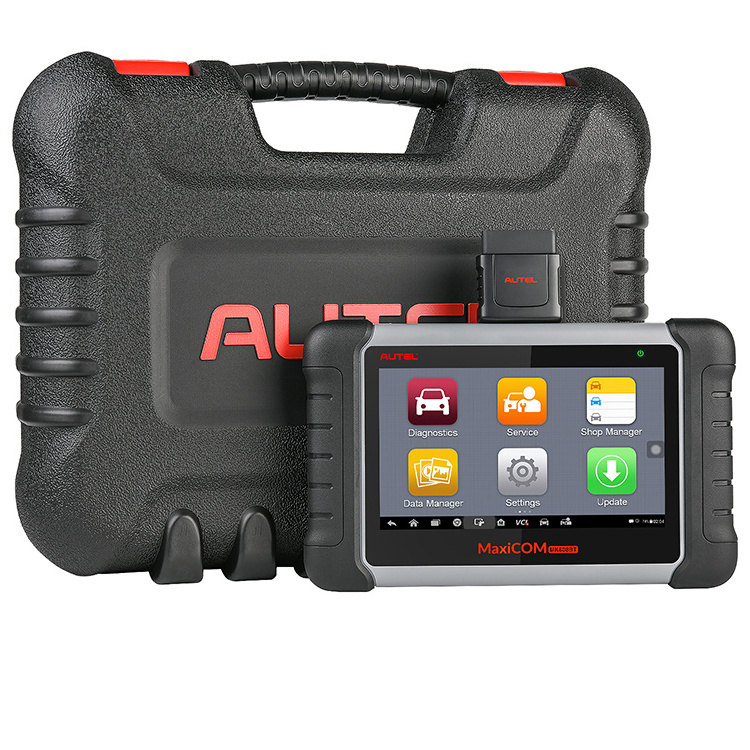

A-utel MaxiCom MK808BT MaxiSys Automotive Diagnostic OBD2 Code Scanner Tool
A-utel MK808BT Features:
1. Support Blue-tooth connection
2. Extraordinarily powerful Cortex-A9 processor (1.5 GHz) processor
3. 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
4. Internal reliable 32GB On-board Memory for better performance
5. Unique ergonomic design with rubberized outer protection and a rugged internal housing
6. Android 4.4.2 KitKat Operating System for fast boot-up and multitasking
7. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
8. Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
9. Data Manager saves customer and vehicle records, scanner data and technician notes for future review
10. Read/clear codes functions
11. Display live data in text, graph & analog for easy data review
12. Auto VIN technology can automatically identify the vehicle’s make, model, and year information
13. Reset Steering Angle Sensor (SAS)
14. Support forced DPF regeneration
A-utel MK808BT Specifications:
Recommended Use: Indoor
Operating System: Cortex-A9 processor (1.5 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity: Mini USB 2.0 USB 2.0 Wi-Fi HDMI Type A Micro SD card (supports up to 32GB)
Sensors: Light sensor for brightness auto changing
Audio input/output: Input: N/A Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) @3.7V
Operating Temp.: 0 to 55°C(32 to 131°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight: 788 g (2.42 lb.)
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.
Autel MK808BT Package List:
1x MK808BT Tablet
1x USB External Power Adapter
1x USB Cable(for testing)
1x USB Cable(for charging)
1x MaxiVCI Mini
1x Quick Reference Guide
1x User Manual
|
Brand
|
dxstore
|
|
Product name
|
AUTEL-09
|
|
MOQ
|
1PC
|
