Quick Details
-
Feed Mechanism:
-
Needle Feed
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OREN
-
Power:
-
550
-
Overall Dimensions:
-
1500*200
-
Weight (KG):
-
389 KG
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
8mm
-
Stitch Length:
-
6mm
-
Feed Mechanism:
-
Needle Feed
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OREN
-
Power:
-
550
-
Overall Dimensions:
-
1500*200
-
Weight (KG):
-
389 KG
Guangzhou Oren Sewing Machine Co., Ltd.
OREN Brand of high quality industrial sewing machine spring mattress machine computer automatic sewing machine RN9N-1
Basic information:
|
Customized |
Yes |
Type |
wrapping machine |
|
Purpose |
Sewing |
Degree of automation |
Half-fully automatic |
|
Stitch type |
Quilting machine |
Applicable thickness range |
Thick material |
|
Brand |
Japan Oren |
Model |
RN9B-1 |
|
Applicable place |
Factory use |
Target |
Mattress quilt blanket |
|
Pin number |
single |
Drive form |
Variable frequency clutch |
|
Thread |
Single thread |
Head number |
single head |
|
Product size |
193*130*80 cm |
Weight |
365 kg |
|
Normal table size |
1550*2050 mm |
Auto table size |
1550*2050 mm |
Product specification:

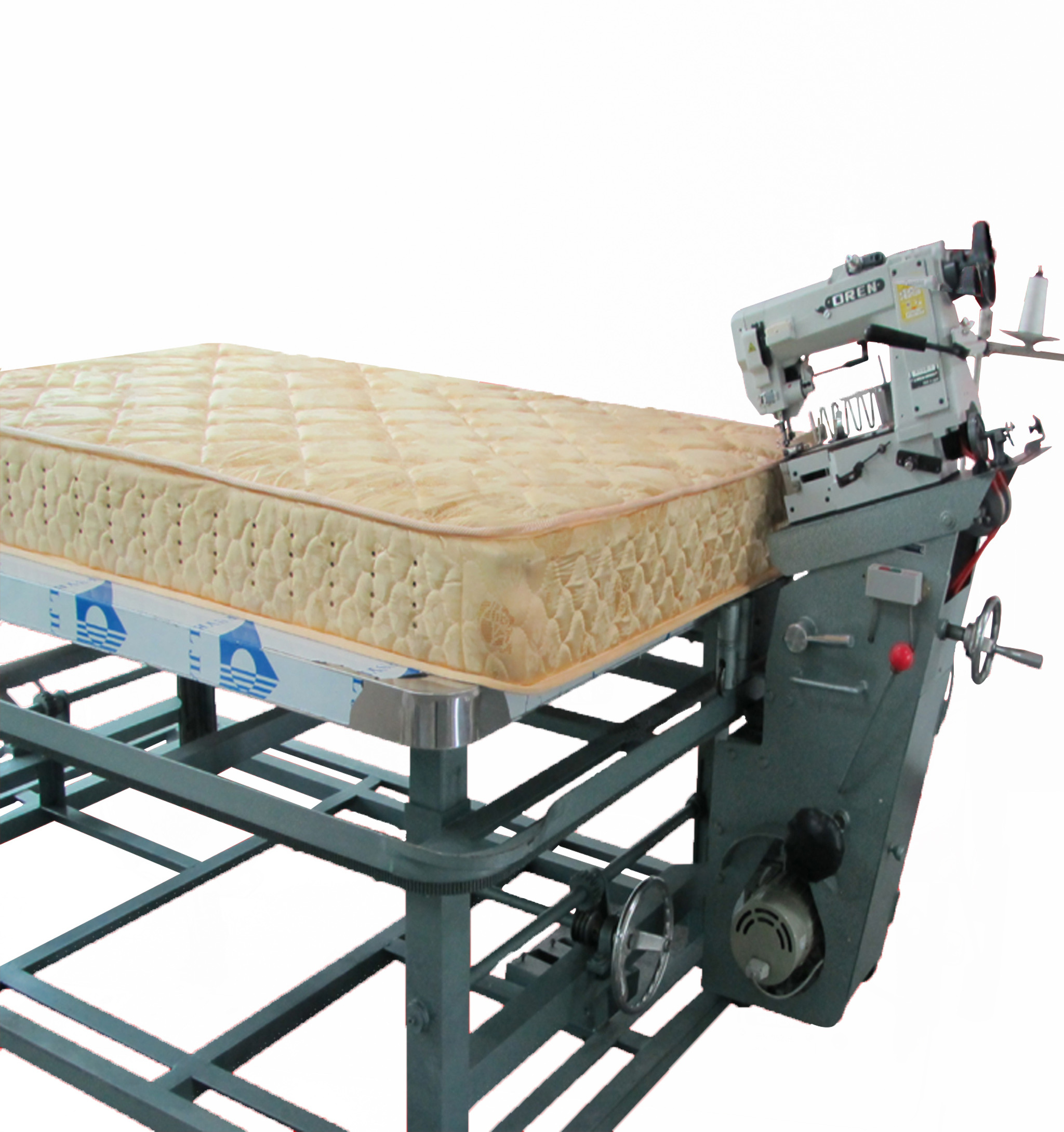

This machine is mainly used for sewing the mattress, completing the edge seaming between the mattress fabric and the wall cloth, and also suitable for sewing other mattress, blanket, sofa cushion and sleeping bag. The machine head can be automatically raised and lowered to suit the sewing of mattresses of various heights. The traveling box and the head drive adopt the frequency conversion clutch motor, the Angle automatic deceleration is convenient and easy to control, the head adopts the slide bar to pick the line, no shuttle bending needle to pick the line, forming the chain stitch. The upper and lower shafts are driven by synchronous toothed belt. Lever type needle distance adjusting mechanism. Adopt comprehensive lower feed, needle feed and alternating presser foot upper feed, pull rod type presser foot, and high pressure foot stroke, high pressure foot lift clearance and large stitch length, with push and pull type stainless steel professional edge jig; Easy handling of difficult to transport materials and layers of heavy leather. Automatic induction device, frequency conversion clutch, prevent machine damage caused by load, make sewing operation more stable and convenient. Push plate height adjustable, more reasonable man-machine performance.
Main technical parameters:
|
Head type |
shuttleless |
|
Height sewing speed |
3000 rpm |
|
Angle of nose operation |
35°~85°(adjustable) |
|
Table lift range |
0 - 420 mm |
|
Nose lift range |
0 – 200 mm |
|
Applicable mattress thickness |
50 - 700 mm |
|
Travelling box speed |
2000-3000 per minute |
|
Travel box control |
Variable frequency clutch |
|
The total power |
7 KW |
