Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2000
-
Product name:
-
ATC cnc router machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300mm*2500mm*300mm
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Control system:
-
Taiwan syntec Control System
-
Motor and driver:
-
Leadshine AC Servo Driver 1500W
-
Table Surface:
-
Vacuum adsorption + T-slot Table
-
Transmission:
-
Helical Rack Pinion
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
China Fuling Inverter
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2000
-
Product name:
-
ATC cnc router machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300mm*2500mm*300mm
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Control system:
-
Taiwan syntec Control System
-
Motor and driver:
-
Leadshine AC Servo Driver 1500W
-
Table Surface:
-
Vacuum adsorption + T-slot Table
-
Transmission:
-
Helical Rack Pinion
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
China Fuling Inverter
Customized High Precision

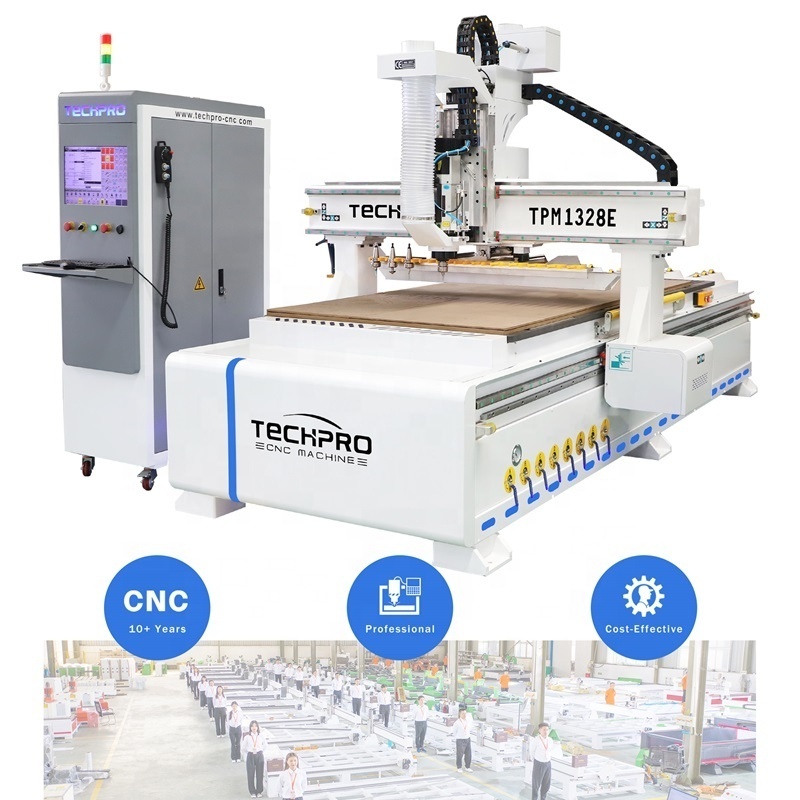

1300*2500mm ATC CNC Router Machine with automatic tool changer 12 piece for wood door cabinet
Wood ATC CNC Router Machine Featrues :
1.Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability
2.High accuracy THK linear guide from Japan, high accuracy helical gear rack transmitting, more stability, high precision stability.
3. Taiwan LNC / Syntec control system with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing. 4.Chinese HQD spindle or Italian ATC air cooling spindle, ensure the cutting effect, long using life with less maintain. 5.16Pcs automatic tools changer,fast speed changer tools, high efficiency for woodworking.
6.Standard configured 380V 9.0KW air cooling spindle, high power, high efficiency.
7.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc .
8.Independent control cabinet,Stronger power and weak power separate, maintenance easily .
9.Can optional the vaccum system and dust collector system .
Products Description
|
Model
|
TPM1325E
|
|
|
|
||
|
Working area
|
1300*2500*300mm
|
|
|
|
||
|
Control system
|
Taiwan LNC / Syntec control system
|
|
|
|
||
|
Spindle 1
|
HQD ATC 9.0kw air cooling spindle ( 0-24000rpm )
|
|
|
|
||
|
Motor and Driver
|
Leadshine AC servo motor and driver 1500W
|
|
|
|
||
|
Inverter
|
Fuling inverter
|
|
|
|
||
|
Table surface
|
T-slot and vacuum adsorption table
|
|
|
|
||
|
Structure
|
Heavy Duty 10mm Steel machine bed; 12mm Moving Steel Gantry
|
|
|
|
||
|
Lubrication system
|
Manual lubrication system
|
|
|
|
||
|
Transmission
|
X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw
X,Y axis: Taiwan Hiwin square guide rails with 30mm |
|
|
|
||
|
Electric Parts
|
Schneider brand
|
|
|
|
||
|
Tool Sensor
|
Automatic type
|
|
|
|
||
|
Vacuum Pump
|
5.5kw vacuum pump
|
|
|
|
||
|
Software
|
UG/Artcam/Ucancam / Fushion360 etc
|
|
|
|
||
|
Working Voltage
|
380V or 220V /3phase
|
|
|
|
||
|
Optional
|
Italy HSD spindle
|
|
|
|
||
|
|
Taiwan Delta / Japan Yaskawa servo motor and driver
|
|
|
|
||
|
|
Oilless Vacuum pump or Air vacuum pump
|
|
|
|
||
Application Automatic CNC Router Machine :
1. Furniture wooden craft decoration:
Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving.
Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving.
2. Advertising industry:
Acrylic, two-color board, PVC, ABS board, all kinds of signs, badges, placetags, copper, fonts, fonts, various signs, trademarks and other materials.
Acrylic, two-color board, PVC, ABS board, all kinds of signs, badges, placetags, copper, fonts, fonts, various signs, trademarks and other materials.
3. Metal Industry: Aluminum, copper soft metal material cutting and drilling.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
Our Advantages
After Service of ATC CNC Router Machine:
1. We will supply the wood cnc router with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, WhatsApp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
1. We will supply the wood cnc router with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, WhatsApp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2. You can come to our CNC router machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days
3. Our engineer will do a door-to-door instruction training service at your local site.
Warranty for ATC CNC Router Machine:
1. 3 years for the whole machine, e xcept the damage artificially, we are responsible for offering the fittings free of charge during warranty.
1. 3 years for the whole machine, e xcept the damage artificially, we are responsible for offering the fittings free of charge during warranty.
2. Long life-time maintenance, after-sale department will offer 24/7 English online support.
3.
After the warranty period expired, the buyer only need to pay the actual maintenance cost.
4. Certificate support: CE, SGS.
Packing Detail:
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). CNC router achine packing size:3800*2100*2100mm ,GW: 1900kg
Shipped in 25 working days after payment.
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
Our Company:
Jinan TechProCNC Machinery Co., Ltd, Since 2007, it’s a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) ,has been steadily developing more than 10 years.
TECHPRO has established 3 mode factories with more than 18 automation, high precision processing equipment in China. With a total construction area of 8,500 square meter, it have more than 100 well-trained workers, include 15 domestic and international after-service engineers,60 assembly workers etc.
TECHPRO
adheres to the motto of "customer first, service first". we believe in the spirit of enterprise “cooperation, win-win, appreciate and share ", and continue to attract top talents and precision laser technology to join us,
TECHPRO is a leading CNC equipment manufacturer in China and has launched 10 series products with an annual production capacity of 1,120 sets. With advanced CNC technology, perfect quality management system and convenient after-sales service in the network of mainland China and global markets. If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
