Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDM
-
Model Number:
-
sdm-201
-
Thickness:
-
0.2mm-3mm
-
Width:
-
2m-8m
-
Length:
-
50m-100m/roll (as Request)
-
Color:
-
Black, Green, White, Blue
-
Standard:
-
ASTM
-
Certification:
-
ISO9001
-
Function:
-
Waterproof, Impermeable
-
Surface:
-
Smooth Surface
-
Manufacturer:
-
Sdmarlboro
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDM
-
Model Number:
-
sdm-201
-
Thickness:
-
0.2mm-3mm
-
Width:
-
2m-8m
-
Length:
-
50m-100m/roll (as Request)
-
Color:
-
Black, Green, White, Blue
-
Standard:
-
ASTM
-
Certification:
-
ISO9001
-
Function:
-
Waterproof, Impermeable
-
Surface:
-
Smooth Surface
-
Manufacturer:
-
Sdmarlboro
|
HDPE Geomembrane Product Parameter
|
|
|
|
|
|
|
|
|||||||
|
Thickness
|
0.75
|
1.0
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|||||||
|
Density g/m2
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
|||||||
|
Tensile yield strength (N/mm)
|
≥11
|
≥15
|
≥18
|
≥22
|
≥29
|
≥37
|
≥44
|
|||||||
|
Tensile breaking strength (N/mm)
|
≥20
|
≥27
|
≥33
|
≥40
|
≥53
|
≥67
|
≥80
|
|||||||
|
Bongation at yield(%)
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
|||||||
|
Elongation at break(%)
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
|||||||
|
Tear resistance(N)
|
≥93
|
≥125
|
≥160
|
≥190
|
≥250
|
≥315
|
≥375
|
|||||||
|
Puncture strength(N)
|
≥240
|
≥320
|
≥400
|
≥480
|
≥640
|
≥800
|
≥960
|
|||||||
|
Tensile load stress cracking
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
|||||||
|
Carbon black content(%)
|
2.0-3.0
|
2.0-3.0
|
2.0-3.0
|
2.0-3.0
|
2.0-3.0
|
2.0-3.0
|
2.0-3.0
|
|||||||
|
Product Name
|
Geomembrane
|
|
Material
|
HDPE / LDPE / LLDPE/PVC/EPDM
|
|
Color
|
Black, White, Blue, Green (as request)
|
|
Standard
|
ASTM GRI-GM13
|
|
Max Thickness
|
3mm
|
|
Max Width
|
8m
|
|
Certification
|
ISO9001, SGS, CTI, ROHS
|
|
Application
|
Pond, Aquaculture, Dam, Landfill, Mining, Agricultural etc.
|
Product Description

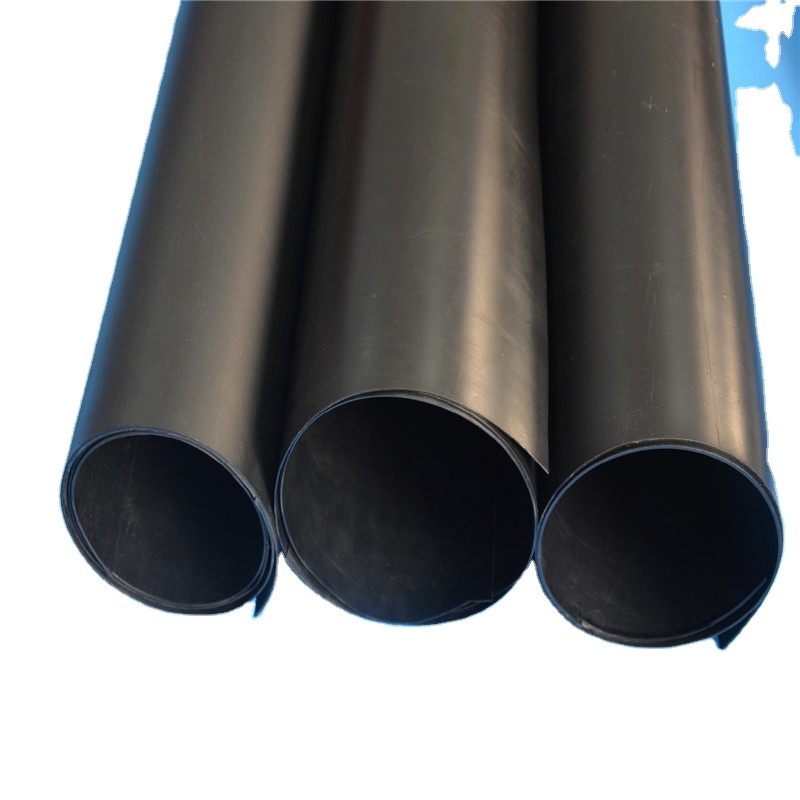

Pond Liner Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications,geomembrane HDPE liner is made of finest quality high density polyethylene HDPE with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our
smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
Specification
Applications
Environmental Protection:
For example, landfills, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc.
Water Conservancy:
For example, landfills, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc.
Water Conservancy:
For example, seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, etc.
Aquaculture Industry:
Intensive, industrialized aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber circle protection, etc.
Gardens:
Artificial lakes, rivers, reservoirs, golf pools, slope protection, greening lawns, waterproofing and moisture-proof.
Petrifaction:
Chemical plant, refinery, storage tank seepage control, chemical reaction tank, sedimentation tank lining, two liner, etc.
Intensive, industrialized aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber circle protection, etc.
Gardens:
Artificial lakes, rivers, reservoirs, golf pools, slope protection, greening lawns, waterproofing and moisture-proof.
Petrifaction:
Chemical plant, refinery, storage tank seepage control, chemical reaction tank, sedimentation tank lining, two liner, etc.
Agriculture:
Seepage control of reservoirs, application pools, reservoirs, irrigation systems, etc.
Seepage control of reservoirs, application pools, reservoirs, irrigation systems, etc.
Packing & Delivery
Double Layers White Woven Geotextile and Add Two Straps on Both Ends.
Safe Loading Container Carefully in Our Factory.
Make Sure the Goods Arrive in Good Condition of Clients.
20'GP container can load about 19 tons geomembrane, Each roll's length is 5.8m.
40'HQ container can load about 25 tons geomembrane, Each roll's length is 7m.
Safe Loading Container Carefully in Our Factory.
Make Sure the Goods Arrive in Good Condition of Clients.
20'GP container can load about 19 tons geomembrane, Each roll's length is 5.8m.
40'HQ container can load about 25 tons geomembrane, Each roll's length is 7m.
