Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
GFUVE
-
Model Number:
-
LZCK720-10
-
Type:
-
Dry-type
-
Frequency:
-
50Hz/60Hz
-
Material:
-
epoxry resin
-
Product name:
-
5a split core current transformers price
-
Rated voltage:
-
10-35kv
-
Name:
-
36kv 800 400 1 indoor current transformer
-
key words:
-
current transformer for meter
-
Rated primary current:
-
100-1500A
-
Rated load:
-
≤10VA
-
Rated secondary current:
-
5A or 1A
Quick Details
-
Use:
-
current
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
GFUVE
-
Model Number:
-
LZCK720-10
-
Type:
-
Dry-type
-
Frequency:
-
50Hz/60Hz
-
Material:
-
epoxry resin
-
Product name:
-
5a split core current transformers price
-
Rated voltage:
-
10-35kv
-
Name:
-
36kv 800 400 1 indoor current transformer
-
key words:
-
current transformer for meter
-
Rated primary current:
-
100-1500A
-
Rated load:
-
≤10VA
-
Rated secondary current:
-
5A or 1A

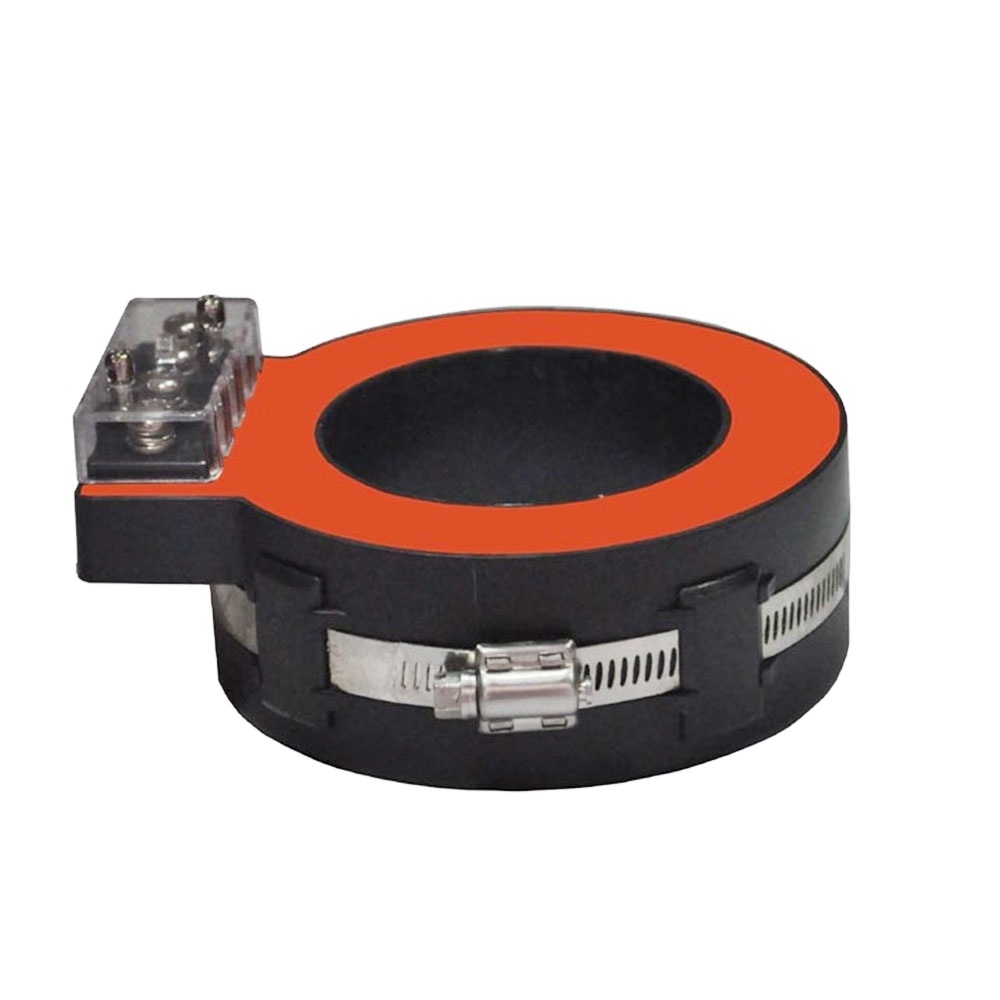

LZCK720-10 RESIN MEASURING OR PROTECTION SPLIT CORE DRY TYPE CTS
LZCK series split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.
It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.
The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
PARAMETERS
| Technical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006 |
| Rated primary current | 100-1500A |
| Rated load | ≤10VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power-frequency voltage | 3kV, 1min |
| Instrument security factor | FS≤10 |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | φ80xφ110x50 |
| Weight (kg) | 2.1 |
| Operating conditions | |
| Operating temperature | -35°C to +55°C |
| Daily average temp | <+40°Cto |
| Storage temperature | -40°C to +70°C |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
