Quick Details
-
Model Number:
-
KH300AG
-
Name:
-
Universal 6 Channel Paperless Vibration Data Logger
-
certification:
-
CE,ROHS
-
Place of origin:
-
Xiamen, China
-
Pannel Size:
-
96x96x85mm
-
Input Number:
-
6 Channel
-
Universal Input:
-
Thermcoouple ,PT100., RTD, mV, mA, Vdc input, frequency input
-
Application:
-
Temperature, humidity, pressure, level, flow,vibration etc
-
Power supply:
-
100-240VAC, 24VDC
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Kehao
-
Model Number:
-
KH300AG
-
Name:
-
Universal 6 Channel Paperless Vibration Data Logger
-
certification:
-
CE,ROHS
-
Place of origin:
-
Xiamen, China
-
Pannel Size:
-
96x96x85mm
-
Input Number:
-
6 Channel
-
Universal Input:
-
Thermcoouple ,PT100., RTD, mV, mA, Vdc input, frequency input
-
Application:
-
Temperature, humidity, pressure, level, flow,vibration etc
-
Power supply:
-
100-240VAC, 24VDC
Products Description

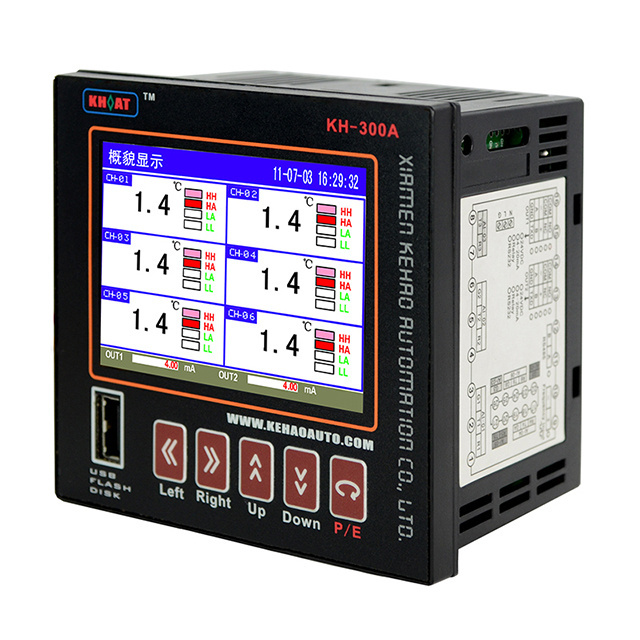

KH300AG
color paperless recorder (96x96x85mm, up to 6 channels) for TFT true color LIQUID crystal display, completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature,liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensorauxiliary power supply, forwarding, printing, communication and other functions. Measurement data can be displayed in a variety of
types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular
chart memory, alarm state display, etc. Curves and data can also be printed by small printer through RS232 port. It also provides the function of viewing data of year, month, day, hour, minute, and second. The recorder can be configured with OPC server, SCADA system and other professional software, using modbus-RTU communication protocol through RS485 port. Historical data can be directly downloaded through the U disk, plug and play, convenient and flexible. The data analysis software supported by PC can print the data into curves and output them in Excel format for further analysis.
types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular
chart memory, alarm state display, etc. Curves and data can also be printed by small printer through RS232 port. It also provides the function of viewing data of year, month, day, hour, minute, and second. The recorder can be configured with OPC server, SCADA system and other professional software, using modbus-RTU communication protocol through RS485 port. Historical data can be directly downloaded through the U disk, plug and play, convenient and flexible. The data analysis software supported by PC can print the data into curves and output them in Excel format for further analysis.
KH300AG Selection of 6Channels Intelligent Data Logger
For example : MIC-306AG-R2A-R2A-S1-U-N-E
Meaning: Channel -------Six Channels
OUT1-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
OUT2-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
Communication--------RS485 communication port
USB--------USB flash drive for download data
Power Supply------220VAC, 50HZ ,85-240VAC
PC Support Software-------Extensive DCS software RS485
For example : MIC-306AG-R2A-R2A-S1-U-N-E
Meaning: Channel -------Six Channels
OUT1-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
OUT2-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
Communication--------RS485 communication port
USB--------USB flash drive for download data
Power Supply------220VAC, 50HZ ,85-240VAC
PC Support Software-------Extensive DCS software RS485
