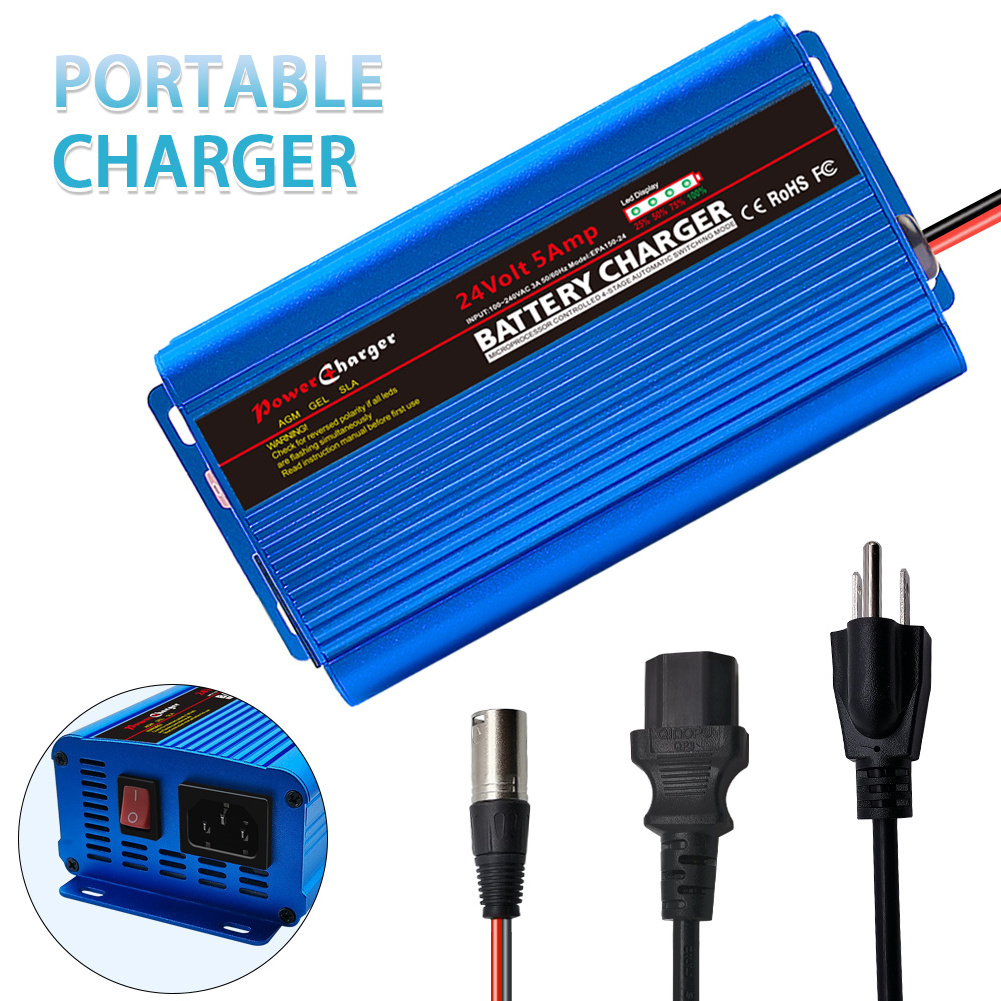

24V 5 Amp SLA Battery Charger and Maintainer mobility scooter battery charger

24V 5 Amp SLA Battery Charger and Maintainer mobility scooter battery charger

FOB Reference Price: Get Latest Price

≥16 Pieces

US $26

≥100 Pieces

US $23.5

≥500 Pieces

US $22.05

≥1000 Pieces

US $20.85

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Aluminum

Function:: Standard Battery Charging

Brand Name:: EVERPOWER

Model Number:: EPA150-24

output voltage and current:: 24V/5A

Maximum Output Power:: 150W

Place of Origin:: Guangdong, China

Input voltage:: AC 100-240V 50-60Hz

Charge mode:: Auto 4 stage by MCU controller

Certificate:: CE RoHS FCC UKCA

Case:: Aluminum

Output Voltage:: 24V

Output current:: 5A

Case Color:: Blue/Black/Red

Warranty:: 12 months

Weight:: 990g

Quick Details

Type:: Electric, Desktop Charger

Port:: DC, AC

Use:: Charging Battery

Material:: Aluminum

Function:: Standard Battery Charging

Brand Name:: EVERPOWER

Model Number:: EPA150-24

output voltage and current:: 24V/5A

Maximum Output Power:: 150W

Place of Origin:: Guangdong, China

Input voltage:: AC 100-240V 50-60Hz

Charge mode:: Auto 4 stage by MCU controller

Certificate:: CE RoHS FCC UKCA

Case:: Aluminum

Output Voltage:: 24V

Output current:: 5A

Case Color:: Blue/Black/Red

Warranty:: 12 months

Weight:: 990g

Product Description

FEATURE:

*AC100-240V input for worldwide used with rechangeable AC cord C13 inlet
*Perfect for charging all SLA/VRLA/GEL/AGM Lead acid battery
*Fully automatic 4 stages charging process by MCU controlled
*Green 4Leds indicator for battery charging and Red Led indicator
*Output constant current for faster charging
*Protections:Short circuit/OVP/OCP/Overload/Polarity reversed
*100% full load and burn-in test
*High efficiency,long life and high reliability

Safety protections:

* Over Voltage protection
* Short Circuit protection
* Polarity error protection
* Over power protection

Specification:

* Input: AC 100-240V 50-60Hz
* Output: DC 27.6V
* Charging current:5A
* Weight: 800g(only body)

4-STAGE CHARGING PROCESS:

Stage 1: Desulfating , the battery through bigger voltage pulse,Charger enters this stage if it detects battery sulfation or severe discharger.Once battery is rejuvenated,charger moves to Bulk stage (LEDs:1 ON,2-4 OFF )

Stage 2: Bulk charge , using charger highest rated current for the type of battery in use until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)

Stage 3: Absorption ,the output voltage is limited to 14.5-14.7V(12Volt battery ) while current declines as the battery charges to its full capacity without overheating

(LEDs:1-3 ON,4 Blinking)

Stage 4: Float ,at this stage,the battery is fully charged and the charger maintains the battery through pulse charging. (LEDs:1-4 ON)

WARNING!

* Charge 24V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked

Product Specification

Part Number	EPA150-24
Charger Battery Compatibility	24 Volt SLA GEL AGM VRLA WET lead acid Battery
Charging Battery(Ah)	9-80 Ah
Color	Black; Blue ; Red
Battery indicator	4LEDS for 25%, 50%, 75%, 100% battery
Housing Material	Aluminum
Input Voltage	100-240Vac
Maximum Charging Current	5 A@ 24 V
