Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SD
-
Model Number:
-
GN30-12
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
630A
-
Rated Voltage:
-
12
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SD
-
Model Number:
-
GN30-12
Product Description
Product Overview

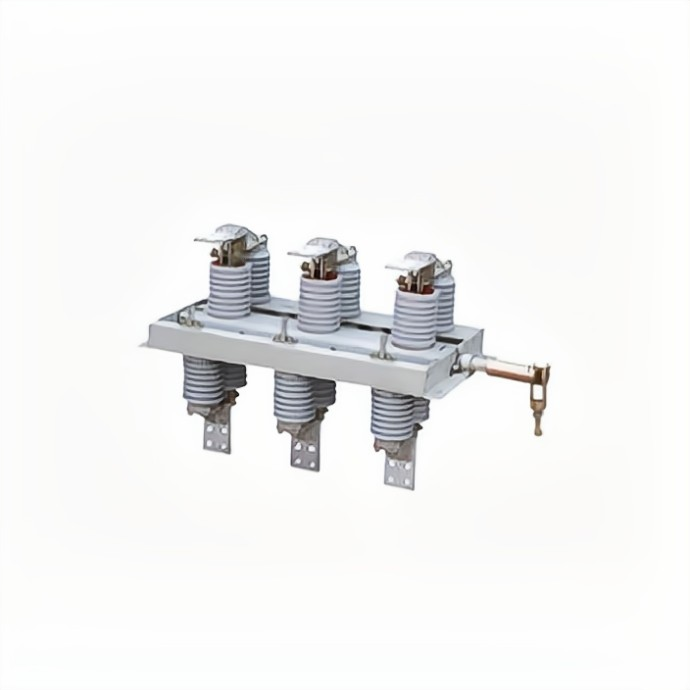

The GN30-12 rotary indoor high-voltage isolation switch is a new type of rotary contact knife type isolation switch. Its main structure is to fix two sets of insulators and contacts on the upper and lower planes of the three-phase common chassis, through the rotary contact knife. Thus achieving the opening and closing of the switch. The GN30-12D switch is an additional form with a grounding switch on top of the GN30-12 switch, which can meet the needs of different power systems. This product has a compact design, small footprint, strong insulation capacity, and is easy to install and adjust. Its performance meets the requirements of GB1985-89 "AC High Voltage Isolation and Grounding Switches". Suitable for indoor systems with a rated voltage of 10kV AC 50Hz and below, used for opening and closing circuits with voltage and no load. It can be used together with high-voltage switchgear or separately.
Service conditions and environment
The altitude does not exceed 1000m;
Surrounding air temperature: upper limit+40 ℃; Lower limit -10 ℃;
Relative humidity: The daily average value shall not exceed 95%; The monthly average value shall not exceed 90%;
The seismic intensity shall not exceed 8 degrees;
Places without severe dust, chemical corrosiveness, and explosive substances;
Places without frequent severe vibration.
Product Parameter
Specification
|
Item
|
|
|
value
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Place of Origin
|
|
|
China
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Province
|
|
|
Zhejiang
|
|
|||
|
Brand
|
|
|
SD
|
|
|||
Product show
Appearance installation
