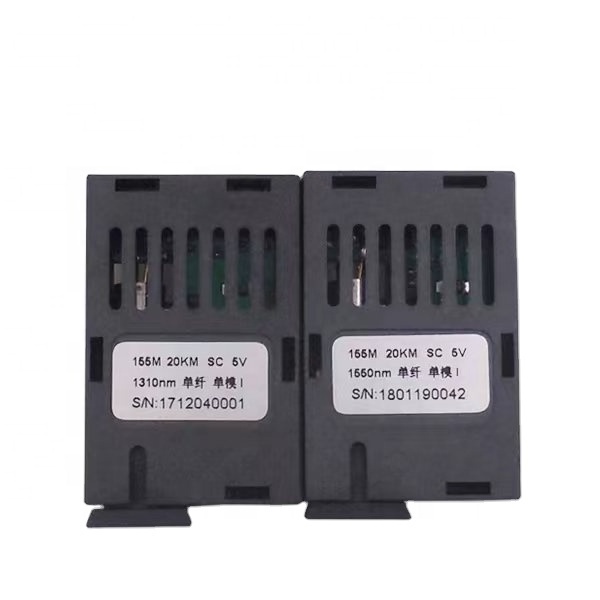

Brief info on 1X9 Optical Module 1550 20Km SC 5V SM SX

* Type :1x9
* Speed:1x9-155M-20km transceiver
* Distance : 20KM
* Sending Wavelength:

1x9-155M-20km transceiver
* Receiving Wavelength:

1x9-155M-20km transceiver
* Working Temperature :

Commercial ： 0℃～+70℃

Industrial ：40℃～+85℃ （Optional )

* NO DDM & * :1x9-155M-20km transceiver

1x9-155M-20km transceiver :
The transceiver supports 155Mbps and 20Kmtransmission distance with SMF.
The transceiver consists of two sections: Thetransmitter section incorporates a FPlaser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
4.Performance specifications
4.1Absolute Maximum Ratings
Parameter	Symbol	Minimum	Maximum	Units
Storage Temperature	Tst	-40	85	C
Operating Temperature	Top	0	70	C
Supply Voltage	Vcc	0	5	V
Input voltage	Vin	GND	Vcc
Lead Soldering	240/10					C/s
Temperature & Time	240/10					C/s
4.2Operation Environment
Parameter	Symbol	Minimum	Maximum	Units
Supply Voltage	Vcc	4.5	5.5	V
Ambient	Top	0	70	C
operating Temperature	Top	0	70	C
Operating Relative Humidity	-	5	95	%
4.3Transmitter Section
(Ambient Operating Temperature聽0掳C to +70掳C, Vcc =5.0聽V)
Parameter	Symbol	Min.	Typ.	Max.	Units
Data rate	-	-	155	-	Mb/s
Center Wavelength	lo	1260	1310	1360	nm
Output Spectral width	Dl	-	-	4	nm
Average Optical	Po	-15	-	-3	dBm
Output Power	Po	-15	-	-3	dBm
Extinction Ratio	Er	12	-	18	dB
Rise/Fall Time(20%~80%)	Tr/Tf			0.26	ns
Total jitter	Tj			0.43	UI
Optical Eye Diagram	IEEE 802.3u and ANSI Fibre Channel Compatible
Input differential impendence	Zdiff		100		Ohm
4.4Receiver Section
(Ambient Operating Temperature0C to +70C, Vcc =5.0V)
Parameter	Symbol	Min.	Typ.	Max.	unit
Data rate			155		Mb/s
Wavelength	l	1260		1620	nm
Receiver Sensitivity	Rsen	-		-34	dBm
Receiver Overload	Rov	-3			聽
Output differential impendence	Zdiff		100		Ohm
LOSS Thresholds	LOSSD	-	-	-34	dBm
LOSS Thresholds		LOSSA	-45			聽
5.Pin Description
Pins	Name	Discription	NOTE
1	VeeR	Receiver Ground
2	RD+	IReceived Data Output (PECL)
3	RD-	Inv.ReceivedData Output (PECL)
4	SD	Signal Detected (PECL)
5	VccR	Receiver Power
6	VccT	Transmitter Power
7	TD-	Inv. Transmit Data Input (PECL)
8	TD+	Transmit Data Input (PECL)
9	VeeT	Transmitter Ground

Packing & Delivery

Specification

Center wavelength	nm	1310±0.5
Spectrum Linewidth	MHz	≤3
Sideband Rejection Ratio	dB	>50
Output Power	mW	10/20
Short-term Stability (15 Minutes)	dB	≤ ±0.02
Long-term Stability (8 Hours)	dB	≤ ±0.05
Fiber Type	-	SMF-28e/PM1300 Panda
Optical Connector	-	FC/APC

Type	Single Fiber	Dual Fiber
Grade	Premium	Premium
Wavelength (nm)	1310+30, 1550+30, 1310/1550+30, 980/1550+30 or custom wavelength
Insertion Loss (Typ.) (dB)	0.17	0.2
Insertion Loss (Max.) (dB)	0.2	0.28
Return Loss (Typ.)	65	65
Beam Diameter (mm)	<0.45 (1.8mm Lens) <0.35 (1.0mm Lens)	<0.45 (1.8mm Lens) <0.35 (1.0mm Lens)
Operating Temperature( ° C )	-20 ~+75
Storage Temperature ( ° C )	-40 ~+85
Dimensions (mm)	1.8(OD) Lens(Standard)	2.40x10 or 3.2x10 gold plated SS tube or 2.78x10 glass tube or custom size
1.0(OD) Lens(Mini-size)	1.40x9 or 2.8x10 gold plated SS tube 2.0x9 glass tube or custom size

Characteristics

* Low Insertion Loss and Return Loss
* Low Back Reflection
* High Extinction Ratio
* Low Insertion Loss
* Wide Operating Wavelength and Temperature
* Scientific design with serious processing art

Applications

* Optical cable jumper or pigtail cable
* Laser Beam Collimating
* Optical cable jumper or pigtail cable
* PM Isolator and PW WDM
* Laser Beam Collimating
