- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu
-
Dimension(Long * Breadth * High):
-
6120*2410*3763
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
0.4
-
Product name:
-
backhoe excavator four Wheel Drive mini loader EBL08-12
-
Color:
-
bule/yellow/white/grey
-
Engine brand:
-
Changchai
-
Key words:
-
backhoe loader
-
Application:
-
Excavating and loading
-
Load capacity:
-
0.4
-

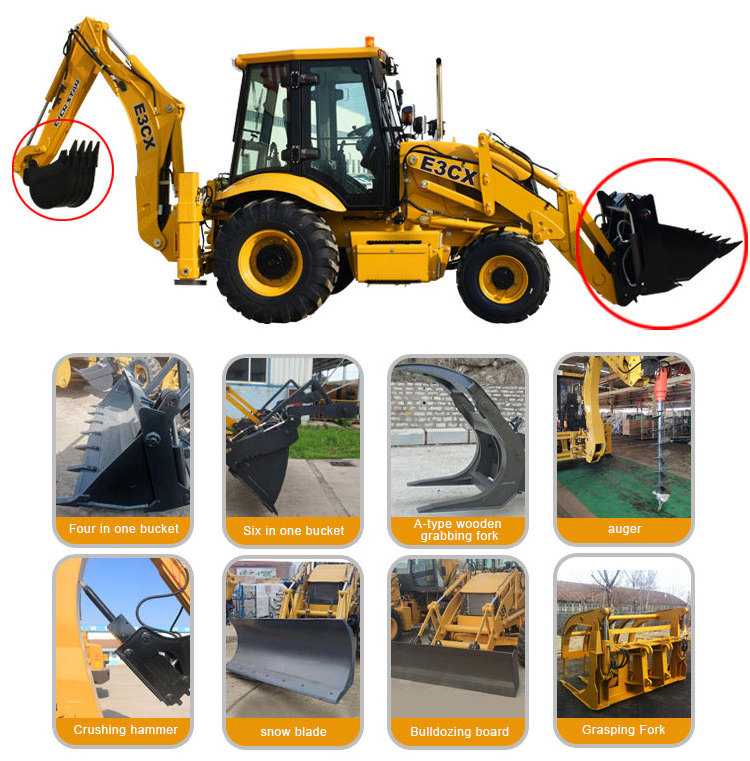

Attachments:
-
excavation bucket
-
Operating weight:
-
1ton
-
After-sales Service Provided:
-
24h Online Support
-
After Warranty Service:
-
Video Technical Support
Quick Details
-
Engine Brand:
-
Cummins
-
Power:
-
74KW
-
Brand Name:
-
everstar
-
Place of Origin:
-
Jiangsu
-
Dimension(Long * Breadth * High):
-
6120*2410*3763
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
0.4
-
Product name:
-
backhoe excavator four Wheel Drive mini loader EBL08-12
-
Color:
-
bule/yellow/white/grey
-
Engine brand:
-
Changchai
-
Key words:
-
backhoe loader
-
Application:
-
Excavating and loading
-
Load capacity:
-
0.4
-
Attachments:
-
excavation bucket
-
Operating weight:
-
1ton
-
After-sales Service Provided:
-
24h Online Support
-
After Warranty Service:
-
Video Technical Support

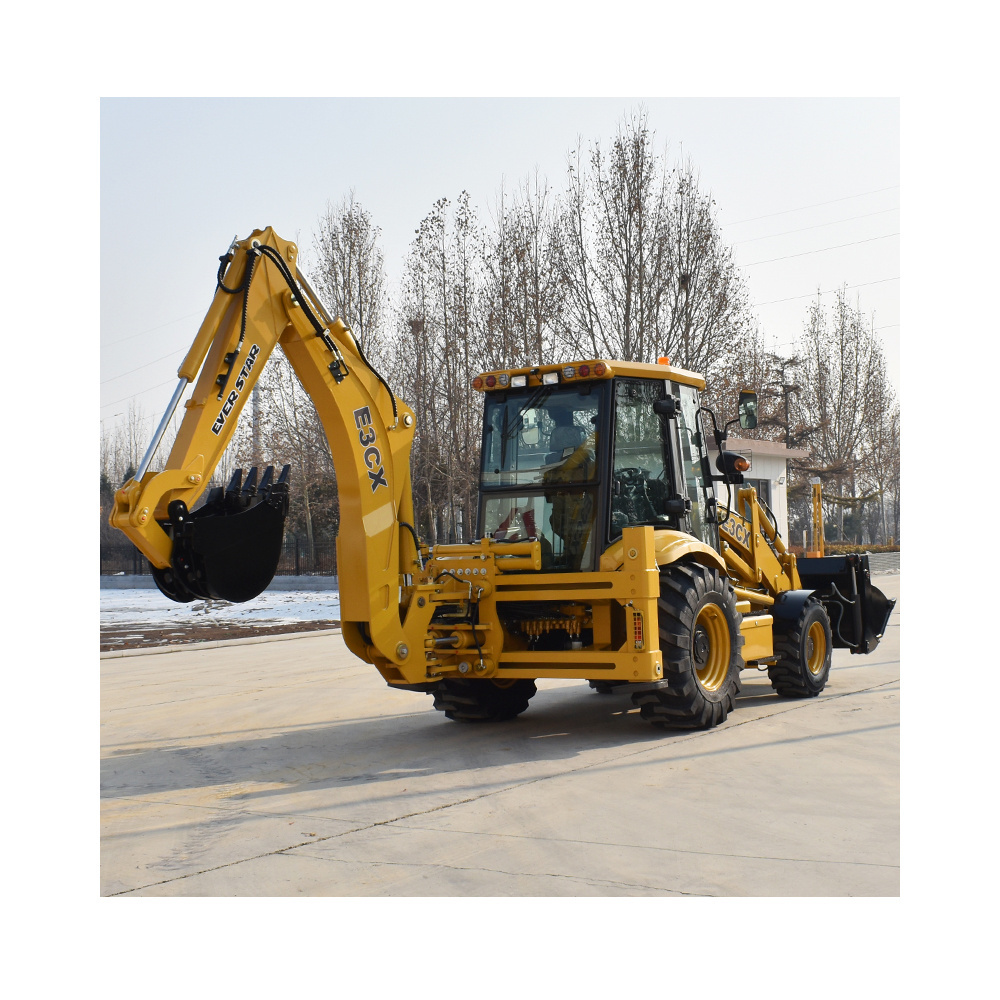

Product Display
Details Images
|
|
E3CXT
|
E4CX
|
E3CX
|
E5CX
|
|
Length(with bucket on ground)
|
7600mm
|
6450±80mm
|
6120×2410×3763
|
6120×2340×3600
|
|
Overall width（at stabilizer ）
|
2302mm
|
2302mm
|
2302mm
|
2302mm
|
|
Overall width（At the edge of the tyre）
|
2250
|
2480±10mm
|
2250
|
2250
|
|
Rated load
|
2500KG
|
2500KG
|
2500KG
|
2500KG
|
|
Operating weight
|
7820kg
|
9120kg
|
8200KG
|
8200KG
|
|
Rated bucket capacity
|
1m³
|
1.2m³
|
1.0m3
|
1.0m3
|
|
Max. dump clearance
|
2720 mm
|
3050±50 mm
|
2742mm
|
2742mm
|
|
Max. digging depth
|
4080 mm
|
3820±20 mm
|
4082mm
|
4082mm
|
|
Max. digging radius
|
5310 mm
|
5260±20mm
|
5310 mm
|
5310 mm
|
|
Max. dumping height
|
3915 mm
|
4115±20mm
|
3915 mm
|
3915 mm
|
|
Max. digging force
|
49KN
|
49KN
|
49KN
|
49KN
|
|
Max. Digging Height
|
5440 mm
|
5510 ±20mm
|
5440 mm
|
5440 mm
|
|
Lifting Capacity at Max. Digging Radius
|
1220kg
|
1220kg
|
1220kg
|
1220kg
|
|
Max. digging depth（telescopic boom）
|
5215±20 mm
|
5070±20 mm
|
5215±20 mm
|
5215±20 mm
|
|
Max. loading height（telescopic boom）
|
4840±20mm
|
4980±20mm
|
4840±20mm
|
4840±20mm
|
|
Max. digging height（telescopic boom）
|
6546±20mm
|
6680±20mm
|
6546±20mm
|
6546±20mm
|
|
Diesel engine
|
CUMMINS 4BTA3.9—C100
|
CUMMINS 4BTA3.9-C100-II
|
CUMMINS 4BTA3.9—C100
|
CUMMINS 4BTA3.9—C100
|
|
Fuel(diesel)
|
130 L
|
130
|
130
|
130
|
|
Engine lubricating oil
|
11 L
|
11 L
|
11 L
|
11 L
|
|
Oil for converter and gear box
|
22 L
|
25L
|
22L
|
22L
|
|
Oil for hydraulic system
|
130 L
|
130
|
130
|
130
|
|
Oil for driving axles（F/R）
|
9.1 L+16 L
|
8kg
|
9.1/17kg
|
9.1/17kg
|
|
|
|
|
|
|
