Quick Details
-
Voltage:
-
380
-
Dimension(L*W*H):
-
10*5*4
-
Weight:
-
4000
-
Name:
-
Plastic Granulator Machine
-
Keywords:
-
Pp Pe Plastic Granulating Machine
-
Application:
-
Waste Plastic Recycling
-
Raw material:
-
PP PE Film Bags Material
-
Final product:
-
Small Plastic Pellet
-
Product name:
-

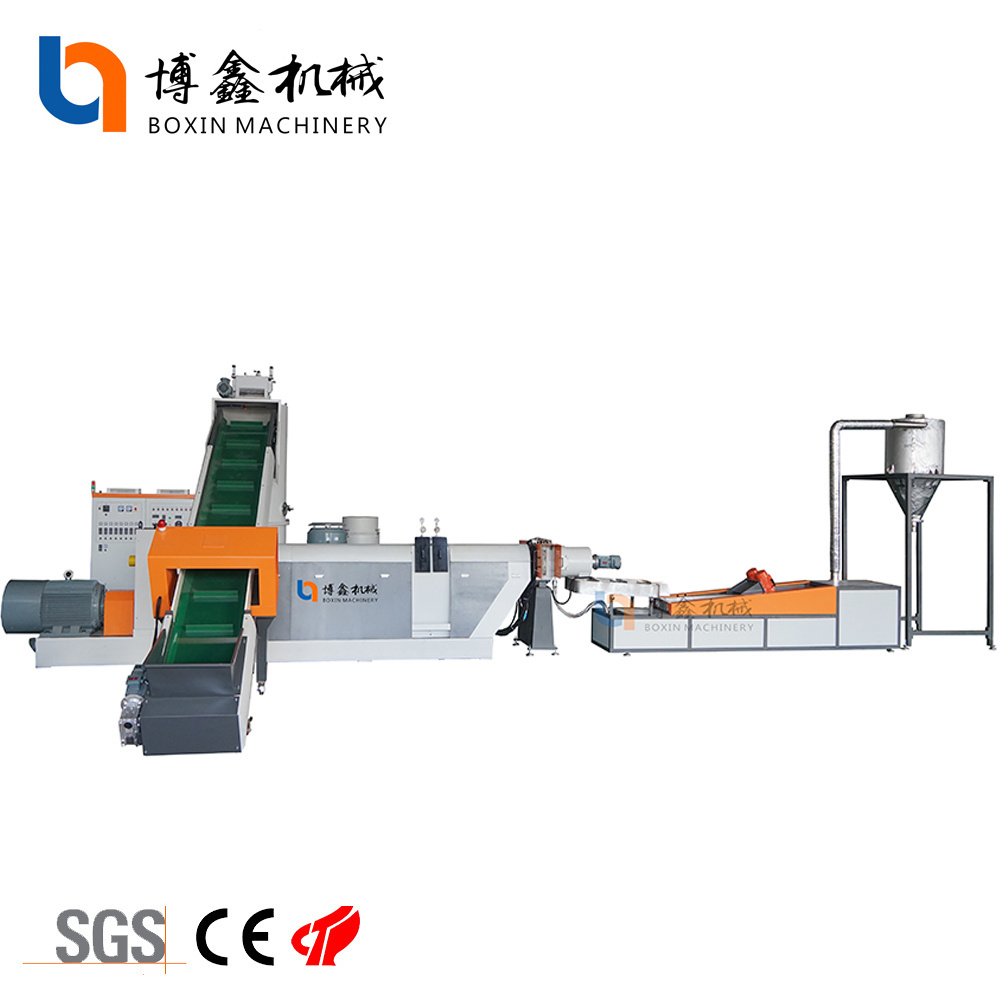

Plastic Granulator Pelletizing Granules Making Machine
-
Function:
-
Make Recycle Plastic Granules
-
Machine Type:
-
Single Stage Pelletizing
-
Material Processed:
-
Compacting ---pelletizer---cutting ---drying
-
Usage:
-
Granuate Plastic Films
Quick Details
-
Output (kg/h):
-
150 - 1000 kg/h
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
boxin
-
Voltage:
-
380
-
Dimension(L*W*H):
-
10*5*4
-
Weight:
-
4000
-
Name:
-
Plastic Granulator Machine
-
Keywords:
-
Pp Pe Plastic Granulating Machine
-
Application:
-
Waste Plastic Recycling
-
Raw material:
-
PP PE Film Bags Material
-
Final product:
-
Small Plastic Pellet
-
Product name:
-
Plastic Granulator Pelletizing Granules Making Machine
-
Function:
-
Make Recycle Plastic Granules
-
Machine Type:
-
Single Stage Pelletizing
-
Material Processed:
-
Compacting ---pelletizer---cutting ---drying
-
Usage:
-
Granuate Plastic Films
Welcome to BOXIN
Product Description
01. Belt conveyor
Belt conveyor : PVC material
Metal detector is optional to prevent metal materials from entering the extruder with raw materials (film)
02. Compactor
Double layer cutting disc, more efficient feeding and 10% - 20% increase in output
Hydraulic opening and hydraulic lifting, safe and easy to maintain .
03. Single Screw Extruder
Screw and barrel : 38CrMoAl, nitriding treatment
Heater : Ceramic + stainless steel cover
Vacuum pump exhaust, double exhaust
04. Water Ring Cutting Machine
Die head material : 38CrMoAlA
Material of water ring cover : stainless steel 304
Horizontal design with linear guide rail, easy operation and maintenance
Pneumatic adjustment makes the cutting blade in soft contact with the die surface, so as to achieve 100% contact between the blade and the die head and avoid die surface damage.
05. Vibrating Dehydrator
The linear vibrating screen uses the vibrating motor as the vibration source to make the pellets throw on the screen and move forward in a straight line. Several sizes of sieves are available for discharging from their respective outlets.
Line screen fully enclosed structure, no dust and overflow, automatic discharge, etc., more suitable for 24 hour assembly line operation
Low energy consumption, high output, simple structure and easy maintenance
Combination of filtration and dehydration, high efficiency and power saving
06. Two Stage Granulator (Optional)
One stage granulator, two stage granulator which we are all supply
|
Model
|
BXC2-85
|
BXC2-100
|
BXC2-120
|
BXC2-150
|
BXC2-160
|
BXC2-180
|
|
Capacity(KG/H)
|
100-200
|
200-300
|
300-400
|
500-600
|
700-800
|
800-1000
|
|
L/D
|
1:33
|
1:33
|
1:33
|
1:36
|
1:36
|
1:36
|
|
Install Power(KW)
|
110
|
135
|
160
|
310
|
370
|
520
|
|
Compactor Power(KW)
|
37
|
45
|
55
|
110
|
132
|
185
|
|
Main extruder Power(KW)
|
55
|
75
|
90-110
|
185
|
220
|
280-315
|
|
Screen exchanger
|
160mm
|
200mm
|
250mm
|
350mm
|
400mm
|
3000cm*2
|
|
Staff requirement
|
2-3
|
2-3
|
2-3
|
2-3
|
2-3
|
2-3
|
|
Overall size(L*W*H)
|
9*5*4
|
10*5*4
|
12*5*4
|
13*6*4
|
13*6*4
|
13*6*4
|
