Quick Details
-
Brand Name:
-
/
-
Model Number:
-
S6805-54HT
-
Place of Origin:
-
Beijing, China
-
Model:
-
S6805-54HT
-
Keywords:
-
H3C S6805-54HT for 10GE access data center network switch
-
Warranty:
-
12 Months
-
Condition:
-
New
-
Device Virtualization:
-
IRF2 DRNI
-
Network Virtualization:
-
VXLAN MP-BGP EVPN
-
VLAN(802.1Q):
-
Port-based VLAN (quantity: 4094) Default VLAN
-
IP routing:
-
Stating routing, RIPv1/v2, OSPFv1/v2/v3, BGP, IS-IS
-
MPLS:
-
MCE MPLS VPN and VPLS
-
Console port:
-
Console :1; Mini USB Console: 1
Quick Details
-
Transmission Rate:
-
1001.7MPPS
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2.16Tbps
-
Brand Name:
-
/
-
Model Number:
-
S6805-54HT
-
Place of Origin:
-
Beijing, China
-
Model:
-
S6805-54HT
-
Keywords:
-
H3C S6805-54HT for 10GE access data center network switch
-
Warranty:
-
12 Months
-
Condition:
-
New
-
Device Virtualization:
-
IRF2 DRNI
-
Network Virtualization:
-
VXLAN MP-BGP EVPN
-
VLAN(802.1Q):
-
Port-based VLAN (quantity: 4094) Default VLAN
-
IP routing:
-
Stating routing, RIPv1/v2, OSPFv1/v2/v3, BGP, IS-IS
-
MPLS:
-
MCE MPLS VPN and VPLS
-
Console port:
-
Console :1; Mini USB Console: 1
Details Images
Installation Instructions
We will test all the switches before shipping. All the switches are new and original
If you have Any Questions,
CLICK ME!!!
|
|

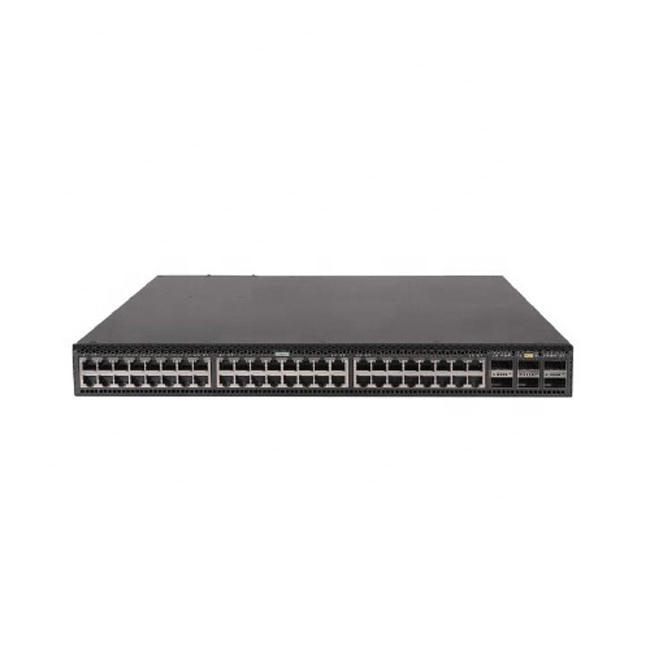

6805 switch h3c s6805 switch 48 port 10GE access data center network switch H3C S6805-54HT
|
|
Dimensions (H × W × D)
|
44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in)
|
|
Console port
|
Console :1; Mini USB Console: 1
|
|
Flash/Memory
|
4GB/8GB
|
|
USB port
|
1
|
|
1/10G Base-T port
|
48
|
|
QSFP port
|
6
|
|
QSFP28 port
|
6
|
|
Power consumption (typical)
|
Double AC : 229W
|
|
VLAN(802.1Q)
|
Port-based VLAN (quantity: 4094)
Default VLAN |
|
IP routing
|
Stating routing, RIPv1/v2, OSPFv1/v2/v3, BGP, IS-IS
ECMP, VRRP, policy-based routing BGP4+ for IPv6, VRRP, IPv6 policy-based routing RIPng, OSPFv3, ISISv6 |
|
IPv6 routing
|
RIPng, OSPF v3, IS-IS v6
BGP4 + for IPv6, VRRP, IPv6 routing strategy ND (Neighbor Discovery) PMTU ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3 IPv6 Portal IPv6 tunnel |
|
MPLS
|
MCE
MPLS VPN and VPLS |
|
MSTP
|
802.1D(STP)/802.1w(RSTP)/802.1s(MSTP)
PVST+/RPVST+ STP Root Guard BPDU Guard |
Product Selling Points
High scalability
With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack, enabling IRF2 stacking on the new device. New devices can be managed with a single IP, making it possible to build a scalable, easy-to-manage data center network platform.
High reliability
In IRF2 stack, all information in control plane and data plane has redundant backup to realize uninterrupted layer-3 forwarding which greatly enhances the reliability and high performance of IRF2 group, eliminates single point of failure and avoids business interruption.
Load balancing
IRF2 supports cross-device link aggregation, allowing upstream and downstream to be connected to more than one physical link. This creates another layer of network redundancy, and boosts the network resource utilization.
