Quick Details
-
Brand Name:
-
D.J
-
Marine Valve:
-
marine blind valve
Quick Details
-
Port Size:
-
DN50-300
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
Z03
-
Brand Name:
-
D.J
-
Marine Valve:
-
marine blind valve

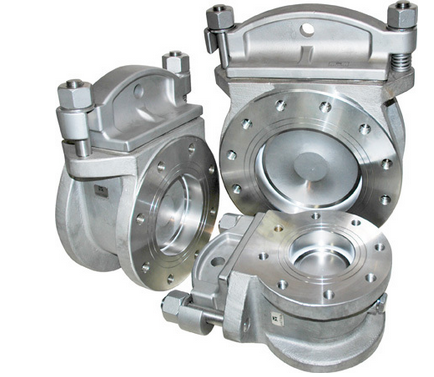

Blind flange valves ensures blinding between cargo tanks as well as on manifolds on chemical tankers and product tankers, without any spills or leaks. Our range of blind flange valves are manual, for safety through visual inspection, they ensure full flow and allow drainage of leftover cargo through the valve body.
- Flange standard: DIN 2501
- Bonnet connection: Bolted
- Connection type: Flanged
Crude oil products, chemical tankers and rigs.
Corrosive fluids. Flammable media. Liquified gas. Steam. Thermal oil. Fuel oil, lubricating oil and flammable hydraulic oil. Cargo oil. Air. Gas. Non-flammable hydraulic fluid. Boiler feedwater, condensate. Seawater and freshwater.
Other flange connections on request.
| No. | Part | Material |
| 1 | Body | Stainless Steel |
| 2 | Top cover | Stainless Steel |
| 3 | Disc | Stainless steel 1.4401 (AISI316) |
| 4 | Disc sealing | PTFE |
| 5 | Tightening nut | Stainless steel 1.4401 (AISI316) |
| 6 | Top cover seal | Glass fibre reinforced PTFE |
| 7 | Drain plug | Stainless steel 1.4401 (AISI316) |
As more information needed, pls kindly contact with us.
