Quick Details
-
Condition:
-
100% NEW
-
Weight:
-
738
-
Suitable Excavator(ton):
-
10-20
-
Max Jaw Opening:
-
1600±20mm
-
Brand:
-
XUVOL
-
Model:
-
WYJ-150S
-
Product name:
-

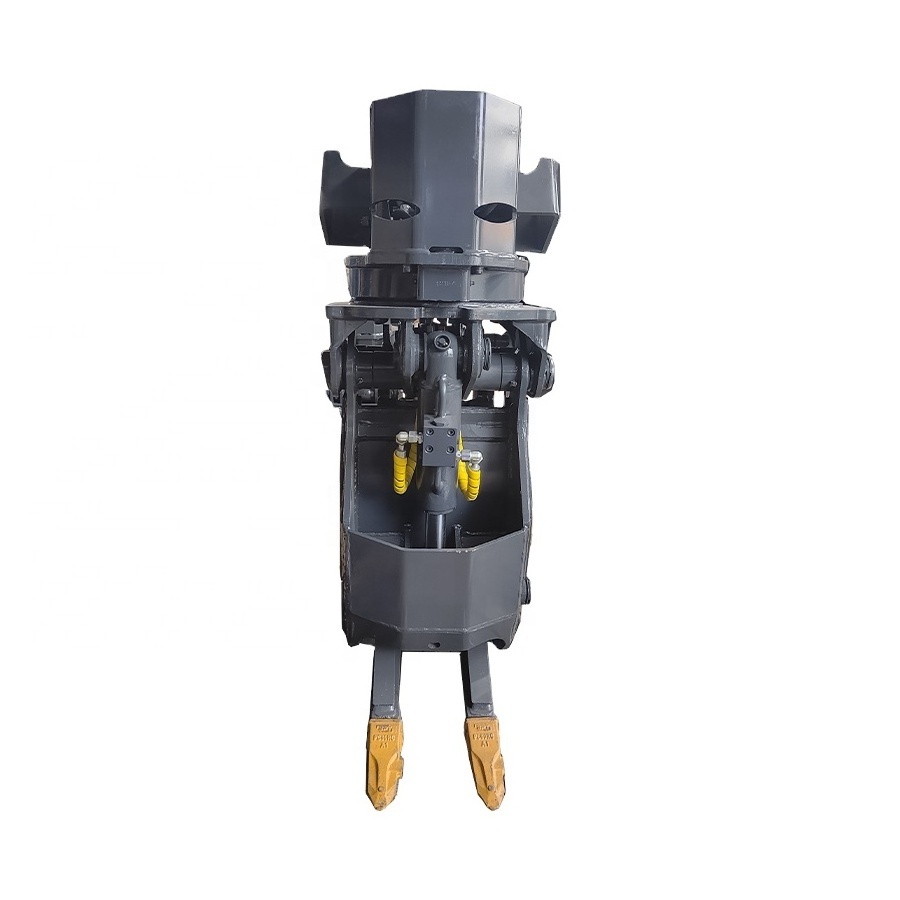

WYJ-150S Stone grapple
-
Keywords:
-
Stone grapple,hydraulic grapple stone
-
Application:
-
Excavator attachment grapple
-
Usage:
-
Loading and unloading forage, sugar cane, stone, etc.
-
Motor:
-
Cycloid motor
-
Raw material:
-
The main structural parts are made of Q355B steel plate
-
Package:
-
Transparent plastic film and wooden box
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
XUVOL
-
Model Number:
-
WYJ-150S
-
Condition:
-
100% NEW
-
Weight:
-
738
-
Suitable Excavator(ton):
-
10-20
-
Max Jaw Opening:
-
1600±20mm
-
Brand:
-
XUVOL
-
Model:
-
WYJ-150S
-
Product name:
-
WYJ-150S Stone grapple
-
Keywords:
-
Stone grapple,hydraulic grapple stone
-
Application:
-
Excavator attachment grapple
-
Usage:
-
Loading and unloading forage, sugar cane, stone, etc.
-
Motor:
-
Cycloid motor
-
Raw material:
-
The main structural parts are made of Q355B steel plate
-
Package:
-
Transparent plastic film and wooden box
-
After-sales Service Provided:
-
Online Support
Product Description
The 360-degree continuous full-rotation
double cylinder grapple
is mainly suitable for loading and unloading wood, pasture, sugar cane, stone,scrap metal processing, etc. It is widely used in farms, forest farms, quarries, scrap yards and other places to realize agricultural mechanization, improve work efficiency and reduce operating costs.
The double cylinder grapple is a excavator attachment which with strong grapple force and strong structure. It is suitable for harsh construction conditions such as rock, waste, scrap steel and other material handling and sorting, and achieves low cost and high eficiency. As one of the leading manufacturers of excavator attachments in China. Xuvol has a full range of double cylinder grapples for 6-30 ton excavators,which are suitable for 90% of excavators of various brands and models.
Features
1.
Grapple control mode adopts electronic control handle operating system,equipped with imported solenoid valve, can control the speed.
2.
Continuous full rotation of 360 degrees.
3.
Imported slewing motor with brake brake.
4.
Double oil cylinder set safety holding valve.
5.
The Five-Jaw design structure design is suitable for various working conditions.
Schematic diagram
Specification
|
Xuvol Grapple Specifications
|
WYJ-150S Stone grapple
|
|
|
|
Saw guide plate length
|
Grapple Type
|
double cylinder/Five-Jaw
grapple/without connecting bar
|
|
|
|
Steel material
|
Q355B
|
|
|
|
Optional electric control
|
support
|
|
|
|
Height when grappleed(mm)
|
1620
|
|
|
|
Height when opened(mm)
|
1540
|
|
|
|
Width of inner/outer grapple(mm)
|
322/492
|
|
|
|
Open Width Max(mm)
|
1600±20
|
|
|
|
Minimum holding circle(mm)
|
φ110
|
|
|
|
Maximum holding circle(mm)
|
φ600
|
|
|
|
Weight (excluding rotation)kg
|
738
|
|
|
|
Suitable Excavator(Ton)
|
10-20
|
|
|
Rotation Support
|
Rotation method(grapple)
|
External meshing vertical rotation
|
|
|
|
Module / raceway diameter
|
M5/315
|
|
|
Rotation Motor
|
Motor type
|
Cycloid motor
|
|
|
|
Pressure(Mpa)
|
16
|
|
|
Paint color
|
Rod diameter/bore size
|
45/80
|
|
|
|
Pressure(Mpa)
|
21
|
|
Grapple competitor analysis
High-end log grapple.With high-end hydraulic lock.Leak back to the tubing.Return check valve.
Mid- to low-end log grapple.Without high-end hydraulic lock.Without leak back to the tubing.Ordinary inexpensive plate solenoid valve.
Import cartridge solenoid valve.Easy to install and fix.Relays.High-end handle.Silicone cable.Tubing, line protection rubber.
Ordinary transistor mode controller.Normal handle. Plain rubber cable. There is no protective plate for connector. Solenoid valves are prone to rust without nickel plating.
The fixes plate thickness of slewing support is 20mm. Thickness of clamp knife plate is 14mm. Thicknesses of bracket steel is 16mm
The fixes plate thickness of slewing support is 16mm. Thickness of clamp knife plate is 12mm. Thicknesses of bracket steel is 14mm.
Packing & Delivery
1.
The packaging of Log grapple is guaranteed not to be damaged under normal transportation and storage conditions.
2. The following documents should be provided in the packaging box: product certificate, product use and maintenance instructions and parts catalog, product packing list, drawings required for production and installation and drawings of wearing parts, and a list of random tools, wearing parts and spare parts.
3. Pack the stretch film on the pallet or in wooden box.
2. The following documents should be provided in the packaging box: product certificate, product use and maintenance instructions and parts catalog, product packing list, drawings required for production and installation and drawings of wearing parts, and a list of random tools, wearing parts and spare parts.
3. Pack the stretch film on the pallet or in wooden box.
