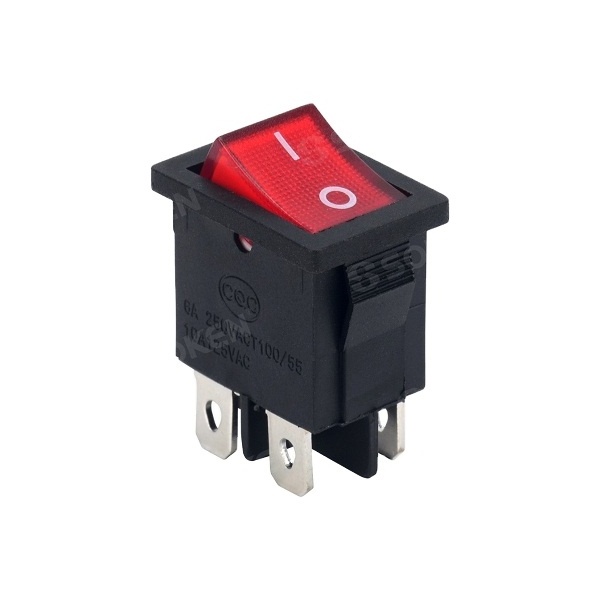

RK2-03 Dpst 4 pin electrical red Rocker Switch 6a 250vac 230v t85

RK2-03 Dpst 4 pin electrical red Rocker Switch 6a 250vac 230v t85

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.01

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: RK2-03

Max. Current:: 10A

Mechanical Life:: 30000cycles

Category:: Rocker switch Miniature

Function:: ON-OFF/DPST Illuminated

Electrical life:: 10000cycles

Certificates:: RoHS CQC UL TUV(t100)

Panel cutout:: 19mm x12.8mm

Terminal spec:: 4.8mm x0.8mm

Withstand Voltage:: >3000VAC /5s

Operating force:: 4.2±1.5N

Housing /Actuator Material:: PA66/ PC

Color and Marking:: can be specified

Certification:: UL,VDE,TUV,ENEC,KEMA,KC,CQC,CE

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: SOKEN

Model Number:: RK2-03

Max. Current:: 10A

Mechanical Life:: 30000cycles

Category:: Rocker switch Miniature

Function:: ON-OFF/DPST Illuminated

Electrical life:: 10000cycles

Certificates:: RoHS CQC UL TUV(t100)

Panel cutout:: 19mm x12.8mm

Terminal spec:: 4.8mm x0.8mm

Withstand Voltage:: >3000VAC /5s

Operating force:: 4.2±1.5N

Housing /Actuator Material:: PA66/ PC

Color and Marking:: can be specified

Certification:: UL,VDE,TUV,ENEC,KEMA,KC,CQC,CE

Dpst 4 pin electrical red Rocker Switch 6a 250vac 230v t85

Rocker Switch

---Production Description---

Model

RK2-03

Function

ON OFF /SPST /2pin (01)

ON ON /SPDT /3pin (02)

ON OFF ON /SPTT /3pin (03)

ON OFF with lamp /SPST /3pin (04)

- --Production Specification---

Rating	250VAC 10A or 125VAC 6A
Contact Resistance	100MΩ Max
Dielectric Strength	1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
Operating Temperature	-25~85°C
Insulated Resistance	500VDC, 100MΩ Min
Electrical Life	≥10,000 cycles
Pins (Terminals)	4 pins
Housing Material	PA66
Button Material	PC

- --Production Material---

Base plastic	Nylon 66
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Steel Wire
Waterproof Material	PVC

- -- Advantage ---

. CQC,UL,TUV,KEMA,VDE, CE,RoHS approved

. Used for home appliance and electronic equipments

. Machining as you required

. Custom made according your samples, drawings, pictures or photos

- --Production Display---

Installation drawing

---Rocker Model Description---

- --Company Display---

Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus .

1. Factory Appearance

2. Stamping and Injection Molding workshop

3. Semi-automatization work shop 4. Assemblage workshop

5. Warehouse
