Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
CJK22-**X2-N
-
Mounting hole:
-
22mm
-
Material:
-
flame-retardant PA66
-
Operation type:
-
Rotating locking or rotating reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
ISO9001 CCC CE ROSH
-
Product name:
-
CJK22 series 22mm 2 position selector push button switch on off
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
AC-15 AC220V/6A
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
CJK22-**X2-N
-
Mounting hole:
-
22mm
-
Material:
-
flame-retardant PA66
-
Operation type:
-
Rotating locking or rotating reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
ISO9001 CCC CE ROSH
-
Product name:
-
CJK22 series 22mm 2 position selector push button switch on off
-
Certification:
-
CE

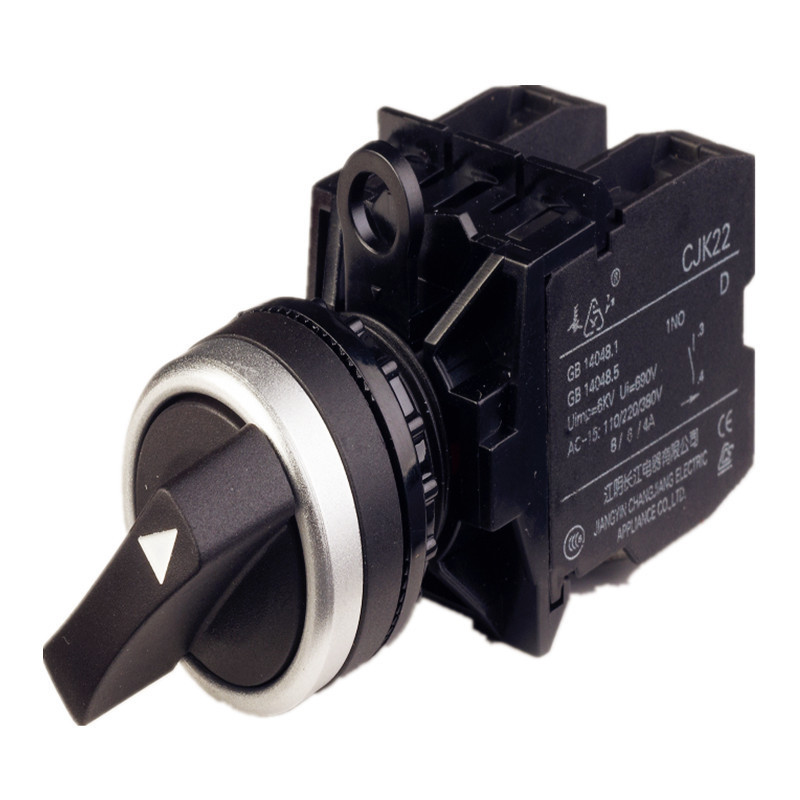

CJK22 series 22mm plastic 2 position selector push button switch on off
Outline
( Matching module CJK22-A or CJK22-B ) ( Matching module CJK22-D or CJK22- E )
|
CJK22-**X2-N |
||||||||
|
Name |
CJK22 series gear selector push button switch |
|||||||
|
Products Standard |
GB14048.5 |
|||||||
|
Operation Condition |
Altitude height |
Environment temperature |
Storage temperature |
Relative humidity |
Pollution class |
Install type |
||
|
≤2000m |
-25 ℃ ~ +70 ℃ |
-40 ℃ ~ +70 ℃ |
≤90% |
3 |
Ⅲ |
|||
|
Main technical index |
|
Rated insulated Voltage |
690V |
|||||
|
Insulated resistance |
≥50MΩ |
|||||||
|
Front protect class |
IP65 |
|||||||
|
Withstand Voltage |
1.89KV/5S |
|||||||
|
Work Frequency |
50Hz |
|||||||
|
button parameter |
Stipulated hot current Ith |
10A |
||||||
|
Contact resistance |
≤50mΩ |
|||||||
|
Rated working Voltage /Current |
AC-15 |
DC-13 |
||||||
|
110V/8A |
110V/1 A |
|||||||
|
220V/6A |
220V/0.6A |
|||||||
|
380V/4A |
|
|||||||
|
Electrical life |
push button switch 500000times/ rotary button switch 200000times |
|||||||
|
Mechanical life |
momentary push button switch 1000000times illuminated push button switch 500000times rotary push button switch 200000times |
|||||||
|
lamps parameter |
Rated working Voltage /Current |
DC 6V/12V/24V/36V/48V/60V/110V/220V AC 220V/380V ≤15mA |
||||||
|
Life of signal lamps |
30000h |
|||||||
|
|
Size of mounding hole |
φ22 hole |
||||||
Certificate
