Quick Details
-
Model Number:
-
WL-20C
-
Model:
-
WL-20C
-
Voltage:
-
AC 220V/110V;50Hz/60Hz
-
Power:
-
80W
-
Weight:
-
45Kg
-
Binding diameter:
-
5-35mm
-
Binding circle:
-
Adjustable (2-6 circles suggested)
-
Twist speed:
-
1-2 levels (level 2 suggested)
-
Twist ties:
-
Encased iron core, PE material
-
Twist Shape:
-
O shape & 8 shape
Quick Details
-
Use:
-
tying
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CROWN
-
Model Number:
-
WL-20C
-
Model:
-
WL-20C
-
Voltage:
-
AC 220V/110V;50Hz/60Hz
-
Power:
-
80W
-
Weight:
-
45Kg
-
Binding diameter:
-
5-35mm
-
Binding circle:
-
Adjustable (2-6 circles suggested)
-
Twist speed:
-
1-2 levels (level 2 suggested)
-
Twist ties:
-
Encased iron core, PE material
-
Twist Shape:
-
O shape & 8 shape
Specification

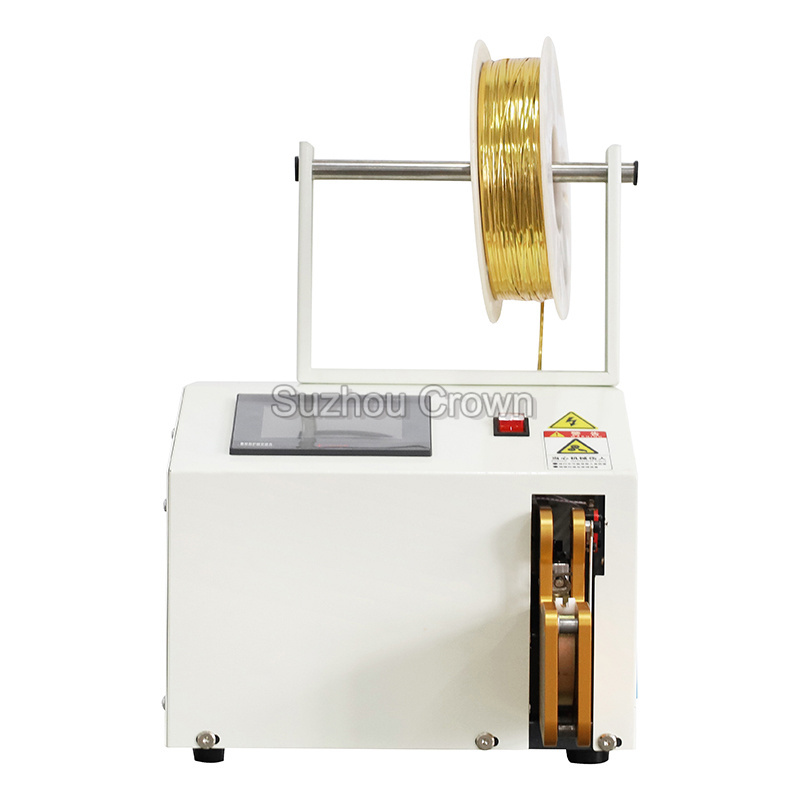

Semi -automatic universal cable tie tying machine wire coil binding machine
This semi automatic wire and cable tying machine is suitable for bundling USB cables, AC power cord, DC power cord, earphone cables and much more.
Used for:
1.Compact and lightweight, simple and convenient operation, fast speed, high efficiency and good stability
2.Simply place the wire to the tying mouth, the machine will start tying automatically
3.The length of the cable tie and the number of twisted coils can be set as requested
4.Suitable for tying USB cables, AC power cord, DC power cord, earphone cables and more
5.Suitable for tying 8 shape and round shape wires
|
Model
|
WL-20C
|
|
Voltage
|
AC 220V/110V;50Hz/60Hz
|
|
Power
|
80W
|
|
Binding diameter
|
5-35mm
|
|
Binding circle
|
Adjustable (2-6 circles suggested)
|
|
Twist speed
|
1-2 levels (level 2 suggested)
|
|
Twist ties
|
Encased iron core, PE material
|
|
Twist Shape
|
O shape & 8 shape
|
|
Weight
|
20KG
|
|
Dimension
|
440x400x360mm (LxWxH)
|
Product Description
Applicable Samples
Self-test whether the product matches, if you are not sure, please contact us to recommend a suitable model
Recommend Products
|
Model
|
WL-40A
|
WL-35A
|
WL-30A
|
||
|
Length of 8 Shape
|
50-200mm(can be adjusted, can be customized)
|
|
|
||
|
Dia of Round Shape
|
Φ50-200mm(can be adjusted, can be customized)
|
|
|
||
|
Winding Speed
|
Can be set, 30 speed options
|
|
|
||
|
Number of Windings
|
Can be set, 1-999 cycles
|
|
|
||
|
Bundling Diameter
|
Φ25-65mm
|
Φ20-45mm
|
Φ5-40mm
|
||
|
Cable Tie Length
|
130-260mm
|
110-200mm
|
60-140mm
|
||
|
Number of Bindings
|
Can be set, 2-6 cycles is good
|
|
|
||
|
Cable Tie
|
Plastic or rubber coated iron core wire
|
|
|
||
|
Power Supply
|
110/220VAC,50/60Hz
|
|
|
||
|
Power
|
80W
|
|
|
||
|
Dimensions
|
32*45*50cm
|
|
|
||
|
Weight
|
38kg
|
38kg
|
30kg
|
||
