Quick Details
-
Dimension(L*W*H):
-
12500*4200*3980
-
Weight:
-
35000 KG
-
Marketing Type:
-
Hot selling 2022
-
Product name:
-
Mobile Jaw Crusher Machine
-
Keyword:
-
mobile crusher price
-
Usage:
-
Crushing Work
-
Color:
-
Customer Requirement
-
engine brand:
-
Cummins
-
Material:
-
Hardox+BISalloy+Q345
-
Chassis brand:
-
U.K.
-
host of mobile crusher:
-
Metso
-
Model:
-
customer's requirements
-
After-sale service:
-
24 Hours Service Hotline
Quick Details
-
Application:
-
crusher stone
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ORNATE
-
Dimension(L*W*H):
-
12500*4200*3980
-
Weight:
-
35000 KG
-
Marketing Type:
-
Hot selling 2022
-
Product name:
-
Mobile Jaw Crusher Machine
-
Keyword:
-
mobile crusher price
-
Usage:
-
Crushing Work
-
Color:
-
Customer Requirement
-
engine brand:
-
Cummins
-
Material:
-
Hardox+BISalloy+Q345
-
Chassis brand:
-
U.K.
-
host of mobile crusher:
-
Metso
-
Model:
-
customer's requirements
-
After-sale service:
-
24 Hours Service Hotline
Product Description
Specification
OP150-EL

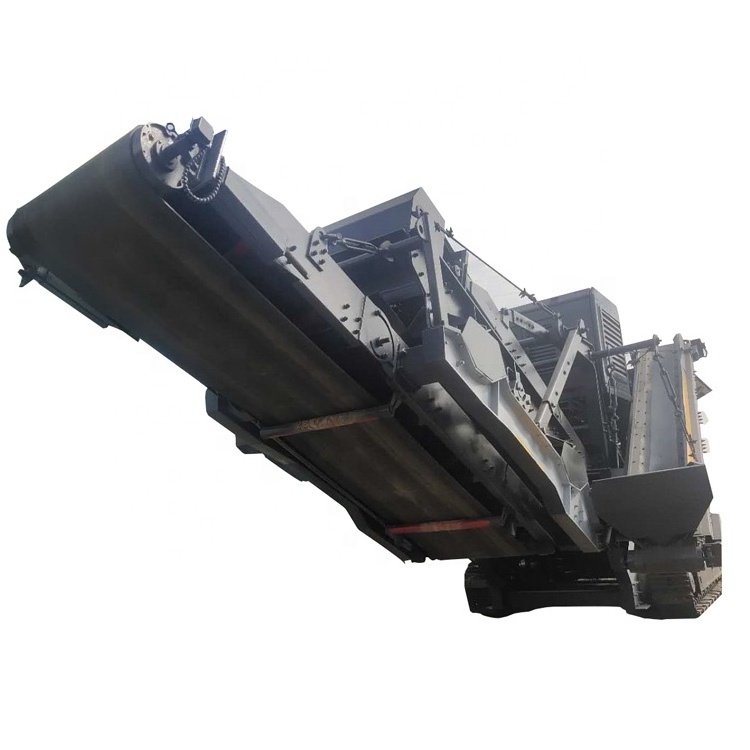

Mobile JAW Crusher
Mobile JAW Crusher is widely used in coarse and medium crushing of hard materials in mining,water conservancy,transportation railway,cement,building materials, metallurgy, chemical industry, electric power,construction and other industries.
|
Main Technical Parameters
|
|
|
||
|
Size(mm)
|
12500*4200*3980
|
Expansion
|
||
|
Weight(kg)
|
35000
|
|
||
|
Efficiency(T)
|
100-150
|
According to work conditions
|
||
|
Working
|
Electric
|
Optional oil and electricity
|
||
|
Working power(kw)
|
92
|
Cummins Emgine
|
||
|
Max feeding size(mm)
|
500
|
|
||
|
Feeding height(mm)
|
3980
|
|
||
|
Power(KW)
|
180
|
|
||
|
Primary screening size(mm)
|
60
|
Optional
|
||
|
Feed port size(mm)
|
500*800
|
|
||
|
Track size(mm)
|
400*3800
|
|
||
|
Max gradeability(°）
|
≤22
|
|
||
Advantage 1
Strong crushing ability and low energy consumption.
Compact structure,small footprint,300 square meters can work.
Advantage 2
* The crushed stone particles are good and the output is large, up to 100-150 t per hour.
* The transition is convenient.
* Noise as low as 90 decibels.
OP260-EL
Mobile JAW Crusher
Mobile Jaw Cusher is widely used in coarse and medium crushing of hard materials in mining,water conservancy, transportation,
railway, cement, building materials, metallurge, chemical industry ,electric power, construction and other industries.
railway, cement, building materials, metallurge, chemical industry ,electric power, construction and other industries.
|
Main Technical Parameters
|
|
|
||
|
Size(mm)
|
14500*4200*3980
|
Expansion
|
||
|
Weight(kg)
|
45000
|
|
||
|
Efficiency(T)
|
150-200
|
According to working conditions
|
||
|
Working
|
Electric
|
Optional oil and electricity
|
||
|
Walking power(kw)
|
109
|
Cummins engine
|
||
|
Max feeding size(mm)
|
600
|
|
||
|
Feeding height(mm)
|
3980
|
|
||
|
Power(KW)
|
220
|
|
||
|
Primary screnning size(mm)
|
60
|
Optional
|
||
|
Feed port size(mm)
|
600*900
|
|
||
|
Track size(mm)
|
400*3800
|
|
||
Advantage 1
The crushing plants of the Monde series are used for the precrushing of almost all natural rock and in recycling.
Advantage 2
Mobile crusher station is a full hydraulic drive tracked vehicle chassis with mobile crushing screening equipment. Monde independent research and development.
OP80-EL-H
Wheeled Crusher
Wheeled Crusher is widely used in many industries such as mining,smelting,building materials,highways,railways,water conservancy and chemical industry.It is used for construction waste,mobile crushing operations in mining areas etc.
|
Main Technical Parameters
|
|
|
||
|
Size(mm)
|
7800*2200*2580
|
Expand
|
||
|
Weight(kg)
|
12500
|
|
||
|
Processing power(T)
|
60-80
|
According to working conditions
|
||
|
Working
|
Electric
|
Optional
|
||
|
Walking
|
Wheeled
|
External drive
|
||
|
Maixmum feed size(mm)
|
400
|
|
||
|
Feeding Height(mm)
|
2580
|
|
||
|
Power (kw)
|
45
|
|
||
|
Electrical appliances
|
Chint
|
Optional
|
||
|
Crusher feed port(mm)
|
400*600
|
|
||
Advantage 1
* High crushing efficiency,up to 60-80t per hours.
* The structure is compact and occupies less area, and it can be operated in 300 square meters.
Advantage 2
* Laminated crushing,excellent grain shape,good crushed stone particles.
* The transition is flexible and convenient, with strong applicability.
* The process is simple and easy to operate.
Packing & Delivery
Packing for Mobile Crusher
1. We pack the products by simple pallet or case which is seaworthy.
1. We pack the products by simple pallet or case which is seaworthy.
2. Fast delivery time:
5-7 days
for small quantity, and 2
0-30 d
ays for container quantity.
3. We have a team specialized in packing and loading container, they have rich experienc e, and can load the max quantity products,
which can help customer save the ocean freight.
3. We have a team specialized in packing and loading container, they have rich experienc e, and can load the max quantity products,
which can help customer save the ocean freight.
