Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWANTECH
-
Voltage:
-
220VAC/380VAC
-
Dimension(L*W*H):
-
1000*900*900mm
-
Weight (KG):
-
1200 kg
-
Product Name:
-
Brick Macking Machine
-
Raw material:
-
Sand
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Block Type:
-
Hollow Concrete Brick Machine
-
Color:
-
Customer's Demand
-
Advantage:
-
High Efficiency
-
Application:
-
Buliding Construction
-
Molding cycle:
-
25s
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Vibration frequency:
-
2800-4500r/min
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
Sand/Cement/Clay/Fly Ash
-
Production Capacity (Pieces/8 hours):
-
20000 pcs/8hous
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWANTECH
-
Voltage:
-
220VAC/380VAC
-
Dimension(L*W*H):
-
1000*900*900mm
-
Weight (KG):
-
1200 kg
-
Product Name:
-
Brick Macking Machine
-
Raw material:
-
Sand
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Block Type:
-
Hollow Concrete Brick Machine
-
Color:
-
Customer's Demand
-
Advantage:
-
High Efficiency
-
Application:
-
Buliding Construction
-
Molding cycle:
-
25s
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Vibration frequency:
-
2800-4500r/min

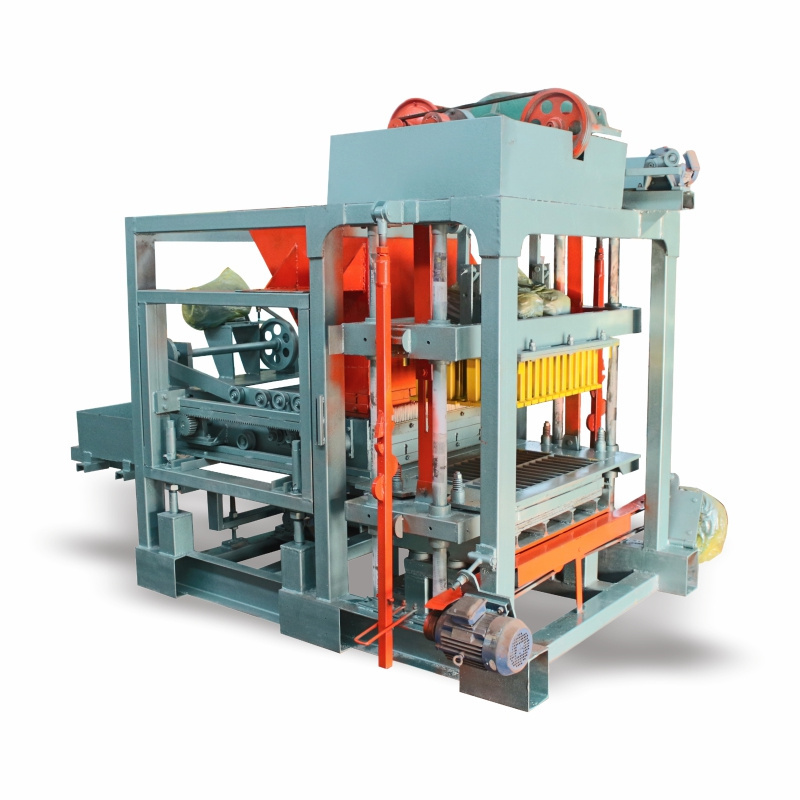

Automatic cement interlock red brick making machine hot selling 4-25 brick machine fired clay mud brick making machines
The
manual block-making machine
is one of our sell best block-making machines, suitable for making all types of
hollow blocks, solid blocks, pavers, curbstones, and so on.
The machine is designed with reasonable structure and advanced technology. Four vertical axis guidance, upper die push and pull, automatic scraping, reducer lifting mode. Thereby increasing block forming speed, increasing block density and reducing raw material consumption. It Only 1 people are needed for production and transportation, and the investment is low, so this manual hollow block machine is very suitable for factories or family businesses.
Specification
|
Model
|
4-25B
|
|
Power
|
18KW
|
|
Weight
|
1200KG
|
|
Voltage
|
380V
|
|
Plate size
|
900 × 550 × 35(mm)
|
|
Molding cycle
|
25S
|
|
Dimension
|
3200 x 2100 x 2350 (mm)
|
|
Total weight
|
3.2(t)
|
|
Production size(mm)
|
400*200*200/390*190*190/390*150*190/390*120*190/240*120*50 etc.
|
|
Raw material
|
Sand, Gravel, Cement, Fly ash, Slag, Steel slag, Perlite, etc.
|
Product Description
The brick moulds are made of
16# manganese steel.
Besides the good raw material, precise line cutting technology and 900℃,carburizing heat treatment technology are all adopted in the process of the brick mould production. So the brick moulds have better performance and longer service time.
The mould can be customized according to your need.
Details Images
1. It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
2. It uses Mode
350 speed
reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
Vibration System:
1.Adopt vibration moulding technology and equipped with three vibrators to assure better quality, larger density and higherstrength of the blocks.
2.Low power can achieve super super moulding effect.
3. It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.
We have a
motor type and diesel engine type
hollow brick-making machine. You can choose according to your requirement.
1. Motor type hollow brick-making machine( Inclined push type and Straight push type)
2. Diesel engine type hollow brick making machine
Packing & Delivery
Packing is nude package, plastic and wooden case according to customer need:
1. The whole brick machine production line equipment is mainly the full container sea shipping,
2. Before shipment, the top paint of the brick machine equipment will be tested and cleaned up, and then another paint protection will be done.
3. Before shipment, it can be wrapped with plastic film according to customer needs, and the whole brick machine is wrapped to prevent water or moisture.
4. The brick machine is then loaded into the container by a crane or forklift.
5. When loading, the reinforcing ring and special equipment in the container are used to tighten the machine to prevent damage to the brick machine caused by transportation bumps.
