Quick Details
-
Model Number:
-
YGB-600
-
Eco-friendly:
-
Yes
-
Temperature Range:
-
-40~250 ℃
-
Material:
-
100% Silicone Rubber
-
Color:
-
Transparent White Red Grey Black
-
Test:
-
ASTM
-
Tensile Strength:
-
6.5 M Pa
-
Elongation:
-
450%
-
Hardness:
-
45~70 Shore A
-
Density:
-
1.25~1.35 g/cm^3
-
Thermal Conductivity:
-
0.06 w/m.k
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YiGuang
-
Model Number:
-
YGB-600
-
Eco-friendly:
-
Yes
-
Temperature Range:
-
-40~250 ℃
-
Material:
-
100% Silicone Rubber
-
Color:
-
Transparent White Red Grey Black
-
Test:
-
ASTM
-
Tensile Strength:
-
6.5 M Pa
-
Elongation:
-
450%
-
Hardness:
-
45~70 Shore A
-
Density:
-
1.25~1.35 g/cm^3
-
Thermal Conductivity:
-
0.06 w/m.k

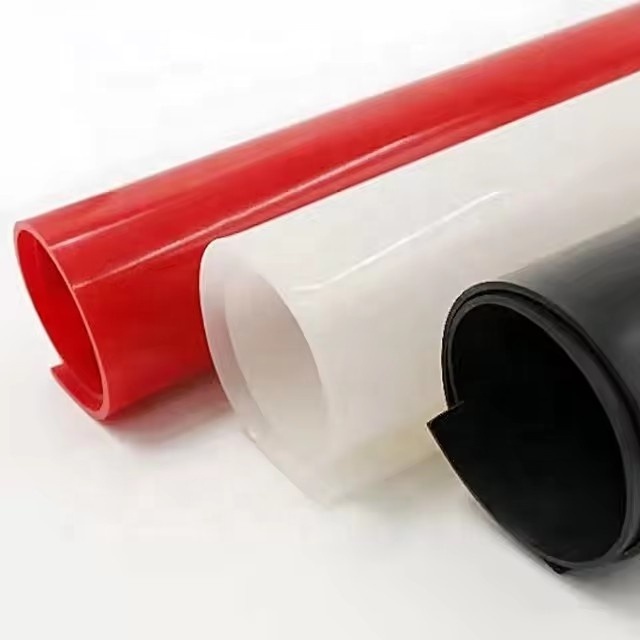

Transparent Silicone Rubber Sheet Silicone Latex Rubber Sheeting with Rolls Packed
The Paremeter:
|
Tensile Strength |
30 M pa |
ASTM D412 |
|
Breaking Strength |
55 K n/m |
ASTM D1458 |
|
Elongation |
150%~250% |
ASTM D412 |
|
Hardness |
50-70 Shore A (customize) |
ASTM 2240 |
|
Temperature Range |
-60~260 C |
En344 |
|
Density |
1.25 ~1.35 g/cm3 (customize) |
ASTM D792 |
|
Thermal Conductivity |
0.06-0.9 w/m*k |
ASTM D5470 |
|
Breakdown Voltage |
25 K V |
ASTM D149 |
Environmental Properties
|
Environmental Properties |
|
|
Resistance Factors
|
|
|
Flammability |
4 |
|
Fresh Water |
5 |
|
Organic Solvents |
4 |
|
Oxidation at 500C |
1 |
|
Sea Water |
5 |
|
Strong Acid |
5 |
|
Strong Alkalis |
5 |
|
UV |
4 |
|
Wear |
4 |
|
Weak Acid |
5 |
|
Weak Alkalis |
5 |
[Specifications]
Width: 1-1.2m Thickness: 0.1-1mm 2 3 4 5 6 8 10mm
[Specification Available (mm)]
Max Length: Unlimited Max Width: 1000 mm, 1200 mm
Max Thickness: 30 mm Min Thickness: 0.1 mm
[Features]
(1)High quality silicone as raw material,high elasticity
(2)Excellent heat resistance,nontoxic,insulating
(3)Anti-aging,ozone resistance,insulative
(4)Can work in air or oil medium during the temperature of -60~250 °C
Packing and Shipping
1) Inner plastic film, outer CTN, Woven Bags, etc., can meet your requirement .
2) International express such as:FedEx,DHL,UPS,TNT;Or sea shipments as customers' required .
