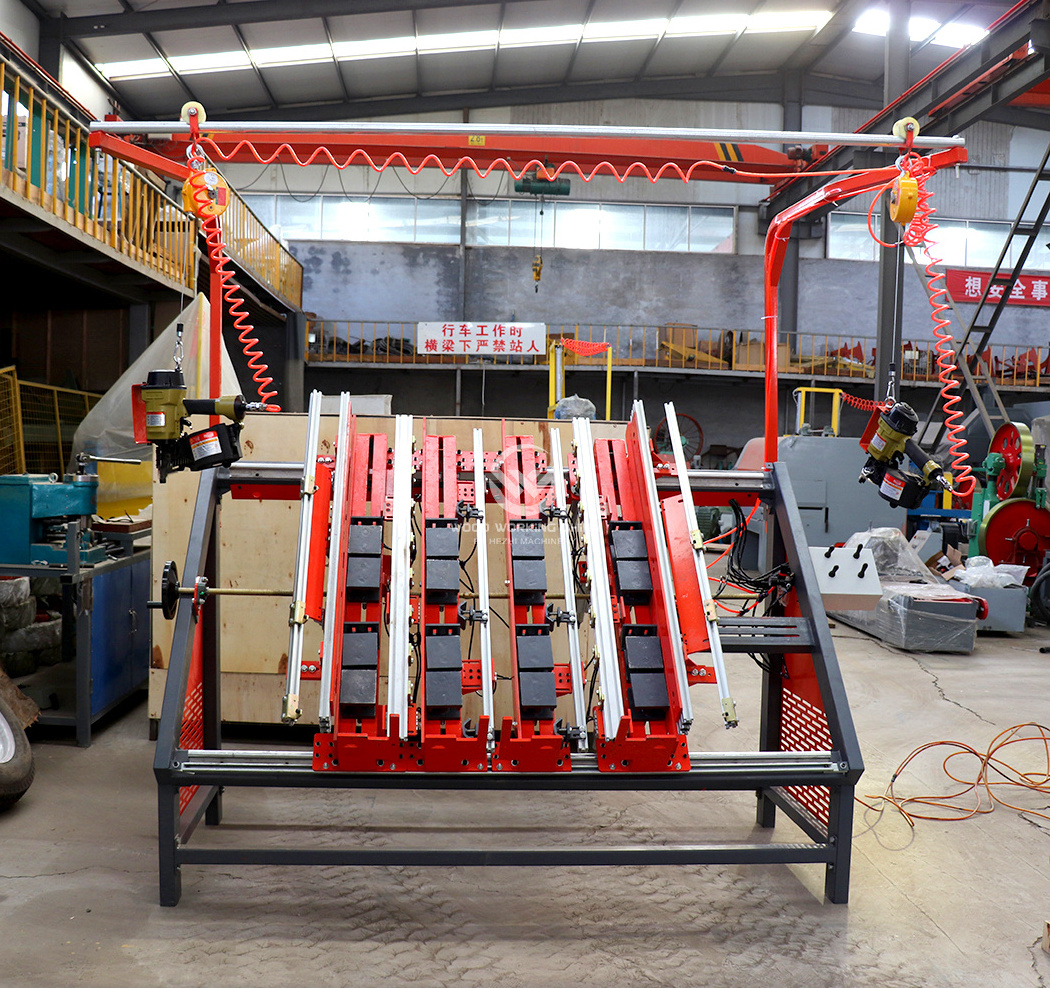

-A universal pneumatic nailing table, Pneumatico PT-1700 features
an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
-Pneumatico PT-1700 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1700 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
-The operator uses multiple nail guns for different sizes of nails. Each of the nail guns is suspended on an overhead roller track for operator convenience. The roller track allows the nail guns to move freely along the rail mounting system overhead. The design of the table guarantees production efficiency as well as operator’s comfort.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2250*980*1900mm
-
Weight:
-
440 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380v/220v, 220V/380V
-
Product Name:
-
Pneumatic Wood Pallet Nailer
-
Application:
-
Wooden Pallet Production Line
-
Advantage:
-
High Efficiency Low Cost
-
Pallet type:
-
Block Pallets
Quick Details
-
Machinery Capacity:
-
210-230 pallets within 8 hours
-
Brand Name:
-
HEZHI
-
Year:
-
2023
-
Dimension(L*W*H):
-
2250*980*1900mm
-
Weight:
-
440 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380v/220v, 220V/380V
-
Product Name:
-
Pneumatic Wood Pallet Nailer
-
Application:
-
Wooden Pallet Production Line
-
Advantage:
-
High Efficiency Low Cost
-
Pallet type:
-
Block Pallets
Pneumatic Wood Pallet Nailer
-
A universal pneumatic nailing table, Pneumatico PT-1600 features
an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
-Pneumatico PT-1800 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1800 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
- The operator uses multiple nail guns for different sizes of nails. Each of the nail guns is suspended on an overhead roller track for operator convenience. The roller track allows the nail guns to move freely along the rail mounting system overhead. The design of the table guarantees production efficiency as well as operator’s comfort.
|
Model
|
PT-1600
|
|
Wood pallet length
|
600-1300mm
|
|
Wood pallet width
|
800-1600mm
|
|
Operational mode
|
Pneumatic operation
|
|
Air pressure
|
0.8MPA
|
|
Production effciency
|
30-40pcs /h
|
|
Number of beams
|
3p (customized)
|
|
Number of nail guns
|
2P (CN70、CN55)American Stanley staple gun
|
|
Weight
|
650kg
|
|
Size
|
2400*980*1900mm
|
|
Model
|
PT-1700
|
|
Wood pallet length
|
600-1300mm
|
|
Wood pallet width
|
800-1700mm
|
|
Operational mode
|
Pneumatic operation
|
|
Air pressure
|
0.8MPA
|
|
Production effciency
|
30-40pcs /h
|
|
Number of beams
|
3p (or customized)
|
|
Number of nail guns
|
1P (CN70) American Stanley staple gun
|
|
Weight
|
440kg
|
|
Size
|
2250*980*1900mm
|
Prices quoted are for reference, due to fluctuations in market conditions, prices will deviate, please refer to the actual price of the inquiry shall prevail!
The pallet nailer quickly and efficiently secures nails to wood, increasing construction efficiency.
Components are firmly joined together to ensure the stability and durability of the pallet.
Widely used for transportation and storage of materials
Qingdao Hezhi Machinery Group
located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating
casting machinery, surface shot blasting machine, sand treatment, automation equipment research,Saw machine, Press Machine, Edge banding machine, Sanding Machine, Drilling Machine, Polishing Machine, Woodworking Planer, Vacuum Laminating Machine, Spray paint machine and CNC Router Machine, development, production
, operation, export and service.
We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension.
ISO9001 and CE certificate
is achieved.
Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks
is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Woodworking Machinery!
1. What is your company positioning?
HEZHI MACHINERY, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. How do you do quality control?
HEZHI MACHINERY develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate-measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
3. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
4. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 1 years, and the service is responded immediately. we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and
video. If necessary, they will go to the customer site for on-site service.
5.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products(as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee. Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. it can guarantee your interests.
6.Do your products support trade assurance?
Yes, our products are all supported.
