Quick Details
-
Name:
-
Concrete leveling machine
-
Engine Model:
-
GX390 13HP
-
weight:
-
40kg/m
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Concrete leveling machine
-
Engine Model:
-
GX390 13HP
-
weight:
-
40kg/m
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Frame t ype c oncrete l eveling m achine is applied to slurry extracting,compaction and leveling of concrete road surface. Using for concrete road (land/ bridge) surface lift pulp, vibrated, leveling. It is new equipment for roads, squares and modern factory building. And it is a traditional paver upgrading products.
|
Technical Parameter of Frame Type Concrete Leveling Machine |
|||
|
Standard |
1-18m |
||
|
Engine model |
GX160 |
GX270 |
GX360 |
|
Power |
5.5HP/4.0kw |
9HP/5.5kw |
13.0HP/7.5kw |
|
Type |
Gasoline engine |
||
|
Exciting force |
20KN |
||
|
Engine |
|||
|
Frequency |
70HZ |
||
|
Standard single unit |
1m,2m |
||
|
2m linker |
405mm x 2000mm |
||
|
1m single linker |
405mm x 1000mm |
||
|
Note, The chosen length of machine should be 500mm longer than real construction width. |
|||
Frame t ype c oncrete l eveling m achine u se super universal unit and special bolt connect with single unit.If there is need to arch camber,easily adjust the camber 5-10°,construction do not need to go back and forth and using a vibrator. Frame t ype c oncrete l eveling m achine can complete pulp, compaction and leveling at one time.H igh efficiency and excellent effect.
P lease Note: choice the machine that is greater 0.5 meters’ width than construction,such as:If the road width is 10 meters,then you should to order the machine that is 10.5 meters.
1) High strength and light weight aluminum truss, reducing intensity of labor
2) Fast connect system for assembly without special tools by one person.
3) One side winches for one person operation
4) Available length: 1 -18 meters

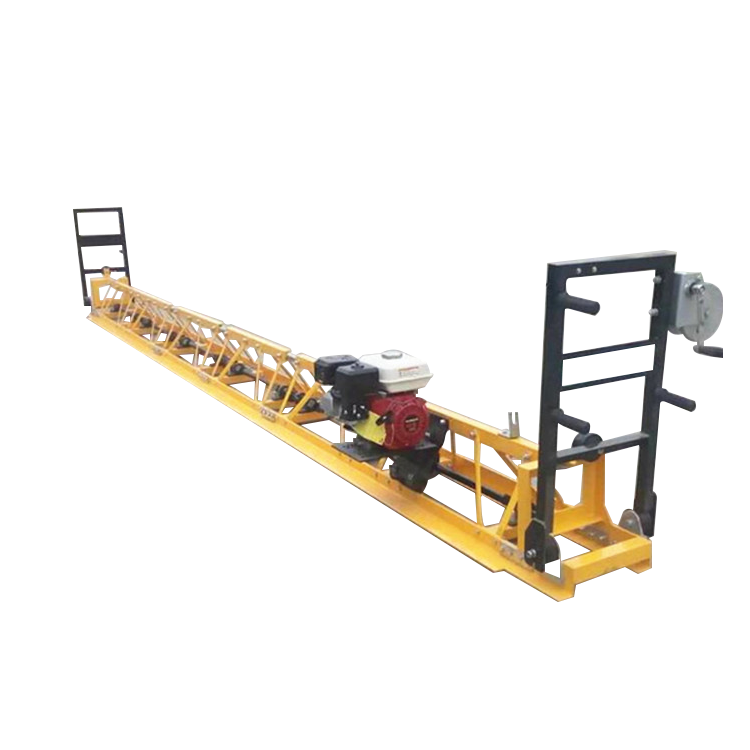

Product show
Working show
