Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinyongtai
-
Model Number:
-

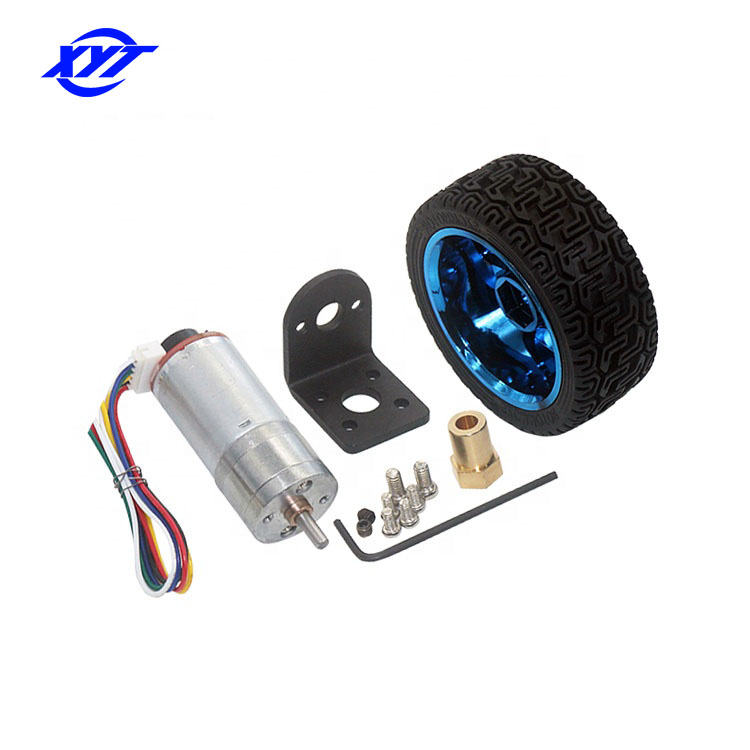

JGA25-370 Encoder Wheel Bracket Set
-
Torque:
-
0.9(NM)
-
Motor Kit:
-
13 pcs Set
-
Typical Applications:
-
Smart Car Chassis
-
Coupler Set:
-
M4 Coupler+8 pcs screw + 6-point screwdriver
-
Fixed frame:
-
25MM aluminum alloy fixed frame
-
Reducer Diameter:
-
25mm
-
Tire Diameter:
-
65mm
-
Reducer Shaft Size:
-
12mm*4mm(Milling edge 0.5mm, D length 8mm)
-
Feature:
-
Adjustable speed, CW/CCW
-
Coupling type:
-
Pure brass hexagonal coupling
-
Bracket:
-
25mm gear box bracket
Quick Details
-
Speed(RPM):
-
12~1360(rpm)
-
Continuous Current(A):
-
0.8(A)
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinyongtai
-
Model Number:
-
JGA25-370 Encoder Wheel Bracket Set
-
Torque:
-
0.9(NM)
-
Motor Kit:
-
13 pcs Set
-
Typical Applications:
-
Smart Car Chassis
-
Coupler Set:
-
M4 Coupler+8 pcs screw + 6-point screwdriver
-
Fixed frame:
-
25MM aluminum alloy fixed frame
-
Reducer Diameter:
-
25mm
-
Tire Diameter:
-
65mm
-
Reducer Shaft Size:
-
12mm*4mm(Milling edge 0.5mm, D length 8mm)
-
Feature:
-
Adjustable speed, CW/CCW
-
Coupling type:
-
Pure brass hexagonal coupling
-
Bracket:
-
25mm gear box bracket
Why Choose US?
Products Description
|
Motor Model 1260
|
No load
|
|
|
Rated
|
|
|
|
Stall
|
|
|||||||||
|
|
Rated voltage
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Output Power
|
Torque
|
Current
|
|||||||||
|
|
V
|
R/MIN
|
A
|
R/MIN
|
A
|
Kg.cm
|
W
|
Kg.cm
|
A
|
|||||||||
|
JGA25-370-4.4X
|
12
|
1360
|
0.06
|
1000
|
0.45
|
0.10
|
1.0
|
0.4
|
1.3
|
|||||||||
|
JGA25-370-9.6X
|
12
|
620
|
0.06
|
450
|
0.45
|
0.22
|
1.0
|
0.8
|
1.3
|
|||||||||
|
JGA25-370-21.3X
|
12
|
280
|
0.06
|
220
|
0.45
|
0.50
|
1.2
|
1.7
|
1.3
|
|||||||||
|
JGA25-370-35X
|
12
|
170
|
0.06
|
130
|
0.45
|
0.82
|
1.1
|
2.8
|
1.3
|
|||||||||
|
JGA25-370-45X
|
12
|
130
|
0.06
|
100
|
0.45
|
1.00
|
1.0
|
3.6
|
1.3
|
|||||||||
|
JGA25-370-78X
|
12
|
77
|
0.06
|
60
|
0.45
|
1.84
|
1.2
|
6.2
|
1.3
|
|||||||||
|
JGA25-370-103X
|
12
|
60
|
0.06
|
46
|
0.45
|
2.44
|
1.2
|
8.2
|
1.3
|
|||||||||
|
JGA25-370-171X
|
12
|
35
|
0.06
|
27
|
0.45
|
4.00
|
1.1
|
9.0
|
1.3
|
|||||||||
|
JGA25-370-226X
|
12
|
26
|
0.06
|
20
|
0.45
|
5.35
|
1.1
|
Maximum load 9kg
|
Do not support blocking
|
|||||||||
|
JGA25-370-377X
|
12
|
16
|
0.06
|
12
|
0.45
|
8.9
|
1.1
|
|
|
|||||||||
|
JGA25-370-500X
|
12
|
12
|
0.06
|
9
|
0.45
|
9.00
|
0.8
|
|
|
|||||||||
|
Motor Model 2460
|
No load
|
|
|
Rated
|
|
|
|
Stall
|
|
|||||||||
|
|
Rated voltage
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Output Power
|
Torque
|
Current
|
|||||||||
|
|
V
|
R/MIN
|
A
|
R/MIN
|
A
|
Kg.cm
|
W
|
Kg.cm
|
A
|
|||||||||
|
JGA25-370-4.4X
|
24
|
1360
|
0.04
|
1000
|
0.25
|
0.10
|
1.0
|
0.35
|
1.3
|
|||||||||
|
JGA25-370-9.6X
|
24
|
620
|
0.04
|
450
|
0.25
|
0.22
|
1.0
|
0.75
|
1.3
|
|||||||||
|
JGA25-370-21.3X
|
24
|
280
|
0.04
|
220
|
0.25
|
0.50
|
1.2
|
1.7
|
1.3
|
|||||||||
|
JGA25-370-35X
|
24
|
170
|
0.04
|
130
|
0.25
|
0.82
|
1.1
|
2.8
|
1.3
|
|||||||||
|
JGA25-370-45X
|
24
|
130
|
0.04
|
100
|
0.25
|
1.00
|
1.0
|
3.6
|
1.3
|
|||||||||
|
JGA25-370-78X
|
24
|
77
|
0.04
|
60
|
0.25
|
1.84
|
1.2
|
6.2
|
1.3
|
|||||||||
|
JGA25-370-103X
|
24
|
60
|
0.04
|
46
|
0.25
|
2.44
|
1.2
|
8.2
|
1.3
|
|||||||||
|
JGA25-370-171X
|
24
|
35
|
0.04
|
27
|
0.25
|
4.00
|
1.1
|
9.0
|
1.3
|
|||||||||
|
JGA25-370-226X
|
24
|
26
|
0.04
|
20
|
0.25
|
5.35
|
1.1
|
Maximum load 9kg
|
Do not support blocking
|
|||||||||
|
JGA25-370-377X
|
24
|
16
|
0.04
|
12
|
0.25
|
8.90
|
1.1
|
|
|
|||||||||
|
GM25-370-500X
|
24
|
12
|
0.04
|
9
|
0.25
|
9.00
|
0.8
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||
