Quick Details
-
Brand Name:
-
ZK Brand
-
Dimension(L*W*H):
-
According to different model
-
Weight:
-
7700 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
Stable and Durable
-
Certification:
-
CE, ISO
-
Factory Visit:
-
Welcomed Warmly
-
Design:
-
Offer Design Solution
-
History:
-
60 years
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Under Enginees Guidence
-
Color:
-
Customizable
Quick Details
-
Application:
-
mining, metallurgical, construction, Bulk ore crushing
-
Capacity(t/h):
-
13~50(m³/h)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZK Brand
-
Dimension(L*W*H):
-
According to different model
-
Weight:
-
7700 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
Stable and Durable
-
Certification:
-
CE, ISO
-
Factory Visit:
-
Welcomed Warmly
-
Design:
-
Offer Design Solution
-
History:
-
60 years
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Under Enginees Guidence
-
Color:
-
Customizable
Introduction

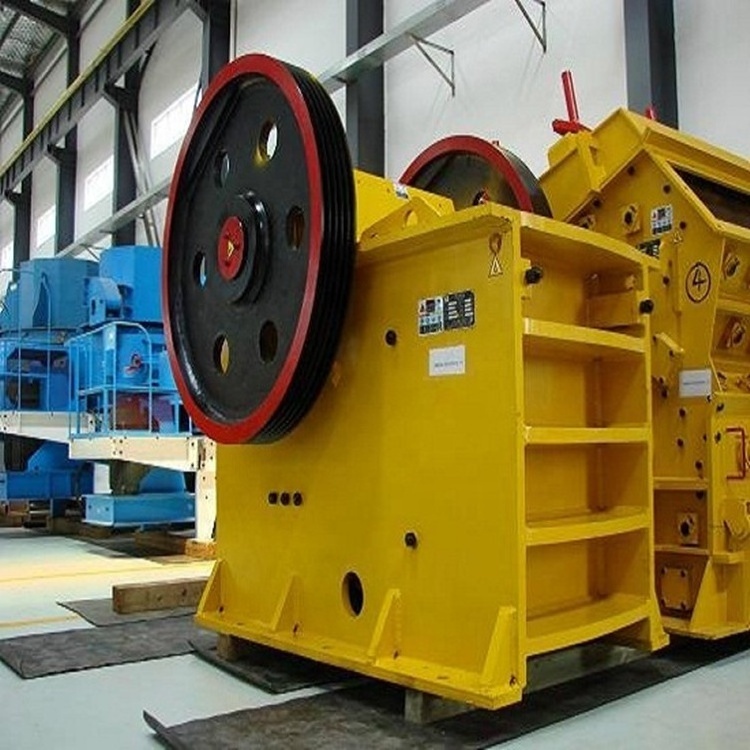

PE/PEX Series Jaw crusher is a large kind of complex tilting crushing equipment, and it is mainly used for crushing medium hard ore and rock whose compression strength is no more than 250MPa , and with the quality of large crushing ratio, high yield, uniform particle size, reliable, easy to maintain and low operating cost, it is widely used in mining, metallurgy, construction, roads, railways, water conservancy, chemical industry and etc.
PE series jaw crusher is used for coarse crushing different kinds of ores and rocks, and PEX series jaw crusher is used for intermediate and fine crushing.
Application of Jaw Crusher:
Be applied in large block of material crushing in mining industry, metallurgical industry, construction industry, highway, railway, water, and chemical industry.
Features
1. Jaw plates is made of high strength steel, one time shape casting, and with characteristics of wear resistant, compression resistance, and long life;
2. High productivity, large crushing ratio, uniform product size, low power consumption
3. Gasketed discharging adjusting device, reliable and convenient, large adjustment range, equipment flexibility is increased.
4. Simple structure, reliable operation and low operating costs, safe lubrication system, and easy parts replacing
Technical Parameter
| Model | Inlet Size(mm) | Max feeding size(mm) | Adjusting Range of Discharging outlet(mm) | Capacity(m³/h) | Power(kW) | Weight(t) |
|---|---|---|---|---|---|---|
| PE-250×400 | 250×400 | 210 | 20~60 | 3~13 | 15 | 2.8 |
| PE-400×600 | 400×600 | 340 | 40~100 | 10~35 | 30 | 6.5 |
| PE-500×750 | 500×750 | 425 | 50~100 | 25~60 | 55 | 10.6 |
| PE-600×900 | 600×900 | 500 | 65~180 | 30~85 | 55~75 | 15.5 |
| PE-750×1060 | 750×1060 | 630 | 80~180 | 72~150 | 90~110 | 28 |
| PE-800×1060 | 800×1060 | 680 | 100~200 | 85~143 | 90~110 | 30 |
| PE-870×1060 | 870×1060 | 750 | 170~270 | 145~235 | 90~110 | 30.5 |
| PE-900×1060 | 900×1060 | 780 | 200~290 | 170~250 | 90~110 | 31 |
| PE-900×1200 | 900×1200 | 780 | 95~255 | 100~240 | 110~132 | 49 |
| PE-1000×1200 | 1000×1200 | 850 | 195~280 | 190~275 | 110~132 | 51 |
| PE-1200×1500 | 1200×1500 | 1020 | 150~300 | 250~500 | 160 | 100.9 |
| PEX-150×500 | 150×500 | 120 | 10~40 | 3~15 | 11 | 2.5 |
| PEX-150×750 | 150×750 | 120 | 10~40 | 5~16 | 18.5 | 3.5 |
| PEX-250×750 | 250×750 | 210 | 15~50 | 8~35 | 30 | 5.8 |
| PEX-250×1000 | 250×1000 | 210 | 15~50 | 13~45 | 37 | 6.4 |
| PEX-250×1200 | 250×1200 | 210 | 15~50 | 13~50 | 37 | 7.7 |
| PEX-300×1300 | 300×1300 | 250 | 15~50 | 20~60 | 75 | 11 |
Pre-sales
(1)To guide to choose more proper product.
(2)To design the best scheme for free.
(3)To design and make the products according to the special demands.
On-sales
(1)To arrange strict examinations before the product is delivered.
(2)To deliver products according to the contract.
After-sales
(1)To send an engineer to guide to install and try-run the machines on the spot.
(2)To debug and try-on.
(3)If any problem occurred in the products,we would give the right solution as soon as possible.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
