TAPS BX1100 BX1200 Geogrid Producer Polypropylene PP Extruded Biaxial Geogrid for Road Railway Retaining Wall
FOB Reference Price:
Get Latest Price
≥2000 Square meters
US $0.69
≥50000 Square meters
US $0.68
≥300000 Square meters
US $0.66
≥600000 Square meters
US $0.64
Free Inquiry
Customized Request
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Road Railway Expressway Infrastructure
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAPS or OEM
-
Model Number:
-
BX1200&BX1100
-
Mesh Size:
-
26mm*34mm
-
Length:
-
50m
-
Width:
-
3.95m
-
Material:
-
Plastic
-
Raw Material:
-
Polypropylene
-
Color:
-
Black
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Road Railway Expressway Infrastructure
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAPS or OEM
-
Model Number:
-
BX1200&BX1100
-
Mesh Size:
-
26mm*34mm
-
Length:
-
50m
-
Width:
-
3.95m
-
Material:
-
Plastic
-
Raw Material:
-
Polypropylene
-
Color:
-
Black
Product Description

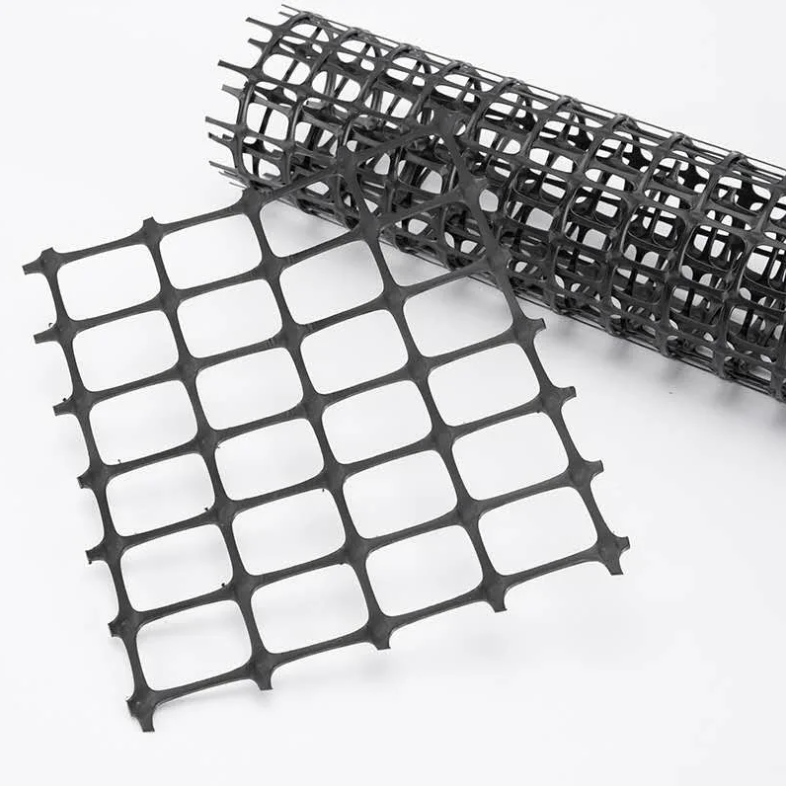

What is the BX series Geogrid？
BX series as
Unbalanced strength/modulus
geogrid is manufactured from Polypropylene,
the extruded sheet, with sequential punching and stretching (drawn) manufacturing processes, produce the integrally formed network
of apertures and ribs/nodes of BX Geogrid, an aggregate confinement geogrid used for application within trafficked
structures.
of apertures and ribs/nodes of BX Geogrid, an aggregate confinement geogrid used for application within trafficked
structures.
Such geogrid is mainly applied in strengthening soft ground of highway, railway, slope protecting projects, airfields etc. It
can increase stability and loading capacity of fundus, prolong the project life.
can increase stability and loading capacity of fundus, prolong the project life.
Specification
|
Product Type
|
Biaxial Geogrid BX1200
|
|
Longitudinal Tensile Strength ≥（kN/m）
|
19.2
|
|
Transverse Tensile Strength ≥（kN/m）
|
28.8
|
|
Junction Efficiency （%）
|
93
|
|
Longitudinal Tensile Strength at 2% Strain ≥ （kN/m)
|
6
|
|
Transverse Tensile Strength at 2% Strain ≥ （kN/m)
|
9
|
|
Longitudinal Tensile Strength at 5% Strain ≥ （kN/m)
|
11.8
|
|
Transverse Tensile Strength at 5% Strain ≥ （kN/m)
|
19.6
|
|
Roll Width (m)
|
3.95 or 5.95
|
|
Roll Length (m)
|
50 or 75
|
|
Standard
|
ISO，ASTM
|
|
Brand Name
|
TAPS or OEM
|
