Quick Details
-
Brand Name:
-
BaoHua
-
Model Number:
-
GT526 Pro AR
-
Warranty:
-
3 Years
-
Color:
-
Optional
-
Product name:
-

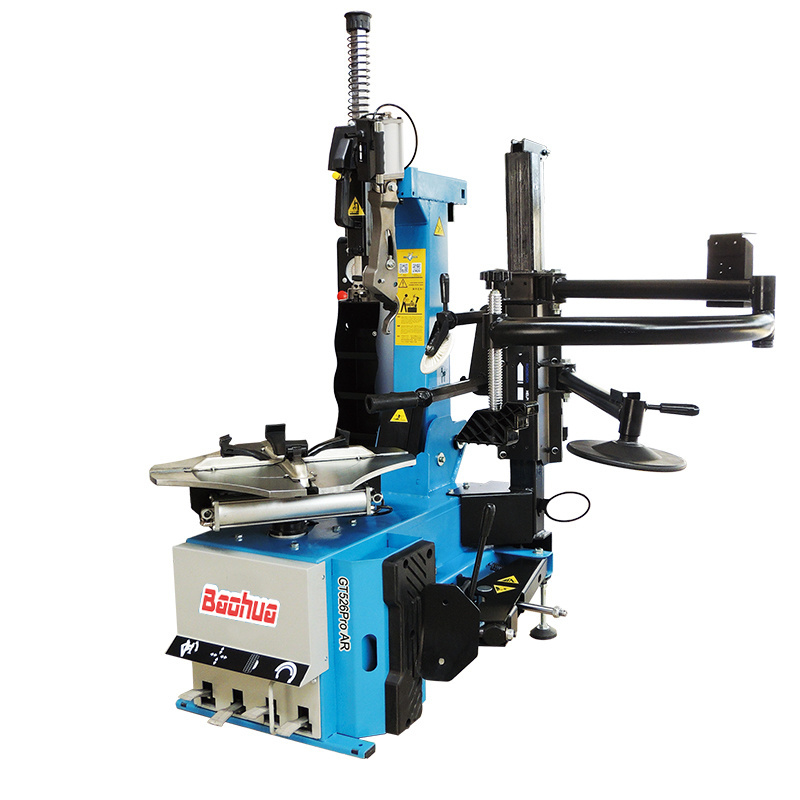

Automatic Car Tire Changer Machine
-
Model:
-
GT526 Pro AR
-
Max. Wheel diameter:
-
1120(44'')
-
Max. wheel width:
-
420mm(16'')
-
Inside clamp:
-
12"-26"
-
Outside Clamping:
-
10''-24''
-
Working pressure:
-
8-12bar
-
BEAD BREAKER FORCE:
-
2800kg
-
Rotate speed:
-
6-12rpm
Quick Details
-
Operating Pressure:
-
8-12bar
-
Power Supply:
-
380V/3HP/50-60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BaoHua
-
Model Number:
-
GT526 Pro AR
-
Warranty:
-
3 Years
-
Color:
-
Optional
-
Product name:
-
Automatic Car Tire Changer Machine
-
Model:
-
GT526 Pro AR
-
Max. Wheel diameter:
-
1120(44'')
-
Max. wheel width:
-
420mm(16'')
-
Inside clamp:
-
12"-26"
-
Outside Clamping:
-
10''-24''
-
Working pressure:
-
8-12bar
-
BEAD BREAKER FORCE:
-
2800kg
-
Rotate speed:
-
6-12rpm
Professional automatic tire changer
1.Applicable to small and medium car, discouraged avaliable(explosion) tire, lower than the flat performance tires, tubeless tires are available.
2.Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.
3.The trapezoid colum base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.
4.Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.
5.Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
6.Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
7.Best quality all-aluminum cooper motor with advantages of faster heat dissipation, low loss, high power.
8.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
automatic mount/demount head
1.when mounting, the radian of mount/demount head is
exactly.
2.Front and back locking plate directly formed by
broaching after quenching.
3.High precision and high hardness. the locking plate gap
can be adjusted.
4.Auxiliary arm support rods, to prevent the machine is
dumped.
Pneumatic valve piston rod assembly
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.
Pressure shovel
.Pressure shovel with multi-angle adjustable design
The trapezoid colum base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.
Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.
Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
Help 5 auxiliary pneumatic lever arm means double and single crank pressure tire design, tire fitting job Multi0assisted pressure tires. The lower plate, in the demolition process can be assisted tire lift. One lifting slide design ,with fine-tuning to ensure smooth lifting and stability , more efficient and easier to use.
Package details
1) one set = one package
2) Package size:1200*1000*1780mm
3) N.W.: 341kgs
4) G.W. 391kgs
