Quick Details
-
Usage:
-
Outdoor Play
-
Logo:
-
Customized Logo Availabled
-
MOQ:
-
1set
-
Packing:
-
Wooden Case
-
Size:
-
1750*1180*750mm(L*W*H)
-
Battery:
-
60V, 120A
-
Duration:
-
6-8 hours
-
Speed:
-
5-30km/h can adjusted
Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
kids and adult snowmobile undercarriage tank vehicle AVT-T03D
-
Color:
-
Customized Color
-
Usage:
-
Outdoor Play
-
Logo:
-
Customized Logo Availabled
-
MOQ:
-
1set
-
Packing:
-
Wooden Case
-
Size:
-
1750*1180*750mm(L*W*H)
-
Battery:
-
60V, 120A
-
Duration:
-
6-8 hours
-
Speed:
-
5-30km/h can adjusted
Well selling kids and adult snowmobile undercarriage tank vehicle AVT-T03D all terrain rubber track tank for amusement use
1. Product introduction:
AVT-T03D is designed by scaling down the real tank, retains the appearance of the real tank, which is very eye-catching. According to specifications, it can be divided into single person version and double person version. The single person version is mainly suitable for children over 8 years old and adults to drive alone, while the double person version is usually driven and played by parents with their children.
2. Product application:
In tourist attraction, field exercise area, youth summer camps, science and technology museums, large-scale exhibitions, amusement parks and other places.
3. Product Features:
1. Use high efficiency and energy saving DC brushless motors, lithium batteries with strong endurance and no exhaust emissions.
2. Dual-motor dual-drive gearbox transmission bridge drives rubber tracks to walk, novel and unique shape.
3. With advantages of easy operation, good flexibility, good stability, strong power, good passability, small turning diameter (can turn around 360 °in zero radius), strong climbing ability, and comfortable driving.
4. All terrain driving, good driving stability and passability on the beach, snow, and soft grasslands.
5. Steering wheel and steering system: The controller induction device is driven by rotating the steering wheel, so as to change the speed of the left and right motors to achieve differential steering. When turning the steering wheel to the left until it stops moving, the left motor stops rotating and supplemented by the left drive wheel hydraulic brake, so that the vehicle turns towards the left in small radius. When turning the steering wheel to the right until it stops moving, the right motor stops rotating and supplemented by the right drive wheel hydraulic brake, so that the vehicle turns towards the right in small radius.
4. Product Parameters:
AVT-T 03 D ( parents-child ) |
||
size |
L1750(excluding barrel)x1180x750mm |
|
Power |
60V 800W*2 motors , rear-drive axle drive (maintenance free). |
|
Track model |
150 mm *60 mm *58 knots |
|
Duration |
60V120Ah lithium battery, 6-8 hours |
|
Control system |
Steering wheel type electronic differential with hydraulic power steering gear |
|
Features |
Steering wheel type all terrain off-road tracked vehicle, speed adjustable, 5-30 km/h |
|
Features |
Cross bar (neutral, forward, reverse, left rotation, right rotation) |
|
Features |
Remote timing or scanning payment timing for option |
|
Vehicle testing |
Maximum climbing test 30° , maximum dynamic roll 30 ° |

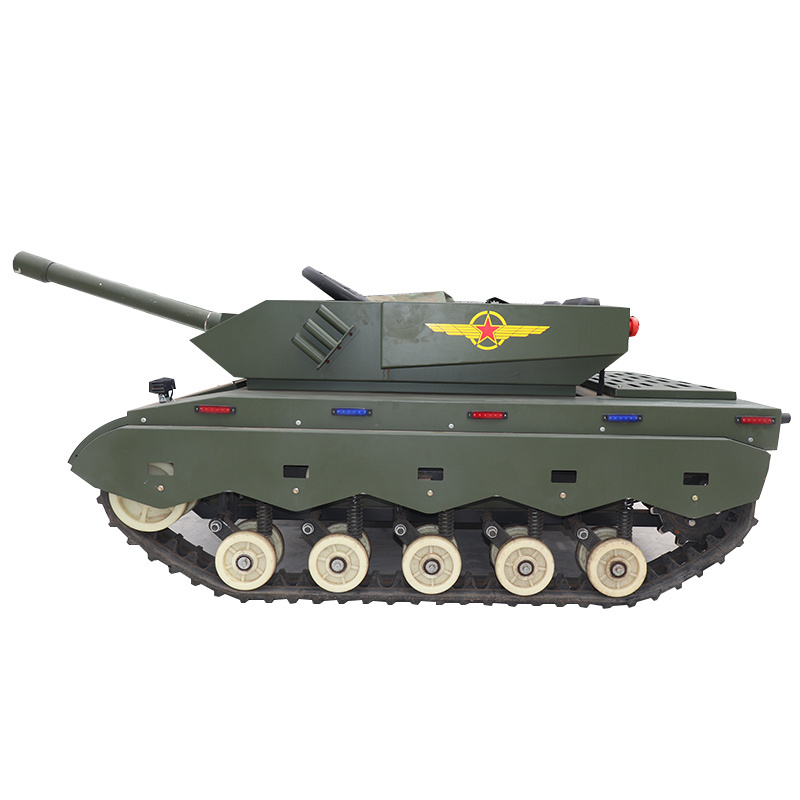

5. Pictures show:
