Quick Details
-
Model:
-
ABH-50/100/150/200/250
-
Usage:
-
IR beams used for Fence
-
Color:
-
Black
-
Power voltage:
-
DC13.8V-24V AC11V-18V
-
Current consumption:
-
95mA(50-100m) 100mA(150m) 105mA(200-250m)
-
Detecting:
-
the four-beam seize interdictions at the same time
-
Warning distance:
-
50m,100m,150m,200m,250m available
-
Ambient temperature:
-
-25 to +55 degrees
-
Alarm output:
-
IC relay output,Contact capacity:DC30V/0.5A MAX
-
Induction speed:
-
35-700msec alterable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SFL
-
Model Number:
-
SFL-ABH
-
Model:
-
ABH-50/100/150/200/250
-
Usage:
-
IR beams used for Fence
-
Color:
-
Black
-
Power voltage:
-
DC13.8V-24V AC11V-18V
-
Current consumption:
-
95mA(50-100m) 100mA(150m) 105mA(200-250m)
-
Detecting:
-
the four-beam seize interdictions at the same time
-
Warning distance:
-
50m,100m,150m,200m,250m available
-
Ambient temperature:
-
-25 to +55 degrees
-
Alarm output:
-
IC relay output,Contact capacity:DC30V/0.5A MAX
-
Induction speed:
-
35-700msec alterable

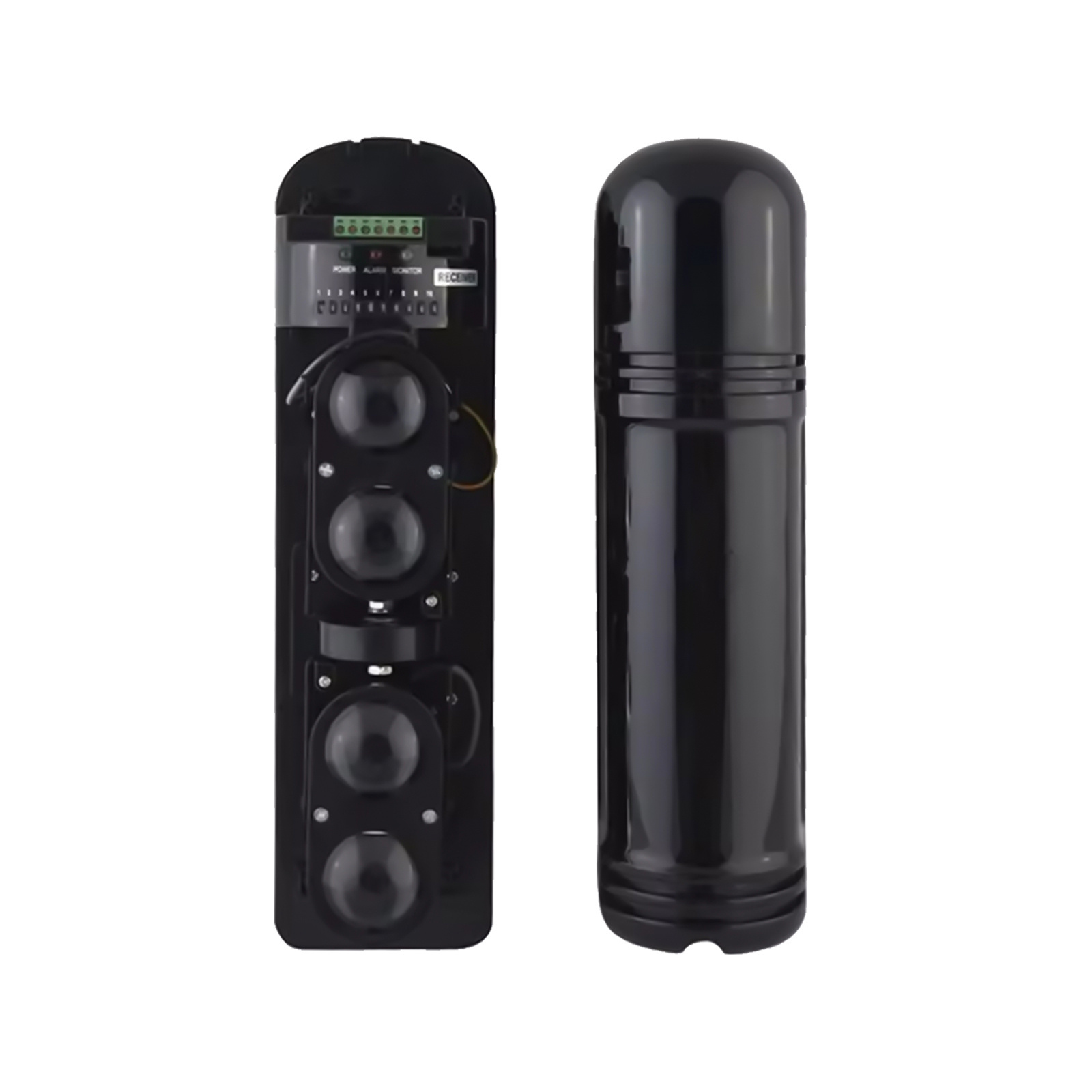

Infrared Beam Barrier Sensor
Product Description
Main Feature:
- Photoelectric infrared beam sensor with digital frequency conversion
- Mout transmitter and receiver, build an invisible fence people can't see
- When beam is blocked, alarm trigger
- Alarm output NC/NO optional, compatible with other brand burglar alarm systems
- Resistant to rain, fog, snow and frost
- Infrared LED lighting
- PC engineering plastic material
- Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight,completely against fluorescent and car light
- AGC circuit, the detector will automatically increase sensitivity when faced harsh environment
- Horizontal / vertical optical angle can be easy to adjust
