Quick Details
-
Dimension(L*W*H):
-
custom made
-
Weight (T):
-
20 T
-
Power (kW):
-
80100 to 150 (Varies according to furnace type)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Press:
-
100T to 250T(adjustable)
-
Structure:
-
Vertical Structure
-
Effective Working Zone:
-
280*400 to 480*500mm (adjustable)
-
Vacuum system:
-
Leybold, EVP, Edwards, Kinney
-
Heating method:
-
Resistance
-
PLC controller:
-
SIEMENS, MITSUBISHI, LG
-
Heater:
-
Mo belt, Tungsten, Graphite, SiMo, SiC
-
Max temperature:
-
2000℃ (custom made)
-
OEM service:
-
Acceptable
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SIMUWU
-
Voltage:
-
380V (adjustable)
-
Dimension(L*W*H):
-
custom made
-
Weight (T):
-
20 T
-
Power (kW):
-
80100 to 150 (Varies according to furnace type)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Press:
-
100T to 250T(adjustable)
-
Structure:
-
Vertical Structure
-
Effective Working Zone:
-
280*400 to 480*500mm (adjustable)
-
Vacuum system:
-
Leybold, EVP, Edwards, Kinney
-
Heating method:
-
Resistance
-
PLC controller:
-
SIEMENS, MITSUBISHI, LG
-
Heater:
-
Mo belt, Tungsten, Graphite, SiMo, SiC
-
Max temperature:
-
2000℃ (custom made)
-
OEM service:
-
Acceptable

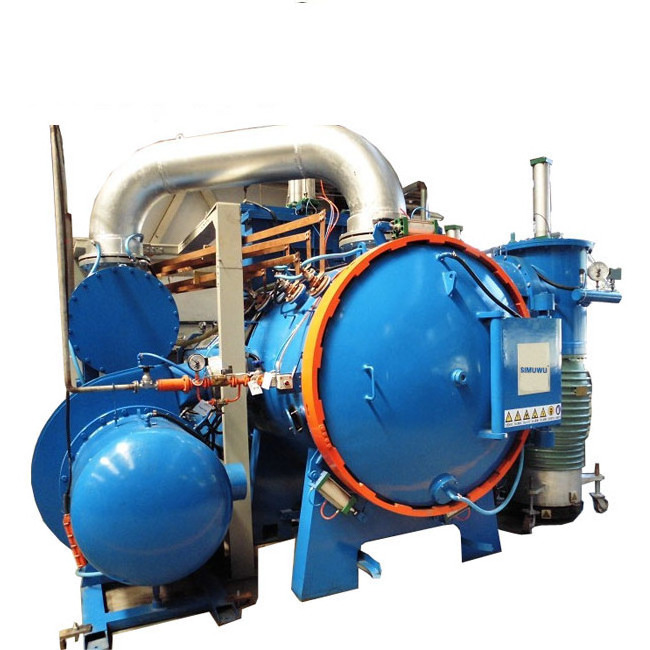

Ultra High Temperature Vacuum Sintering for Ceramic Material Like Sic, Boron Nitride, Boron Carbide
Powder Metallurgy Vacuum Sintering Furnace takes high temperature vacuum sintering furnace is used in Sm-Co, AlNiCo, metal mesh, cemented carbide, ceramic materials, photoelectric coating materials, graphite purification, magnet material and rare refractory metals, alloys (tungsten, Mo, W-Cu alloy) vacuum sintering process, also support atmosphere sintering. Max temperature could be achieve 2200C. This equipment was based on international excellent equipment technology, after many times improvement. The control system of vacuum furnace was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate. Environmental protection performance has been improved, maintenance cost saving, energy cost saving.
| Model | Uniform Temperature Zone | MAX Temp | Ultimate pressure | Pressure rising rate | Temp Uniformity | Loading capacity |
| RVS-335H | 300*300*500mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 75Kg |
| RVS-448H | 400*400*800mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 100Kg |
| RVS-459H | 450*450*900mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 200Kg |
| RVS-5510H | 500*500*1000mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 250Kg |
| RVS-6612H | 600*600*1200mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 300Kg |
| RVS-7712H | 700*700*1200mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 500Kg |
| RVS-8812H | 800*800*1200mm(W*H*L) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 1000Kg |
| RVS-V0405H | φ400*500mm(vertical) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 200Kg |
| RVS-V0507H | φ500*700mm(vertical) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 300Kg |
| RVS-V1010H | φ1000*1000mm(vertical) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 1000Kg |
| RVS-V1212H | φ1200*1200mm(vertical) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 1500Kg |
| RVS-V1515H | φ1500*1500mm(vertical) | 1450~2400℃ | 2*10-3Pa | 0.5Pa/h | ±5℃ | 2000Kg |
