Quick Details
-
Luminous Efficacy(lm/w):
-
20
-
Product Weight（kg）:
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BTF-LIGHTING
-
106932:
-
K-1000C
-
Key Feature:
-
Programmable controller
-
Work Voltage:
-
DC5-24V
-
Support Pixels Quantity:
-
Up to 1500 Pixels
-
Support IC:
-
Support IC
-
Support Strip:
-
RGB, RGBW Pixel Strip
-
Software Name:
-
LEDEDIT software
-
SD Card:
-
256Mb
-
Color:
-
Sliver
-
Application:
-
For led strip,led matrix,led module
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
Manual Switch, SD card
-
Max. Load Power:
-
up to 1500 piexels
-
Luminous Efficacy(lm/w):
-
20
-
Product Weight（kg）:
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BTF-LIGHTING
-
106932:
-
K-1000C
-
Key Feature:
-
Programmable controller
-
Work Voltage:
-
DC5-24V
-
Support Pixels Quantity:
-
Up to 1500 Pixels
-
Support IC:
-
Support IC
-
Support Strip:
-
RGB, RGBW Pixel Strip
-
Software Name:
-
LEDEDIT software
-
SD Card:
-
256Mb
-
Color:
-
Sliver
-
Application:
-
For led strip,led matrix,led module

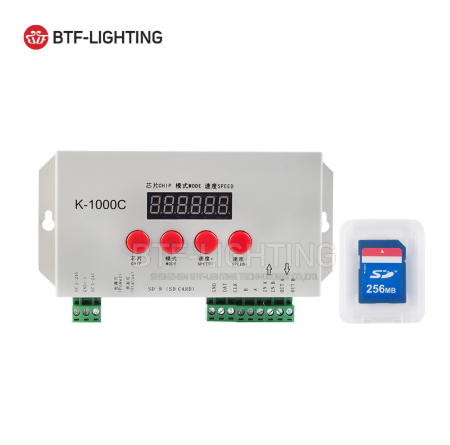

Top selling K-1000C 1500 pixels ws2811 rgb programmable led pixel controller with SD Card
Product Description
Ⅰ .K-1000C system features:
1. 32 to 65536 degree Gray control, Gamma correction procession
handle.
2. Support various point, line light source, and all kinds of rules and
specific shaped handle.
3. The controller has one output port, can support up to 512/2048
pixels(DMX lighting support up to 512 pixels).
4. Play content stored in the SD card , the SD card can store up to 32
effects File, SD card capacity support 128MB-32GB.
5. The controller can single set use,also multiple controllers cascade,
cascade optical isolation mode: interference, better stability, cascade
distance between two controllers can reach up to 150 meters, need to
use 0.5M² pure copper power cord.
6. The controller support chip can lock the support IC in software, or not
lock the support IC in the software, select the support IC through the
controller CHIP button, this scheme is more flexible and convenient.
7. For the DMX lighting IC, the controller comes with write address
function; In addition, with use of our 2016 Led Edit-K V3.26 or later
edition can make one key write address function setting.
8. Support load lamp is 4 channels (RGBW) pixels, or split into single
channel point pixels.
9. Enhanced 485 TTL and 485 differential (DMX) signal output.
10.The controller comes with the test effects were as follows: 1 red,
green, blue and black jump; 2 red, green, blue and black gradient; 3 red,
green, blue and goes.
Notes:
1, The controller load lamps 512 points pixel, speed can reach up to 30
frames / sec, 1024 point pixel speed can reach up to 25 frames / sec, 1536
point pixel speed is about 15 frames / sec (the above parameter is
an example of 1903 agreement IC, different IC have difference)
Max control WS2812B 1536 pixels.Usually we recommend 1000-1500 pixels. More pixels will decrease the speed of data transmission.
2. International standard DMX512 (1990 agreement) maximum support
512 pixels. When the load is international standard 170 pixels, the
speed can reach up to 30 frames / sec, 340 pixels speed is about 20
frames / sec, when 512 pixels speed is about 12 frames / sec.
Ⅱ.Support chips (PC Software Select K-1000-RGB) :
00:
UCS1903,1909,1912,2903,2904,2909,2912,TM1803,1804,1809,18
12,SM16703,16709,16712,WS2811,WS2812,WS2813,WS2815,WS2
818,INK1003,LX3203,1603,1103 GS8205,8206,SK6812
(max. Supports lights 1500 pixels)
01:SM16716,16726 (support up to
1500
pixels)
02:P9813 (support up to
1500
pixels)
03:LPD6803 (support up to
1500
pixels)
04:LX1003,1203 (support up to
1500
pixels)
05:WS2801 (support up to
1500
pixels)
06:LPD1886 (support up to
1500
pixels)
07:TM1913 (support up to
1500
pixels)
08:TM1914 (support up to
1500
pixels)
09:P9883,P9823 (support up to
1500
pixels)
10:DMX (support up to 512 pixels, suggest to support ≤320 pixels)
11:DMX 500K (support up to 512 pixels, suggest to support ≤320
pixels)
12:DMX 250K-CZF ( support up to 512 pixels, suggest to support ≤320
pixels )
13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤
320 pixels)
NOTES:
1.If support RGBW four channels’ lights should select K-1000-RGBW.
2.If support single channel light should choose K-1000-W, at this time,
one channel means one pixel, the software effect make as white lighting.
