Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900*700*1100mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
16m 18m 22m Articulated Boom Lifts Towable Hydraulic Man Lift Diesel
-
Application:
-
Indoor and outdoor aerial work
-
Type:
-
Lifting Equipment
-
Capacity:
-
200kg
-
Color:
-
Customised
-
Voltage:
-
110v/220v/380v/415v/440v
-
Power supply:
-
AC/DC/Diesel engine/Gasoline engine
-
Control Method:
-
Platform Control and Ground Control
-
Lifting height:
-
10-20m
-
Model:
-
TGZ
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WElift
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900*700*1100mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
16m 18m 22m Articulated Boom Lifts Towable Hydraulic Man Lift Diesel
-
Application:
-
Indoor and outdoor aerial work
-
Type:
-
Lifting Equipment
-
Capacity:
-
200kg
-
Color:
-
Customised
-
Voltage:
-
110v/220v/380v/415v/440v
-
Power supply:
-
AC/DC/Diesel engine/Gasoline engine
-
Control Method:
-
Platform Control and Ground Control
-
Lifting height:
-
10-20m
-
Model:
-
TGZ

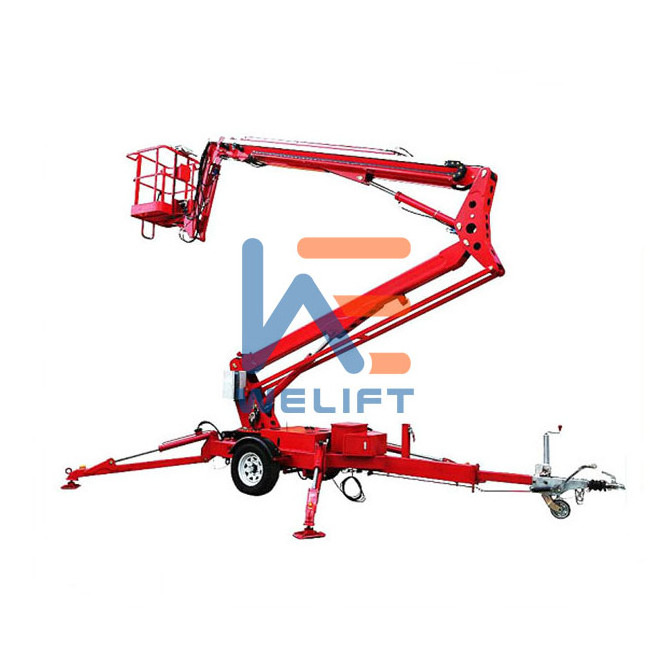

360 degree rotatable trailer spider lift hydraulic towable boom lift articulating cherry picker with CE
Trailer Fold Arm Lift Platform is suitable for indoor and outdoor work, the platform height range is 10-22 meters, the load is 200 kg, the size can be customized, and the user-friendly design. AC, DC, diesel engine and gasoline engine are available with multiple power sources, suitable for a variety of working conditions.
|
Model
|
TGZ10
|
TGZ12
|
TGZ12
|
TGZ14
|
TGZ16
|
TGZ18
|
TGZ20
|
||||||
|
Platform height
|
10 m
|
12 m
|
12 m
|
14 m
|
16 m
|
18 m
|
20m
|
||||||
|
Working height
|
12 m
|
14 m
|
14 m
|
16 m
|
18 m
|
20m
|
22m
|
||||||
|
Load capacity
|
200kg
|
|
|
|
|
|
|
||||||
|
Platform size
|
900*700mm
|
|
|
|
|
|
|
||||||
|
Dimensions
|
6.3*1.7*2.1m
|
7.3*1.7*2.1m
|
5.8*1.8*2.2m
|
6.55*1.66*2.13m
|
7.0*1.8*2.25m
|
7.0*1.8*2.25m
|
7.6*1.8*2.25m
|
||||||
|
Weight
|
1700 kg
|
2000 kg
|
1800 kg
|
2500 kg
|
2800 kg
|
3000kg
|
3800 kg
|
||||||
|
Telescopic boom
|
NO
|
NO
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
||||||
|
Working radius
|
5.5m
|
6.5 m
|
7.8 m
|
8.5 m
|
10.5 m
|
11 m
|
11 m
|
||||||
|
Wind level
|
≦5
|
|
|
|
|
|
|
||||||
|
Units for 40GP
|
3 units
|
3 units
|
3 units
|
3 units
|
2 units
|
1 units
|
1 units
|
||||||
