Quick Details
-
Brand Name:
-
UNIQUE
-
Motor Power:
-
18.5kw
-
Charging Capacity:
-
3000L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
25r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Outline Dimension:
-
3810*2480*1710 mm
-
Weight (KG):
-
7500 kg
-
Keywords:
-
Vertical Shaft Planetary Concrete Mixer
-
Power type:
-
Electric Engine
-
Application:
-
Construction Projects
-
Concrete mixer type:
-
Twin Shaft Cement Concrete Mixer
-
Capacity:
-
500L-3000L
-
Color:
-
Customer's Requirement
-
Certificate:
-
CE/ISO9001:2000
Quick Details
-
Mixing Power:
-
2x37kw
-
Productivity:
-
2M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
UNIQUE
-
Motor Power:
-
18.5kw
-
Charging Capacity:
-
3000L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
25r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Outline Dimension:
-
3810*2480*1710 mm
-
Weight (KG):
-
7500 kg
-
Keywords:
-
Vertical Shaft Planetary Concrete Mixer
-
Power type:
-
Electric Engine
-
Application:
-
Construction Projects
-
Concrete mixer type:
-
Twin Shaft Cement Concrete Mixer
-
Capacity:
-
500L-3000L
-
Color:
-
Customer's Requirement
-
Certificate:
-
CE/ISO9001:2000
Product Description

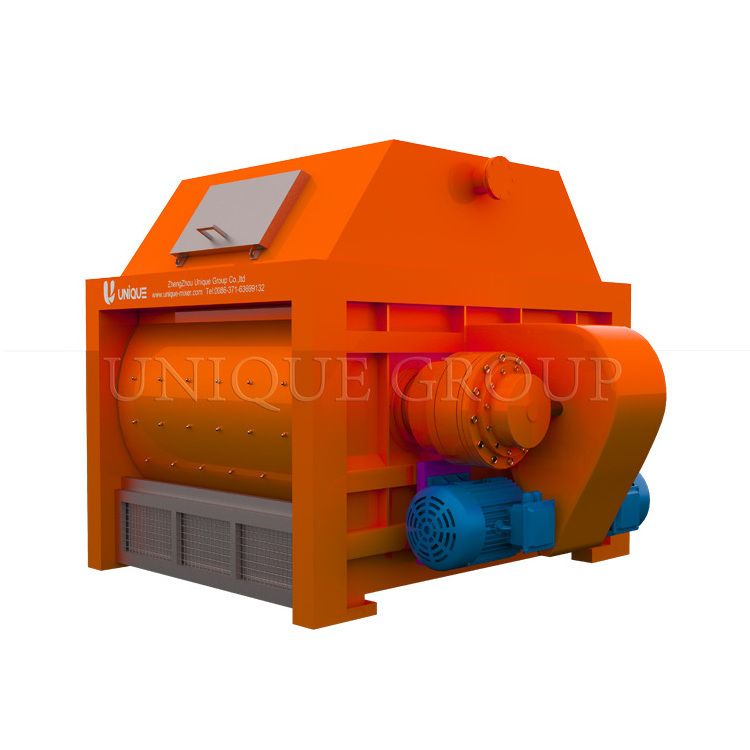

The feature of Automatic twin shaft JS concrete mixer price
1. Shaft end sealing adopts pressure difference and multi-heterodyne sealing technology to extend shaft end's service life.
2. National patented taper mixing arm which can easily disassembled.
3. National patented monitoring system to control every part of mixer, such as hydraulic pump, gearbox's oil temperature, oil level, which helps user see its condition directly and clearly. In this way, the machine's service life can be extended substantially.
4. Advanced hydraulic pressure system is adopted to open and close the discharging door. Under the situation of sudden power failure, the manual pump can be used to open the discharging valve for emergency discharge to avoid agglomeration.
5. Lubrication system to make the mixer service a long life.
6. Security protection device to keep the safety of maintenance stuff.
7. Water spraying by multiple tube and circuit system.
Optional capacity ranged from 1.5 cu.m to 6.0 cu.m.
Specification
discharge volume
|
2000L
|
charge volume
|
3000L
|
Theoretical
|
120m3/hr
|
Video outgoing-inspection
|
Provided
|
Machinery Test Report
|
Provided
|
aggregate size
|
80/100mm
|
speed of mixing blade
|
25r/min
|
quantity of mixing blade
|
2*8
|
Condition
|
New
|
Place of Origin
|
HEN
|
Brand Name
|
Unique
|
model of mixing motor
|
y200l-4
|
Power of mixing motor
|
2*37
|
Weight
|
7500kg
|
Packing & Delivery
JS series concrete mixer is double horizontal spindle forced mixer. It can work alone, or combined with PLD series batching machine to work as simplified concrete plant, or supply the main machine for the mixing plant. It can be applied in large , medium-sized, and small component factories and roads, bridges and water conservancy, ports and other industrial or civil constructions. It can be used to mix dry concrete, plastic concrete,fluidity concrete. It is a high efficient machine with extensive applications.
model
|
working period
|
output/hour
|
driving power
|
number of vines
|
JS2000
|
60
|
>120
|
2*37
|
18
|
JS750II
|
52
|
>45
|
1*30
|
18
|
JS500II
|
52
|
>25
|
1*18.5
|
18
|
