Quick Details
-
Drilling Speed:
-
2
-
Place of Origin:
-
tengzhou
-
Brand Name:
-
huashuo
-
Model Number:
-
3040, Z3040*13
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1500*800*2100
-
Power (kW):
-
2.2
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
Hot Product 2022, Hot Product 2022
-
Machine type:
-
Mechanical Radial Drilling Machine
Quick Details
-
type:
-
EDM Drilling Machine
-
Max. Drilling Dia. (mm):
-
40mm
-
Range of Spindle Speed(r.p.m):
-
35 - 1200 r.p.m
-
Drilling Speed:
-
2
-
Place of Origin:
-
tengzhou
-
Brand Name:
-
huashuo
-
Model Number:
-
3040, Z3040*13
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1500*800*2100
-
Power (kW):
-
2.2
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
Hot Product 2022, Hot Product 2022
-
Machine type:
-
Mechanical Radial Drilling Machine
Detailed technical parameters

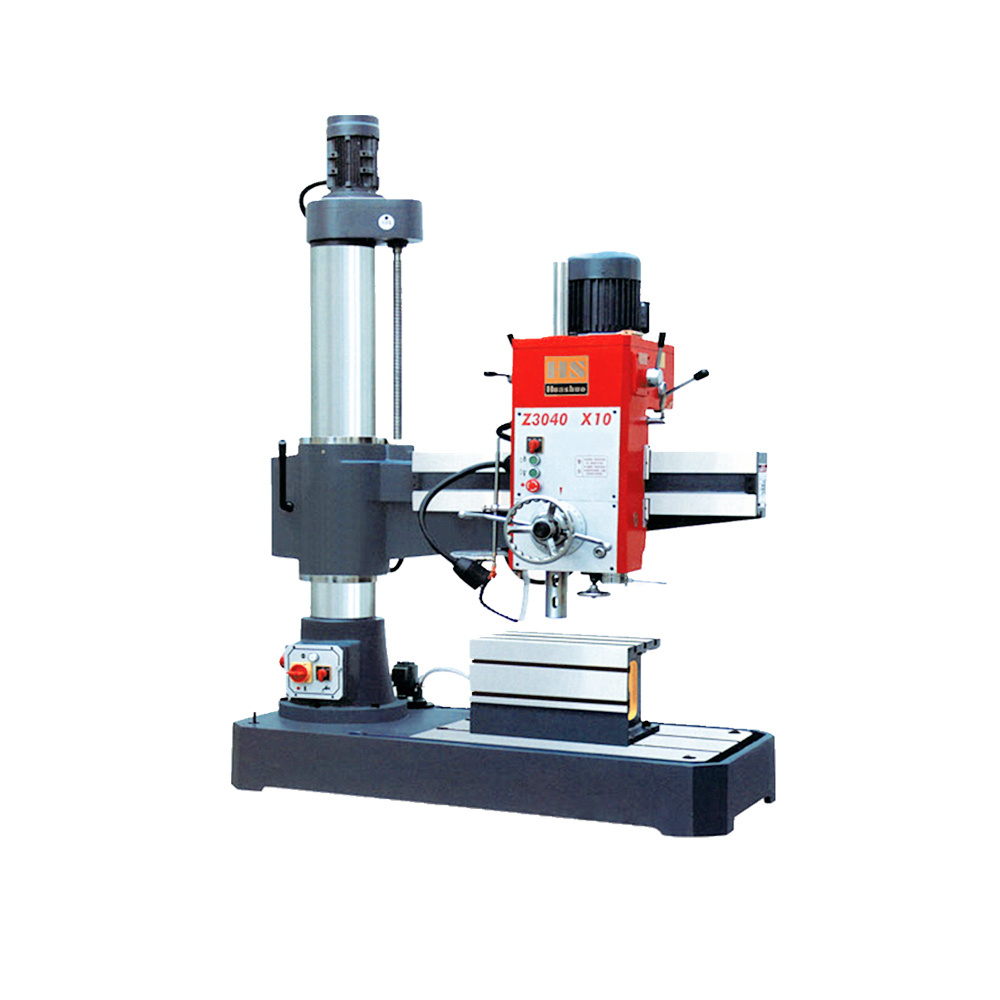

Z3040 × 10 main technical parameters
|
Maxdrilling dia
|
mm
|
cast iron40 steels32
|
|
Distance from spindle nose to table surface
|
mm
|
140-1210
|
|
Distance from spindle nose to table surface
|
mm
|
360- 1300
|
|
Spindle trave
|
mm
|
220
|
|
Spindle Cone
|
|
4
|
|
Spindle speeds range
|
r.p.m
|
75-1280
|
|
Spindle speed
|
Step
|
6
|
|
Spindle feeding range
|
r.p.m
|
0.10-0.25
|
|
Spindle feeding
|
Step
|
3
|
|
Rocker rotary angle
|
°
|
360
|
|
Main motor power
|
KW
|
2.2
|
|
Movements motor power
|
KW
|
1.1
|
|
N.W/G.W
|
KG
|
1300
|
|
Overall dimensions
|
mm
|
1800x810x2300
|
Features: automatic feed, automatic lifting, mechanical transmission, mechanical locking Supplied Accessories 1. Retract wedges
adjustable sets a 4. # 4 / # 3 2. 2.3-13 drill chuck a table (already installed on the device) 3. The drill chuck connecting rod
6. Using a manual, a certificate
Factory standard of our products (video)
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A:
We specialize in the production of CNC machine tools of various types of machining centers
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
