small rock crusher mobile crusher for sale
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1800 KG
-
Keyword:
-
used stone crushers for sale
-
Max feeding size:
-
210mm
-
Discharge size:
-
5-40mm
-
Model Number:
-
200*300
-
Motor:
-
11kw or diesel motor
-
Usage:
-
Combined Crushing
-
Feeding type:
-
Vibrating feeded
-
Classification:
-
Vibrating Screen
-
Applicaton:
-
rock, quarry, concrete, construction, mining, stone crusher plant
Quick Details
-
Application:
-
Stone Crusher
-
Capacity(t/h):
-
5-20TPH
-
Place of Origin:
-
China
-
Weight:
-
1800 KG
-
Keyword:
-
used stone crushers for sale
-
Max feeding size:
-
210mm
-
Discharge size:
-
5-40mm
-
Model Number:
-
200*300
-
Motor:
-
11kw or diesel motor
-
Usage:
-
Combined Crushing
-
Feeding type:
-
Vibrating feeded
-
Classification:
-
Vibrating Screen
-
Applicaton:
-
rock, quarry, concrete, construction, mining, stone crusher plant
Products Description

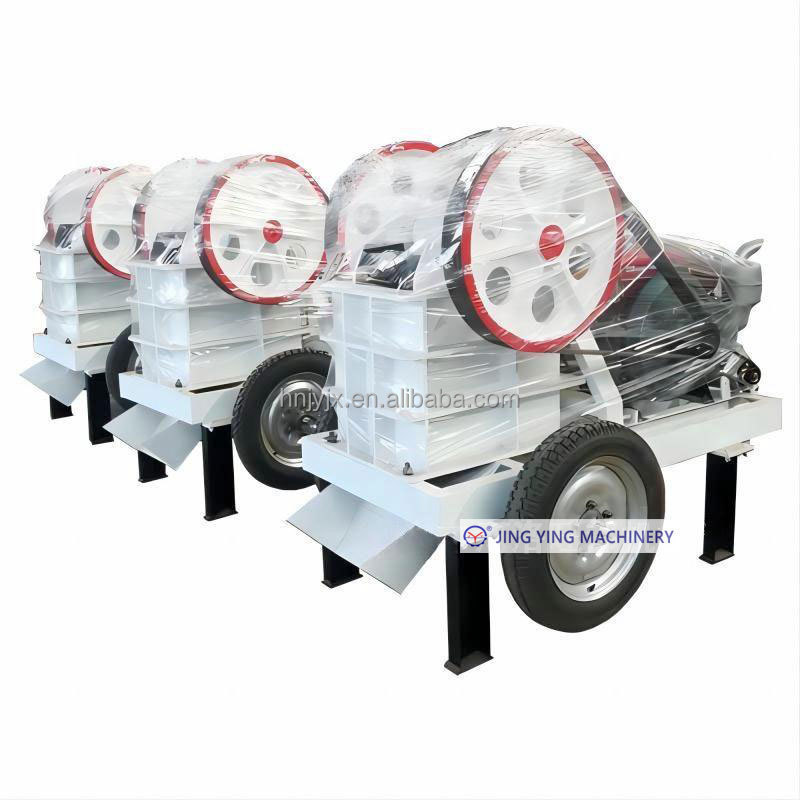

Mobile Jaw Crusher
Diesel mobile jaw crusher is widely used for crushing various materials like quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
Jaw stone crusher is widely used in mining, metallurgy, construction, highway, railway, water conservancy, chemical engineering industry, etc., it can crush all kinds of materials with compressive strength less than 320 MPa, such as
quartz, granite, basalt, marble, calcite, dolomite, limestone, gypsum, pebble, bluestone, feldspar, glass, cement clinker,
concrete, coal gangue, construction waste, copper, manganese, gold ore, iron ore, lithium ore, etc.
Jingying Machinery is the factory for stone crusher rock crusher producing for over 30 years, have many kinds of crushers in stock.
quartz, granite, basalt, marble, calcite, dolomite, limestone, gypsum, pebble, bluestone, feldspar, glass, cement clinker,
concrete, coal gangue, construction waste, copper, manganese, gold ore, iron ore, lithium ore, etc.
Jingying Machinery is the factory for stone crusher rock crusher producing for over 30 years, have many kinds of crushers in stock.
Product Parameter
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher.
Jingying Machinery manufactures coarse jaw crusher (PE series) and fine jaw crusher
(PEX series)
in stationary type or mobile type.
|
Model
|
Feed opening size (mm)
|
Max. feeding
Size (mm)
|
Adjustable range of
output size (mm)
|
Capacity
(t/h)
|
Motor power (kw)
|
Weight
(t)
|
|
PE-150×250
|
200×300
|
125
|
15-45
|
1-5
|
5.5
|
1
|
|
PE-200×300
|
200×300
|
180
|
20-50
|
3-13
|
11
|
1.5
|
|
PE-250×400
|
250×400
|
210
|
20-60
|
5-22
|
15
|
2.8
|
|
PE-300×500
|
300×500
|
290
|
20-80
|
15-40
|
18.5
|
3.5
|
|
PE-400×600
|
400×600
|
340
|
40-100
|
18-64
|
30
|
6.8
|
|
PE-500×750
|
500×750
|
425
|
50-100
|
43-102
|
55
|
13.5
|
|
PE-600×900
|
600×900
|
500
|
65-180
|
51-145
|
75
|
19.2
|
|
PE-750×1060
|
750×1060
|
630
|
80-180
|
122-223
|
110
|
29
|
|
PE-900×1200
|
900×1200
|
780
|
95-180
|
285-430
|
132
|
45
|
|
PE-1200×1500
|
1200×1500
|
1020
|
150-300
|
400-800
|
160
|
99
|
|
PEX-100×600
|
100×600
|
80
|
10-40
|
1-8
|
7.5
|
0.9
|
|
PEX-200×600
|
200×600
|
170
|
10-40
|
5-15
|
11
|
1.5
|
|
PEX-150×750
|
150×750
|
120
|
10-40
|
6-20
|
15
|
2.8
|
|
PEX-250×750
|
250×750
|
210
|
15-50
|
15-40
|
22-30
|
5.5
|
|
PEX-250×1000
|
250×1000
|
210
|
15-50
|
20-50
|
30-37
|
6.5
|
|
PEX-250×1200
|
250×1200
|
210
|
15-50
|
25-70
|
37-45
|
8.5
|
|
PEX-300×1300
|
300×1300
|
250
|
15-60
|
45-110
|
75
|
12
|
Product Structure
1. It is set on a frame with wheels that can be moved easily, making it flexible.
2. With its compact structure, simple operation, and high crushing ratio, it is very popular among small mining plants worldwide.
3. With Mn plates, strong supporting legs and wearable wheels, it has a long life and helps save on maintenance costs.
2. With its compact structure, simple operation, and high crushing ratio, it is very popular among small mining plants worldwide.
3. With Mn plates, strong supporting legs and wearable wheels, it has a long life and helps save on maintenance costs.
Product Features
Fixed jaw crusher
Fixed jaw crusher, also called stationary jaw crusher, is widely used in primary crushing for the purpose of crushing bulk and large-sized material into a smaller shape for secondary crushing jaw crusher.
We supply steel base jaw crusher for your line
Mobile jaw crusher
The fixed jaw crusher can be also installed on the mobile crushing plant, and then it is called mobile jaw crusher and helpful to such as underground mining and mobile crushing applications.
No concrete base jaw crusher plant, mobile stone crusher station
We can customize mobile jaw crushers of different specifications according to customer needs.
Customer Site
For Stone Crushers, Contact Us
