Quick Details
-
Max. Wheel Weight:
-
75 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAHUI
-
Model Number:
-
YH-96A
-
Warranty:
-
12 Months
-
Product name:
-

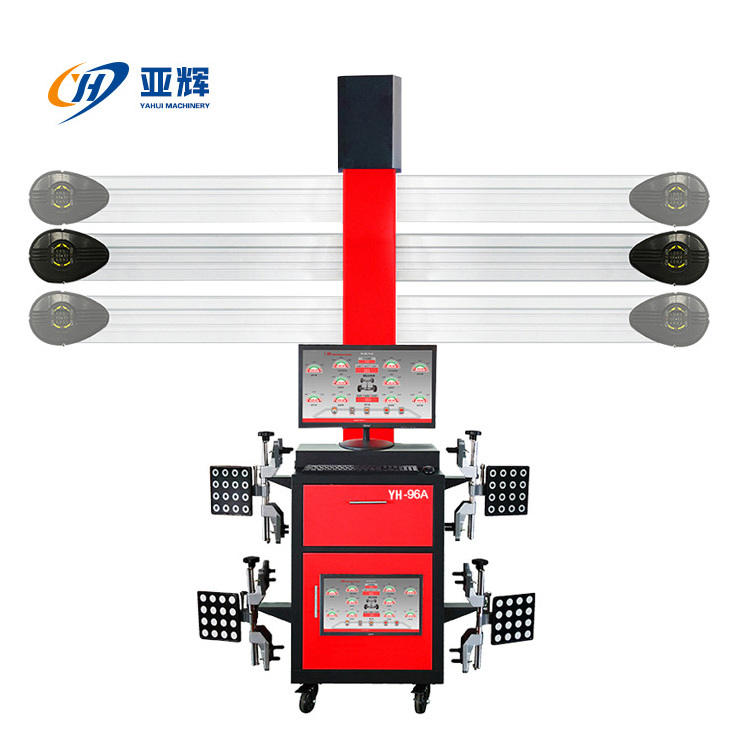

Hot Sale Car Wheel Alignment Stand Machine In Germany
-
Application:
-
Tire Workshop
-
Function:
-
Wheel Angles
-
Language:
-
Global Multi-language
-
Software:
-
Independent
-
Certification:
-
CE ISO
-
Feature:
-
3D Dynamic Simulation
-
Turntable:
-
Included
-
Vehicle database:
-
Updated promptly
-
Package:
-
Plywooden Box
Quick Details
-
Power:
-
0.25kw
-
Power Supply:
-
220V/110V/380V
-
Balancing Speed:
-
220RPM
-
Max. Wheel Weight:
-
75 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAHUI
-
Model Number:
-
YH-96A
-
Warranty:
-
12 Months
-
Product name:
-
Hot Sale Car Wheel Alignment Stand Machine In Germany
-
Application:
-
Tire Workshop
-
Function:
-
Wheel Angles
-
Language:
-
Global Multi-language
-
Software:
-
Independent
-
Certification:
-
CE ISO
-
Feature:
-
3D Dynamic Simulation
-
Turntable:
-
Included
-
Vehicle database:
-
Updated promptly
-
Package:
-
Plywooden Box
Products Description
1.
Even if the rim, wheel clamp, and target axis are deformed, only one push measurement is needed to complete all the data compensation to obtain the most realistic wheel alignment parameters.
2.
Apply the dual-coordinate calibration, which is more close to the actual wheel position than single-coordinate calibration scheme, less deviation and more accurate data.
3. Apply 5.0 mega pixels high definition SONY cameras, five times higher than the industry average (1.3 mega pixels). Higher-pixel cameras capture more clear images, more accurate data, and support smaller targets.
4. Leading in intelligent lift technology (since 2008). Measure at the low position and adjust the vehicle at the high position. Reduce the safety risks of using high position to do push measurement and kingpin measurement.
5. The control system can automatically adjust the height of the crossbeam according to the length of the vehicle wheelbase,avoiding the target appearing at the edge of the camera, ensuring the accuracy of the measurement data and reducing measurement deviation.
6. Adapt to different models for wheel alignment and intelligently adjust crossbeam height.
7. Support a variety of car lifts, such as two post car lift, small scissors lift, saving space.
Please consult the product manager for more product functions and introductions!
3. Apply 5.0 mega pixels high definition SONY cameras, five times higher than the industry average (1.3 mega pixels). Higher-pixel cameras capture more clear images, more accurate data, and support smaller targets.
4. Leading in intelligent lift technology (since 2008). Measure at the low position and adjust the vehicle at the high position. Reduce the safety risks of using high position to do push measurement and kingpin measurement.
5. The control system can automatically adjust the height of the crossbeam according to the length of the vehicle wheelbase,avoiding the target appearing at the edge of the camera, ensuring the accuracy of the measurement data and reducing measurement deviation.
6. Adapt to different models for wheel alignment and intelligently adjust crossbeam height.
7. Support a variety of car lifts, such as two post car lift, small scissors lift, saving space.
Please consult the product manager for more product functions and introductions!
Product Paramenters
|
MEASUREMENT ITEMS
|
MEASUREMENT ACCURACY
|
MEASUREMENT RANGE
|
|
TOTAL TOE-IN
|
±0.01°
|
±40°
|
|
EXTERNAL BEVEL
|
±0.01°
|
±45°
|
|
CASTER
|
±0.02°
|
±45°
|
|
S.A.I
|
±0.02°
|
±45°
|
|
THRUST ANGLE
|
±0.01°
|
±40°
|
|
SET BACK
|
±0.01°
|
±40°
|
|
MAX. STEERING ANGLE
|
±0.02°
|
±50°
|
|
WHEEL TRACK
|
±2MM
|
1219MM-2438MM
|
|
WHEEL BASE
|
±2MM
|
2006MM-4572MM
|
