- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GFQ400*4
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
5500x1100x1700mm
-
Weight:
-
2000 KG, 2000kg
-
Max Speed:
-
400pcs/min
-
width of bag:
-
700mm
-
Length of bag:
-
10-900mm
-
Output:
-
400pcs/min
-
Machine type:
-
heat sealing cold cutting
-
Dimensions (LxWxH):
-
5500x1100x1700mm
-
Product name:
-
plastic bag maker machine
-
Name:
-
nylon bag making machine
-
Application:
-
bag Making Machine
Quick Details
-
Machine Type:
-
Cutting Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GFQ400*4
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
5500x1100x1700mm
-
Weight:
-
2000 KG, 2000kg
-
Max Speed:
-
400pcs/min
-
width of bag:
-
700mm
-
Length of bag:
-
10-900mm
-
Output:
-
400pcs/min
-
Machine type:
-
heat sealing cold cutting
-
Dimensions (LxWxH):
-
5500x1100x1700mm
-
Product name:
-
plastic bag maker machine
-
Name:
-
nylon bag making machine
-
Application:
-
bag Making Machine
plastic bags production line nylon biodegradable polythene poly carry shopping tshirt bag making machine
Products Description
Usage and features:
It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save
more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length
more accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
What you need to know about purchasing bag making machine:
1. Types of bags you make (vest bag, flat bag, square bottom bag, rolled bag, garbage bag, etc.)
2. Maximum and minimum size of bags(width and length)
3. Is the bag printed?
4. Picture of bag
In this way, we can quote you better and offer suggestions for you
It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save
more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length
more accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
What you need to know about purchasing bag making machine:
1. Types of bags you make (vest bag, flat bag, square bottom bag, rolled bag, garbage bag, etc.)
2. Maximum and minimum size of bags(width and length)
3. Is the bag printed?
4. Picture of bag
In this way, we can quote you better and offer suggestions for you
|
Model
|
GFQ400*4
|
|
Width of bag
|
350mm*4/800mm*2
|
|
Length of bag
|
10-900mm
|
|
Thickness of the film
|
0.001—0.20mm
|
|
Output
|
20-400pcs/min
|
|
Making the number of articles
|
4(lines)
|
|
Motor power
|
3kw
|
|
workbench(mm)
|
3000mm
|
|
unwinding Photoelectric eyes
|
china
|
|
Bronze knife
|
Highly pure brass
|
|
Cutter unit
|
Alloy steel
|
|
Electrical parts:
|
|
|
PLC Computer controller
|
China wuxi
|
|
Intelligent Temperature Controller
|
china
|
|
Electric eye color tracking
|
china
|
|
Weight
|
≈2000kg
|
|
Dimensions (L×W×H)
|
5500×1100×1700mm
|
|
Parts Name
|
From
|
|
Main Motor
|
CHINA
|
|
Inverter
|
CHINA
|
|
Computer
|
CHINA
|
|
Transformer
|
CHINA
|
Details Images

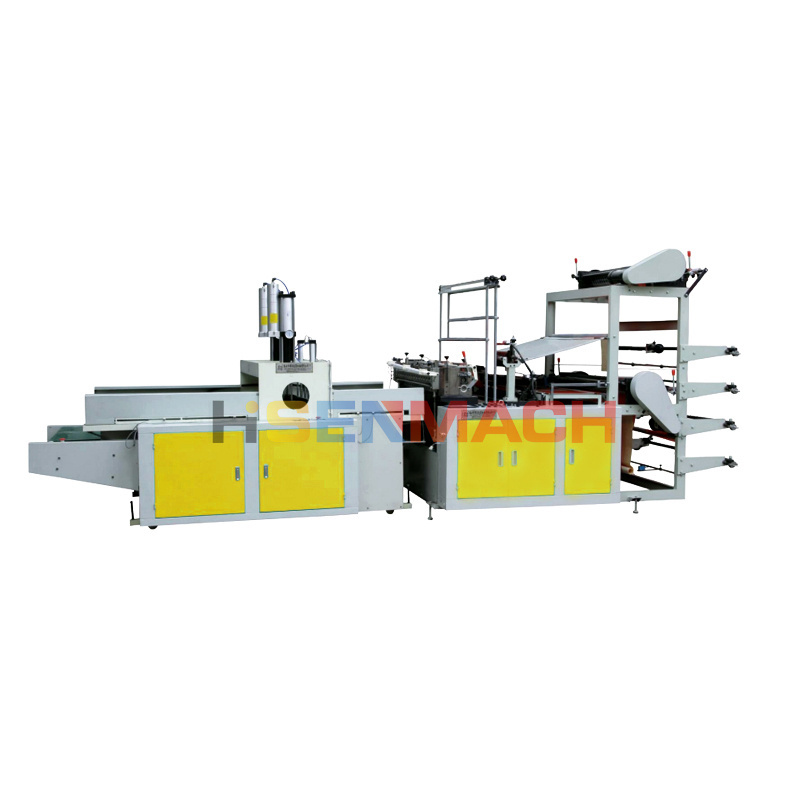

Machine can make two type of bag: shopping bag and flat bag
speed is 400pcs/min
automatic punching makes
the operation easier
