Quick Details
-
Output Speed:
-
0.5rpm-30rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
5 KG
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HPR
-
Brand:
-
HPS
-
Product name:
-
High precision Planetary Speed Reducer
-
Size:
-
90mm Flange
-
Mounting Position:
-
Stepper motor and Servo motor
-
Ratio:
-
4/5/7/10/16/20/25/28/30/35/40/50/70
-
Backlash:
-
≤ 15 Arcmin
-
Delivery Time::
-
Depends on order quantity
-
Material of Shaft:
-
As required
-
Certification:
-
CE ISO9001
-
Product Keywords:
-
Low Backlash & Efficiency
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
≤ 100 N.m
-
Input Speed:
-
≤ 6000rpm
-
Output Speed:
-
0.5rpm-30rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
5 KG
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HPR
-
Brand:
-
HPS
-
Product name:
-
High precision Planetary Speed Reducer
-
Size:
-
90mm Flange
-
Mounting Position:
-
Stepper motor and Servo motor
-
Ratio:
-
4/5/7/10/16/20/25/28/30/35/40/50/70
-
Backlash:
-
≤ 15 Arcmin
-
Delivery Time::
-
Depends on order quantity
-
Material of Shaft:
-
As required
-
Certification:
-
CE ISO9001
-
Product Keywords:
-
Low Backlash & Efficiency

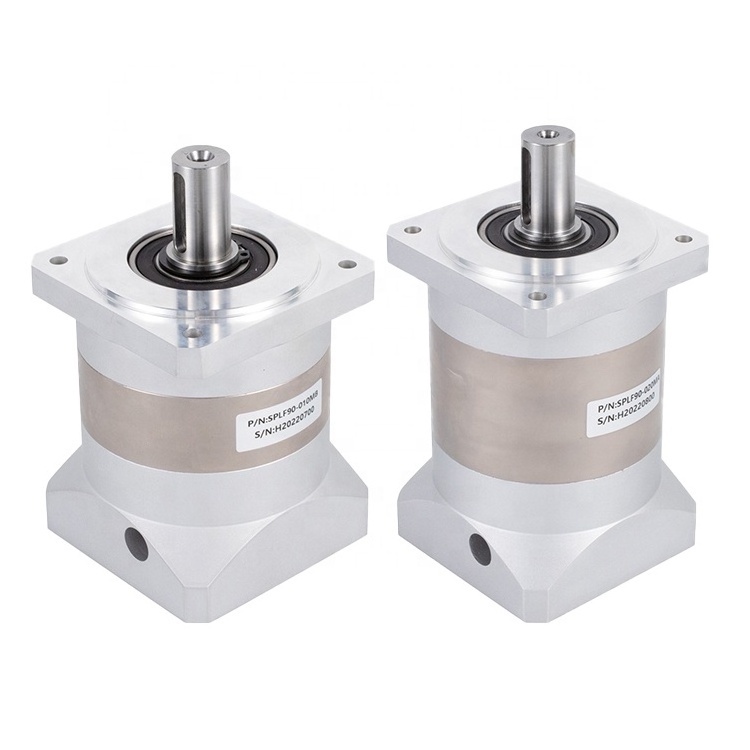

Product Overview
Output Shaft and The Front Flange
Input Shaft and The End Cover
PRODUCT SPECIFICATIONS
|
SPECIFICATIONS
|
STAGE
|
RATIO
|
RATED TORQUE (N.m)
|
||
|
HPS90 Planetary Gearbox
|
L1
|
4
|
80
|
||
|
|
|
5
|
90
|
||
|
|
|
7
|
60
|
||
|
|
|
10
|
39
|
||
|
|
L2
|
16
|
90
|
||
|
|
|
20
|
90
|
||
|
|
|
25
|
100
|
||
|
|
|
28
|
90
|
||
|
|
|
30
|
100
|
||
|
|
|
35
|
90
|
||
|
|
|
40
|
100
|
||
|
|
|
50
|
100
|
||
|
|
|
70
|
70
|
||
|
Rated Input Speed (rpm)
|
3000
|
|
|
||
|
Max Input Speed (rpm)
|
6000
|
|
|
||
|
Backlash
|
L1
|
≤ 10Arcmin
|
|
||
|
|
L2
|
≤ 15Arcmin
|
|
||
|
Fault stop torque(N.m)
|
2 times of rated torque
|
|
|
||
|
Efficiency
|
L1
|
96%
|
|
||
|
|
L2
|
94%
|
|
||
|
Average life span
|
20000h
|
|
|
||
|
Operating temperature
|
-10°~+150°
|
|
|
||
|
Nosie
|
≤55 db
|
|
|
||
|
IP
|
54
|
|
|
||
|
Installation method
|
Any installation method
|
|
|
||
Application Field
SIMILAR PRODUCTS
Why Choose Us
Standard production and Strict testing process
CERTIFICATIONS
Package Type:
Standard export packing & Wood pallets packing
