- Product Details
- {{item.text}}
Quick Details
-
Alloy:
-
Tungsten Carbide
-
Part No.:
-
KAT
-
Color:
-
Gray, Yellow or Per Your Request
-
MOQ:
-
1PCS
-
Packing:
-
Standard
-
Usage:
-
Augers/Drilling Buckets
-
Application:
-
Piling/Foundation Drilling
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
YIJUE
-
Material:
-
42CrMo
-
Alloy:
-
Tungsten Carbide
-
Part No.:
-
KAT
-
Color:
-
Gray, Yellow or Per Your Request
-
MOQ:
-
1PCS
-
Packing:
-
Standard
-
Usage:
-
Augers/Drilling Buckets
-
Application:
-
Piling/Foundation Drilling
-
Certification:
-
ISO9001
Product Description

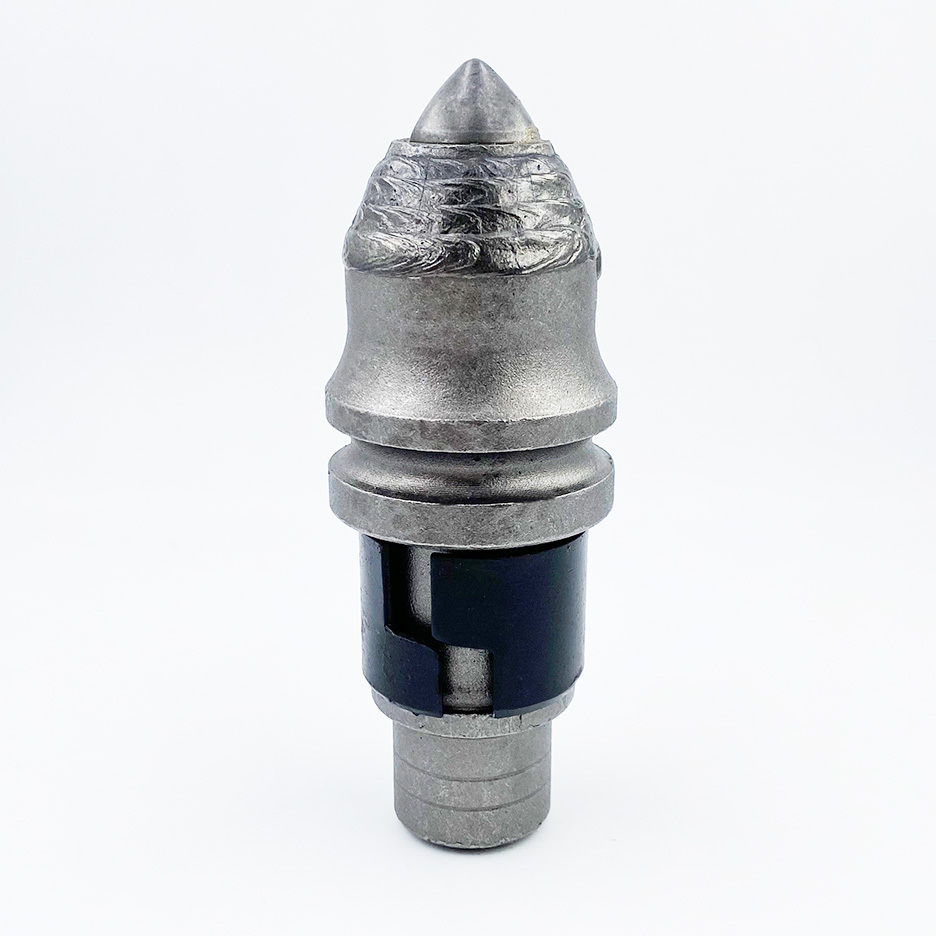

Bullet teeth (Foundation Drilling cutting tools, Round Shank cutter bit, Round shank chisel) are used as ripping teeth on augers,drilling buckets and core barrels for foundation drilling, solid wall, water well drilling, trenching, mining and tunneling.
carbide steel Body, made by material ASTM4142 or 42CrMo,heat treatment with 40-44HRC hardness, has high toughness and wearable character.Tip with above 50 HRC hardness is made from low press sintered,and suitable grade tungsten carbide according to the Target Projects,to make sure high performance during works.
carbide steel Body, made by material ASTM4142 or 42CrMo,heat treatment with 40-44HRC hardness, has high toughness and wearable character.Tip with above 50 HRC hardness is made from low press sintered,and suitable grade tungsten carbide according to the Target Projects,to make sure high performance during works.
Superiority:
1.Super coarse particles of Alloy,Good Wearproof;
2.Selecion of high strength alloy steel after heat treatment;
3.Superhard wear resistance layer around alloy and Eight Alloystrip;The service life is 2~3 times of the ordinary Product;
Applicable Layers:
Highly Weathered rock,Silt,Limestone.
Intensity range:500Kpa~1000Kpa.
Specification
|
Code
|
KAT
|
|
Parameter
|
120/130/50-8
|
|
Alloy HRA
|
86-87
|
|
Embryoid HRA
|
45-55
|
|
Item No.
|
Material
|
Weight
|
Cutting Rock Type Examples
|
Intensity range
|
|
2K
|
Tungsten Cobalt Carbide
|
1.15kg
|
strongly weathered limestone, strongly weathered dolomite,
dense sandstone and strongly weathered silicified limestone, etc. |
600Kpa ~ 20Mpa
|
|
KRA
|
Tungsten Cobalt Carbide
|
1.2kg
|
mudstone, sandstone, etc.
|
<30MPa
|
|
8TA
|
Tungsten Cobalt Carbide
|
1.22kg
|
high-density sandstone, mudstone, etc.
|
800Kpa~5Mpa
|
|
12T
|
Tungsten Cobalt Carbide
|
1.2kg
|
high-density sandstone, mid-weathered granite, etc.
|
2000Kpa~10Mpa
|
|
Item No.
|
Material
|
Weight
|
Cutting Rock Type Examples
|
Intensity range
|
|
3055-6L
|
Tungsten Cobalt Carbide
|
1.2kg
|
dense sandstone, pebbles, red sandstone and large particle boulders, etc.
|
800Kpa ~1000Kpa
|
|
9N
|
Tungsten Cobalt Carbide
|
1.3kg
|
high-density sandstone, samll pepple, mid-weathered granite, mid-weathered limestone, etc.
|
2000Kpa~40Mpa
|
|
TR2
|
Tungsten Cobalt Carbide
|
1.4kg
|
dense sandstone, moderately weathered granite, moderately weathered silicified limestone and weakly weathered quartzite
|
2000Kpa~20Mpa
|
|
ST2
|
Tungsten Cobalt Carbide
|
1.4kg
|
weakly weathered granite, marble, weakly weathered silicified limestone, silicified sandstone, basalt, etc.
|
20MPa~50Mpa
|
Production line
Packing & Delivery
Application photos
Company information
Wuhan yijue tengda machinery co., LTD. specializes in manufacturing and developing Foundation Drilling bits and Rock drilling Teeth since 2009. We have sales and production employees more than 200. our headquarter is located in 3rd buildings of desiyuan industrial park, dongxihu district, wuhan city. We have 8 branch companies in China, which are located in wuhan, hefei, guiyang, foshan, shenzhen, kunming, chongqing, xiamen province,
our main products are drilling bits, roller cone bits, rock cutting teeth, flat teeth, drilling, etc. Our products exports to North America, Russia, the Middle east, the Southeast Asia, Australia etc.
Exhibition
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you
competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you
competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to
quantity.
