Quick Details
-
Name:
-

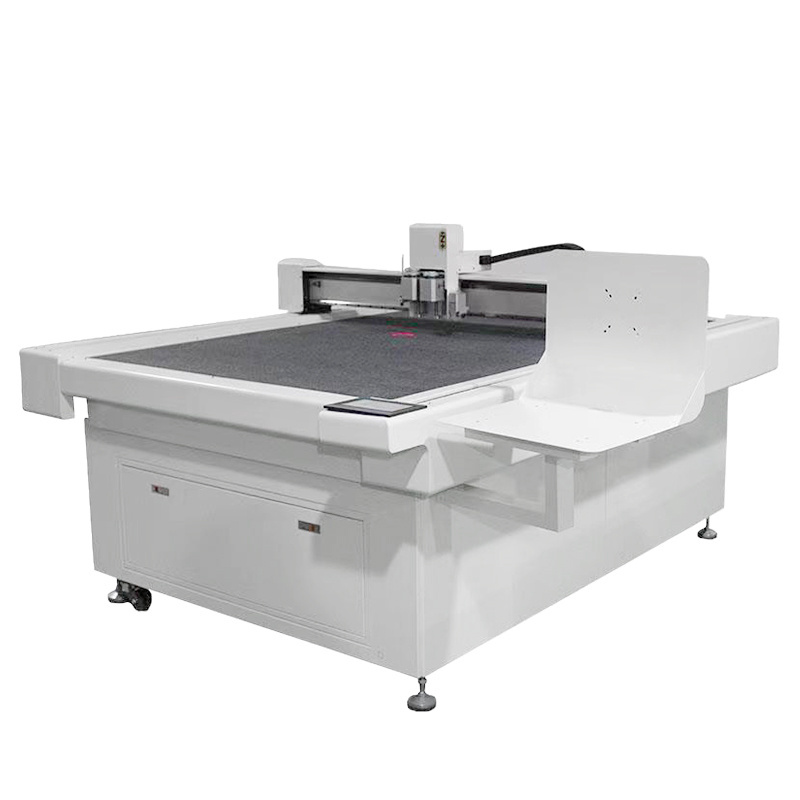

Gasket Maker Gasket Cutter Rubber Gasket Cutting Machine
-
Cutting Materials:
-
Rubber Gasket Cutting
-
Type:
-
Knife Cutting Machine
-
Function:
-
Cutting Nonmetal Materials
-
Color:
-
White
-
Working area:
-
1600mmX2500mm
-
Cutting speed:
-
1mm/s ~ 1000mm /s
-
Cutting size:
-
1200 x 1200mm
-
Cutting thickness:
-
Knife cutting 0.1mm ~ 30mm, crushing thickness up to 15mm
-
Welding:
-
Seamless welding
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WT
-
Weight (KG):
-
1100
-
Name:
-
Gasket Maker Gasket Cutter Rubber Gasket Cutting Machine
-
Cutting Materials:
-
Rubber Gasket Cutting
-
Type:
-
Knife Cutting Machine
-
Function:
-
Cutting Nonmetal Materials
-
Color:
-
White
-
Working area:
-
1600mmX2500mm
-
Cutting speed:
-
1mm/s ~ 1000mm /s
-
Cutting size:
-
1200 x 1200mm
-
Cutting thickness:
-
Knife cutting 0.1mm ~ 30mm, crushing thickness up to 15mm
-
Welding:
-
Seamless welding
Products Description
Digital Flatbed Foam Rubber Ptfe Cnc Gasket Cutting Oscillatory Knife Cutting Machine
1.
Multifunctional heads optonal
Vibration knife (oscillatory knife)、Circular knife (round knife / rotary knife)、Oblique knife (V-cut)、Marking pen、Punching roller (round punching/v-punching/optional)、Milling knife 、Drag knife、Penumatic knife、Projector and camera optional
2.Cutting material
Honeycomb paperboard, corrugated paper, plastic corrugated paper, gray board paper, cardboard, stickers, film, fiber composite materials, artificial leather, cloth, PU, rubber sheet, gasket, pearl cotton, fiberboard and other materials
Product Paramenters
|
Technical Parameters
|
|
|
|
Model
|
WT-C1212
|
|
|
Cutting size
|
1200x 1200mm
|
|
|
Dimension
|
2400x 1880 x 1300mm
|
|
|
Digital Control Panel
|
7"Touch display control penal
|
|
|
Cutting speed (2)
|
1mm/s ~ 1000mm/s
|
|
|
Cutting thickness (2)
|
Knife cutting 0.1mm ~ 30mm, crushing thickness up to 15mm
|
|
|
Cutting accuracy
|
±0.2mm,
|
|
|
Repeated cutting accuracy
|
≤0.1 mm
|
|
|
Minimum cut circle diameter
|
≥3mm(related to materials)
|
|
|
Control System
|
9-axis independent motion controller (5-axis linkage) + multi-execution instant embedded control system
|
|
|
Drive System
|
Digital Servo
|
|
|
Transmission
|
Taiwan YYC rack and pinion, PMI linear guide, TBI ball screw pair
|
|
|
Towline cable
|
IGUS, Germany
|
|
|
Pneumatic components
|
AIRTAC
|
|
|
Sensor component
|
Baumer, Swiss
|
|
|
Machine material
|
43.5mm Honeycomb aluminum plate
|
|
|
Cutting table mat
|
4mm High ventilated fiber mat (3)
|
|
|
Number of pens
|
2 groups, crease ,Cutting knife (maximum depth can be cut 3mm)
|
|
|
Position Registration
|
Cross red light (optional visual positioning system)
|
|
|
Command system
|
HP-GL compatible format, software resolution: 0.025, 0.01, 0.1,1
|
|
|
Transmission interface
|
RJ45 network port, one-to-many and many-to-one communication, the maximum transmission distance is 100 meters
|
|
|
Working voltage/ frequency
|
AC 220V±10% 50/60±1HzPower ; MAX_ 2.5KW (requires D-type 16A socket, GB 2.5 mm2 wire)
|
|
